Turnkey Power Cable
Production Line
Production Line
A configurable route for conductor stranding, core laying-up, taping,
armoring, sheathing and final cable handling.
View Morearmoring, sheathing and final cable handling.

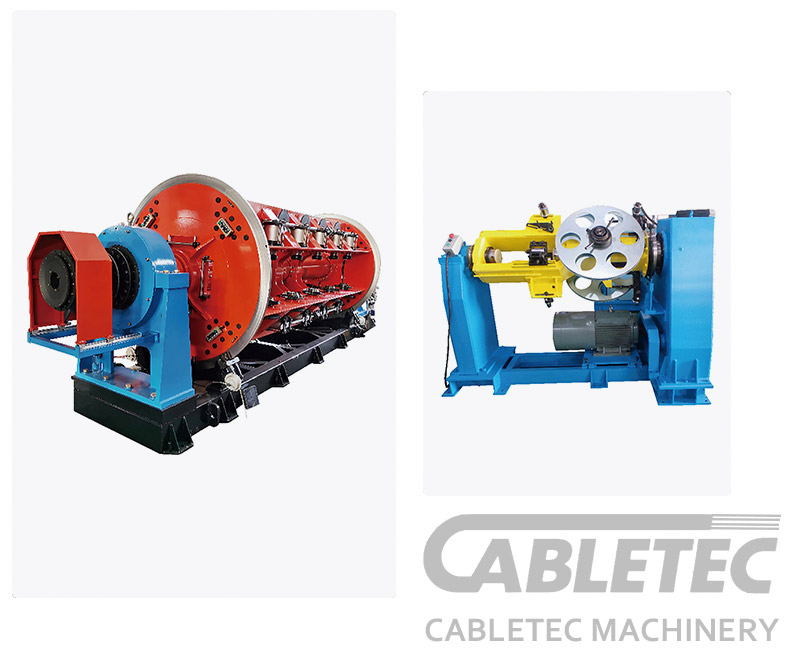

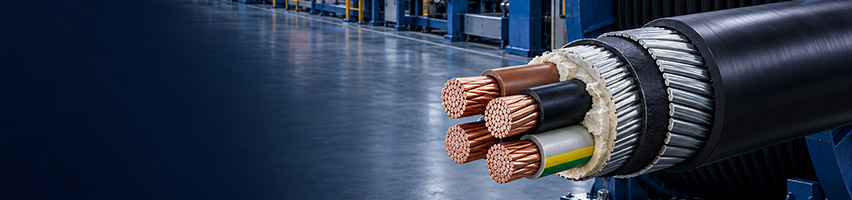

Why Power Cable?
Power-cable construction varies by rated voltage, conductor material, number of cores, insulation system, screen, bedding, armor and outer sheath. Correct line planning therefore begins with the cable drawing and the applicable product standard.
Cabletec's catalog supports major conductor-making, laying-up, taping, armoring, sheathing and handling stages. Dedicated medium- or high-voltage insulation systems are not assumed here and must be reviewed separately when required.
Production Process
Copper / Aluminum Rod
Wire Drawing

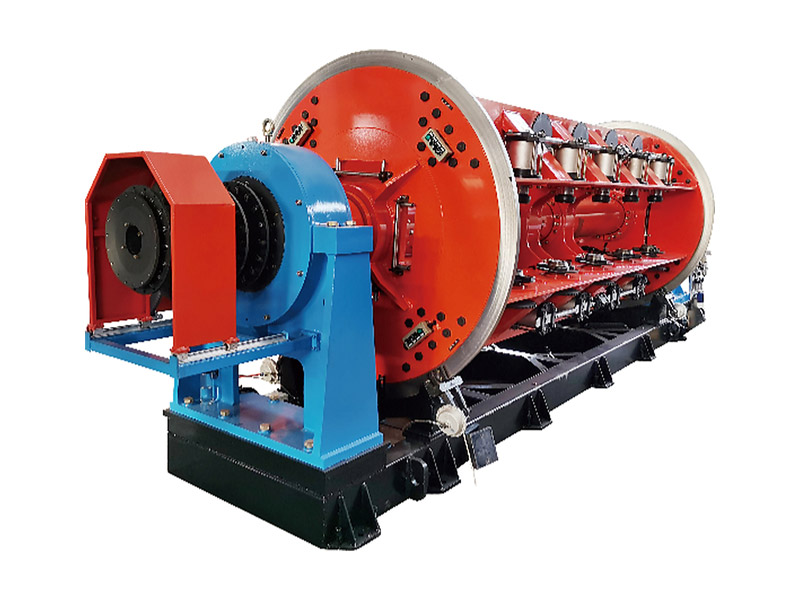

Conductor Stranding
Insulation System
Core Laying-up
Taping / Screening

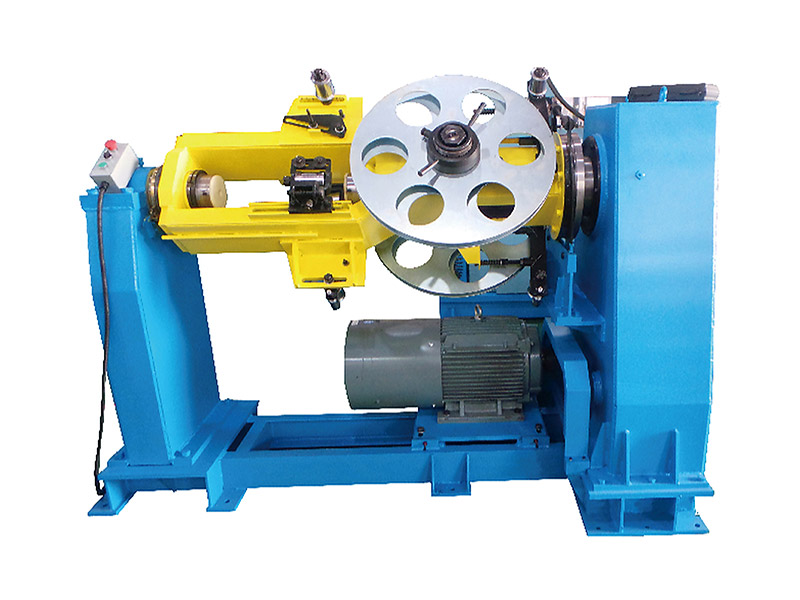

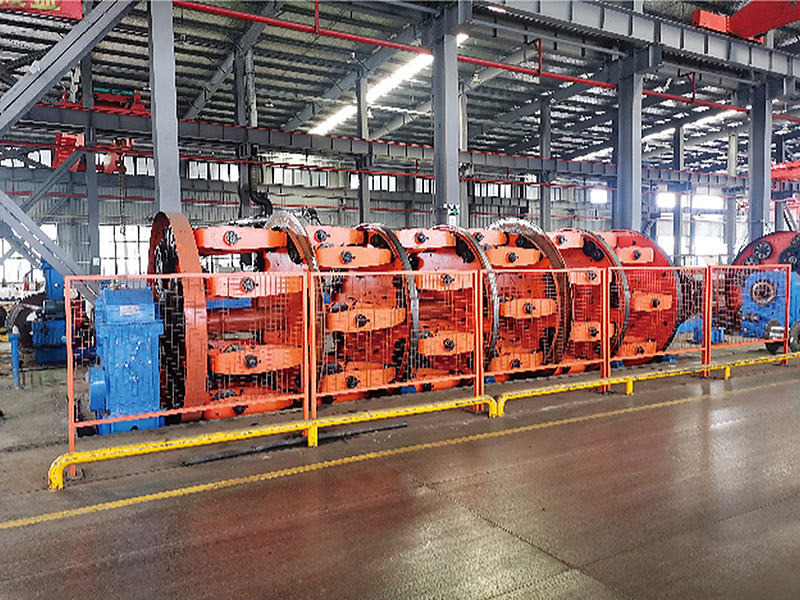

Armoring (optional)

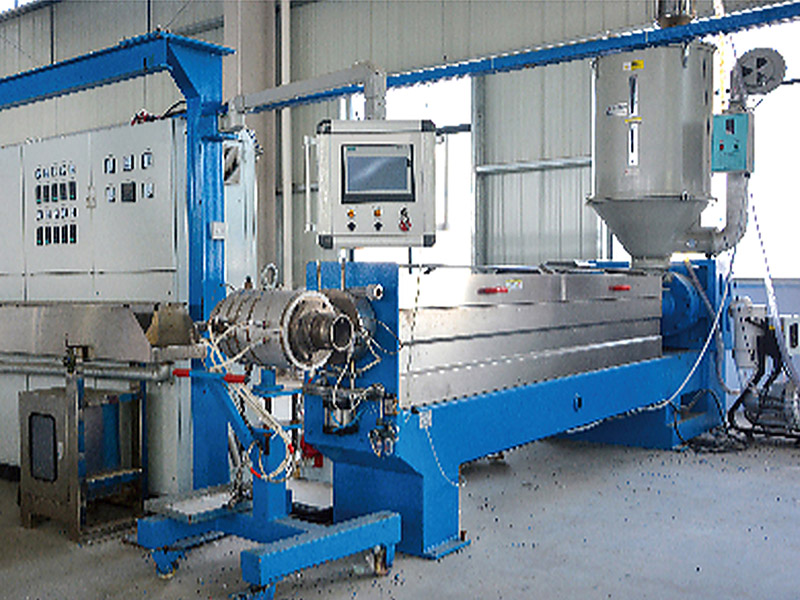

Outer Sheathing

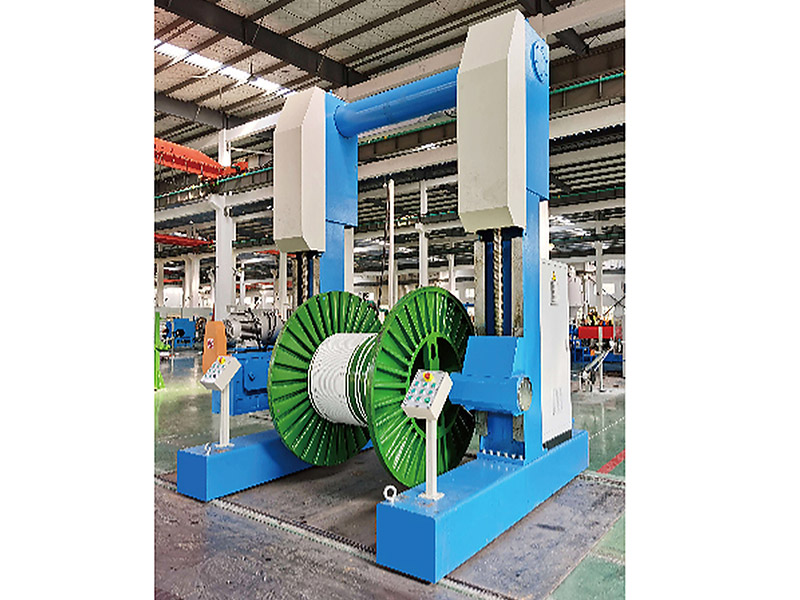

Final Take-up & Test
Voltage grade and insulation technology must be confirmed before quotation; this page does not claim a dedicated MV/HV/EHV CV line.

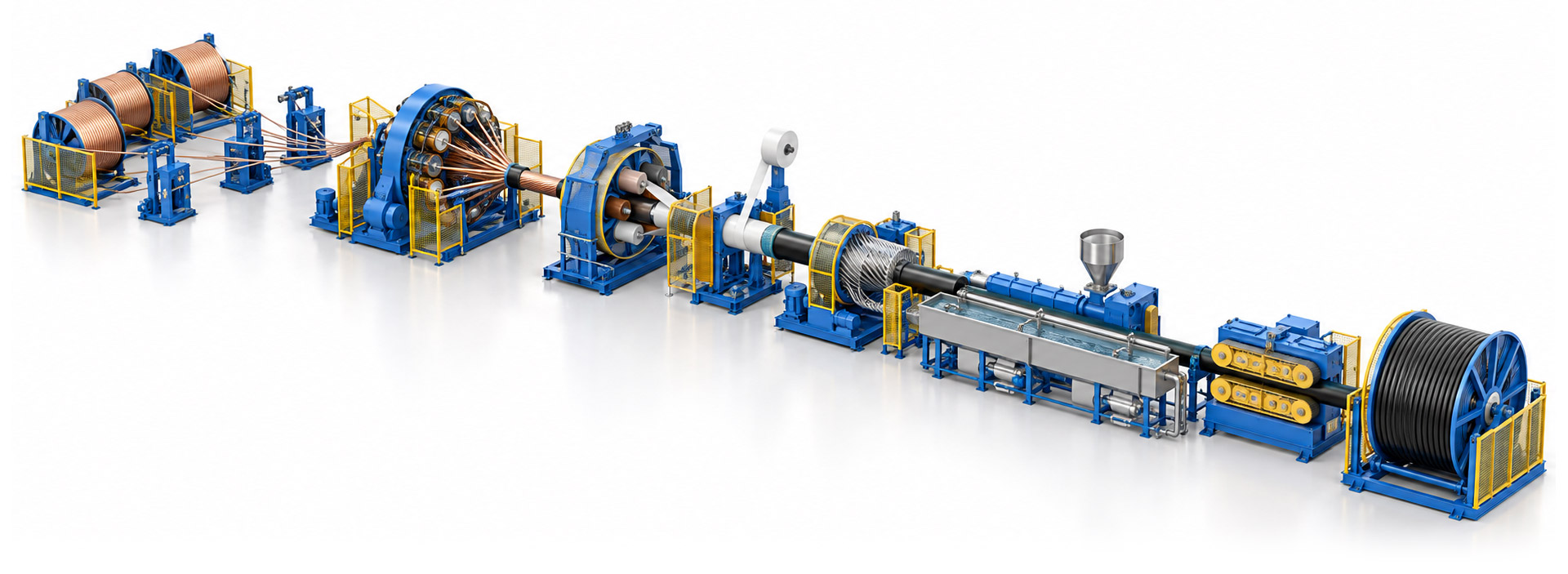

Factory Layout Automation
Illustrative arrangement only. Final machine spacing, reel flow, operator access, utilities and safety clearance are defined from the confirmed factory drawing.
Typical Line Configuration
What We Deliver
Complete Equipment List
Process Training and Production Line Optimization
Factory Layout Design Drawings
Remote Debugging/On-site Technical Support
Suggested Matching Package for Vulnerable Parts
CE Certification, Wiring Diagram, Instruction Manual
Production Line Video
Download Sample
Get In Touch
Your One-Stop Solution Provider for High-Performance Cable & Wire Production Equipment
Send us your cable drawing, material, size range, required output, reel or coil format and available factory space. Our team will use these details to define the line scope.
