Planetary Laying Up Machine
The Planetary Laying Up Machine is the critical equipment for the final assembly of multi-core cables. Unlike rigid frame stranders designed for speed, this machine is engineered for precision and low stress. It utilizes a planetary gear mechanism to provide 100% back-twist, ensuring that when twisting insulated cores (especially large cross-section power cables or delicate control cables), the individual cores remain untwisted around their own axis. This guarantees a stress-free, easy-to-handle finished cable.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The Planetary Laying Up Machine is the critical equipment for the final assembly of multi-core cables. Unlike rigid frame stranders designed for speed, this machine is engineered for precision and low stress. It utilizes a planetary gear mechanism to provide 100% back-twist, ensuring that when twisting insulated cores (especially large cross-section power cables or delicate control cables), the individual cores remain untwisted around their own axis. This guarantees a stress-free, easy-to-handle finished cable.
Structural Features And Configuration
Power cables: Cabling of 3-core, 4-core, or 5-core power cables (LV/MV).
Shape versatility: Perfect for assembling both round cores and fan-shaped cores.
Control cables: Cabling of multi-core control cables with taping.
Armoring: Capable of inline steel tape armoring for cable protection.

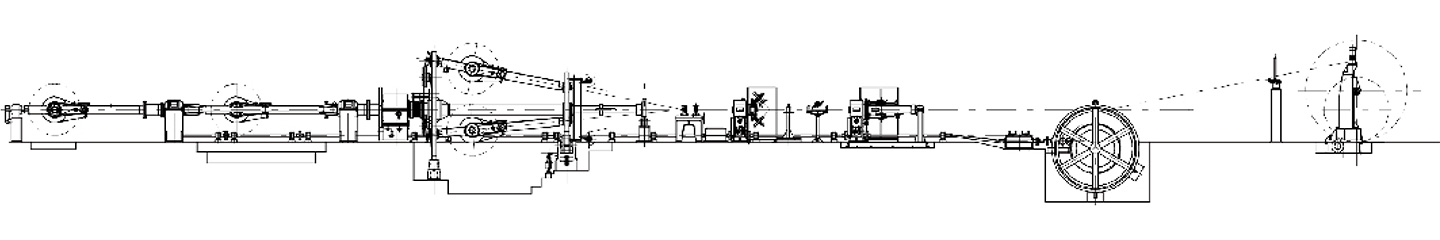

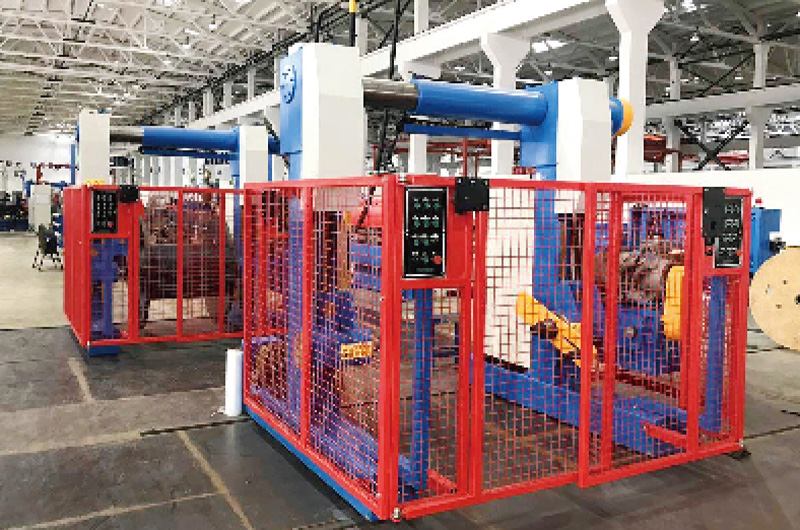

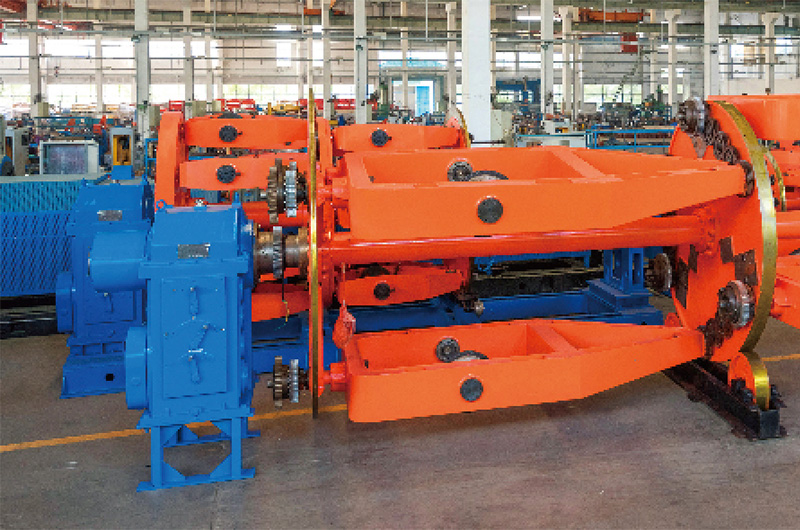

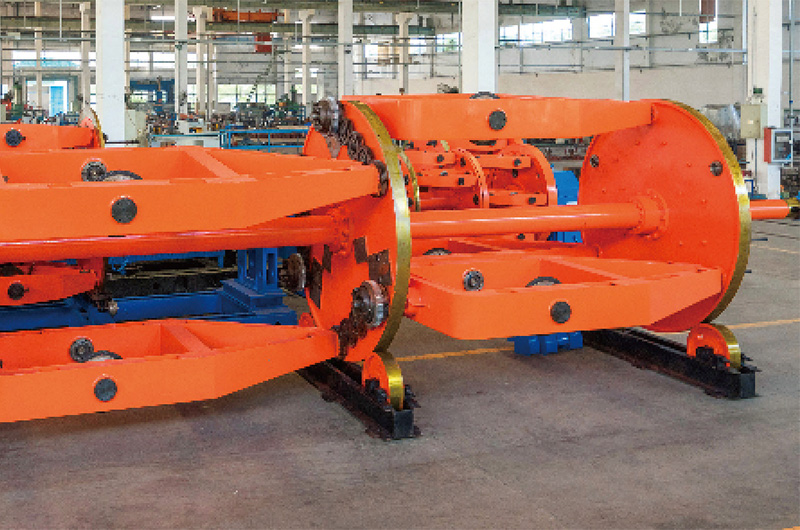

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
The machine is used for cabling power cables and control cables, both round and sector types.
Technical Specifications
Technical data for the CLY-630 (3+3), CLY-800, CLY-1000, CLY-1250, CLY-1600 planetary stranding machine models.
| Type | CLY-630(3+3) | CLY-800 | CLY-1000 | CLY-1250 | CLY-1600 |
|---|---|---|---|---|---|
| Wire cross-section (mm²) | 1.5-16 | 16-70 | 16-95 | 30-240 | 50-300 |
| Max. Stranded dia. (mm) | 30 | 40 | 60 | 80 | 100 |
| Cage rotation speed (rpm) | 39.5-90 | 20-45 | 20-45 | 11-25 | 6.1-14.6 |
| Stranding pitch (mm) | 51-886 | 94-1550 | 94-1550 | 191-3182 | 322-5738 |
| Taping rotation speed (rpm) | 169-387 | 169-387 | 169-387 | 169-387 | 169-387 |
| Taping pitch (mm) | 12-207 | 11-183 | 11-183 | 12-207 | 12-207 |
| Armoring rotation speed (rpm) | 146-339 | 146-339 | 146-339 | 149-339 | 149-339 |
| Armoring pitch(mm) | 13-239 | 12-212 | 12-212 | 14-235 | 14-235 |
| Capstan wheel (mm)/ Traction force | Φ1250 | Φ1600 | Φ1600 | 25KN or Φ2000 | 32KN or Φ2500 |
| Traction speed (m/min) | 4.56-35 | 4.22-31 | 4.22-31 | 4.77-35 | 4.7-35 |
| Bobbin in the cage | PN630 | PN800 | PN1000 | PN1250 | PN1600 |
| Central pay off | PN800-PN1600 | PN800-PN1600 | PN800-PN1600 | PN800-PN1600 | PN1600 |
| Take up | PN800-PN1600 | PN1000-PN2000 | PN1000-PN2000 | PN1250-PN2500 | PN1600-PN3150 |
| Main motor (kw) | 22 (AC) | 30 (AC) | 30 (AC) | 37 (AC) | 45 (AC) |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
