JLK Rigid Frame Strander
The machine is mainly used for the twisting of copper, aluminum and ACSR, and also suitable for the cabling of the small-section control cables.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is mainly used for the twisting of copper, aluminum and ACSR, and also suitable for the cabling of the small-section control cables.
Structural Features And Configuration
Equipped with a separate motor transmission and a modern electrical control system (PLC + Touch Screen) for precise synchronization of speed and pitch.
Separate Motor Drive
PLC Touch Screen Control
Speed & Pitch Synchronization

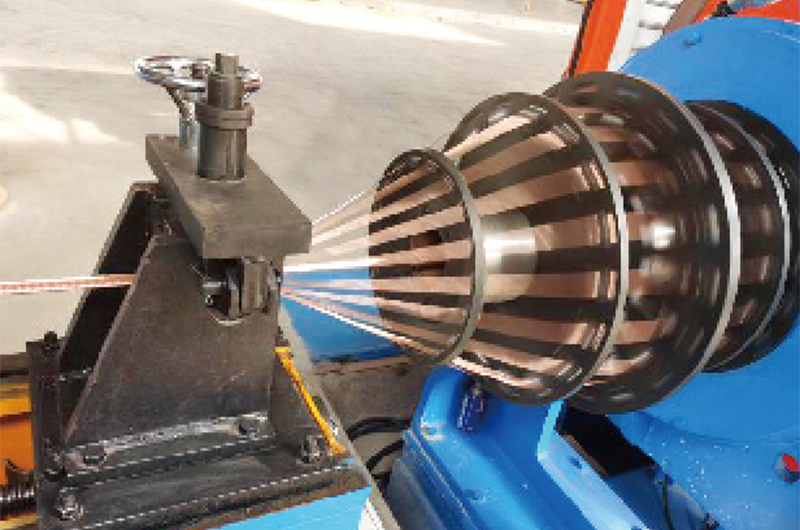

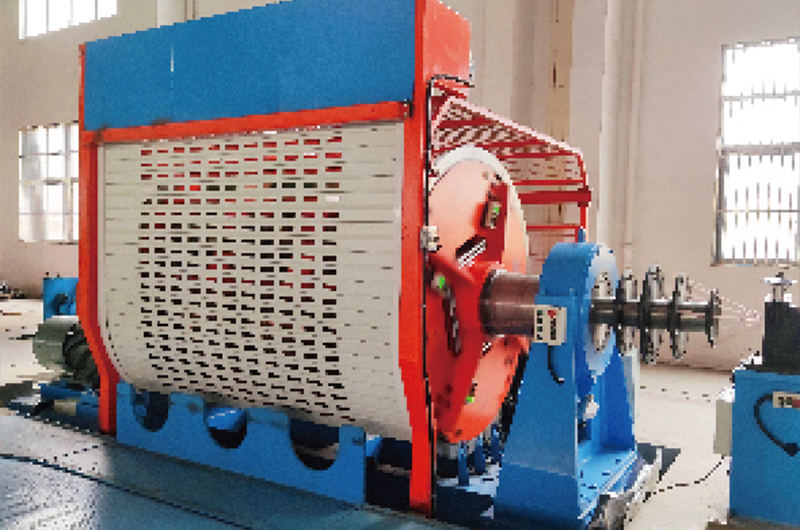

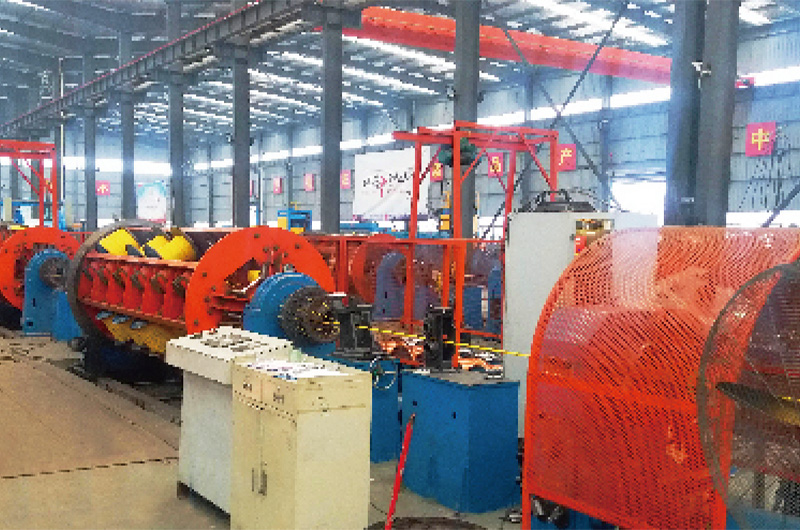

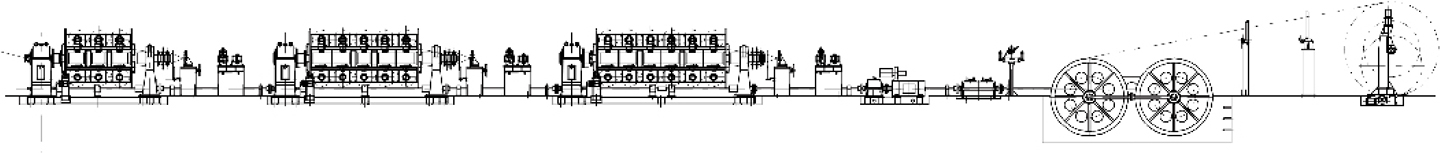

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
The machine is mainly used for the twisting of copper, aluminum and ACSR, and also suitable for the cabling of the small-section control cables.
The machine is mainly composed of fixed pay off, stranding cages, die holder, double wheel capstan, take up with traverse rack, transmission system and electrical control system, etc.
The machine can also add taping devices according to customers' requirements.
Technical Specifications
Technical data for the JLK-500, JLK-630 planetary stranding machine models.
| Type | JLK-500 | JLK-630 |
|---|---|---|
| Single wire die(mm) | Copper:Φ1.5-Φ5.0 | Copper:Φ1.5-Φ5.0 |
| Aluminum:Φ1.8-Φ5.0 | Aluminum:Φ1.8-Φ5.0 | |
| Stranding die (Max)(mm) | Φ45 | Φ45 |
| Cage rotation(rpm) | 6B:234 | 6B:230 |
| 12B:212 | 12B:210 | |
| 18B:182 | 18B:178 | |
| 24B:155 | 24B:158 | |
| 30B:139 | 30B:135 | |
| Stranding pitch(mm) | step-less adjustable | step-less adjustable |
| Capstan line speed(m/min) | 50 | 50 |
| Capstan wheel(mm) | Φ2500 | Φ2500 |
| Pay off bobbin | PND500 | PND630 |
| Take-up bobbin | PN1600-PN2500 | PN2000-PN3150 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
