Steel Tape Armoring Machine
This machine is specifically to apply steel tapes over power cables, communication cables, and control cables
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
This machine is specifically to apply steel tapes over power cables, communication cables, and control cables
Structural Features And Configuration
High forming precision: Adopting advanced concentric structure, the machine runs smoothly with minimal eccentricity and oscillation.
Uniform and stable: The overlap rate of the steel tape is precisely controllable, ensuring there are no weak points or uneven protection along the cable.
Tension: Adopt mechanical friction control or hysteresis tension control

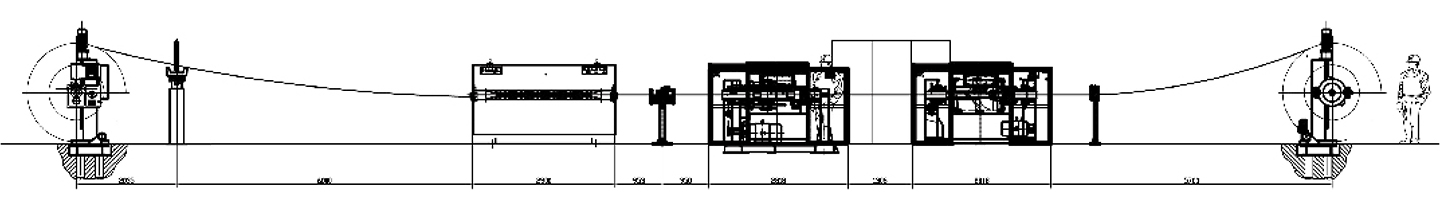

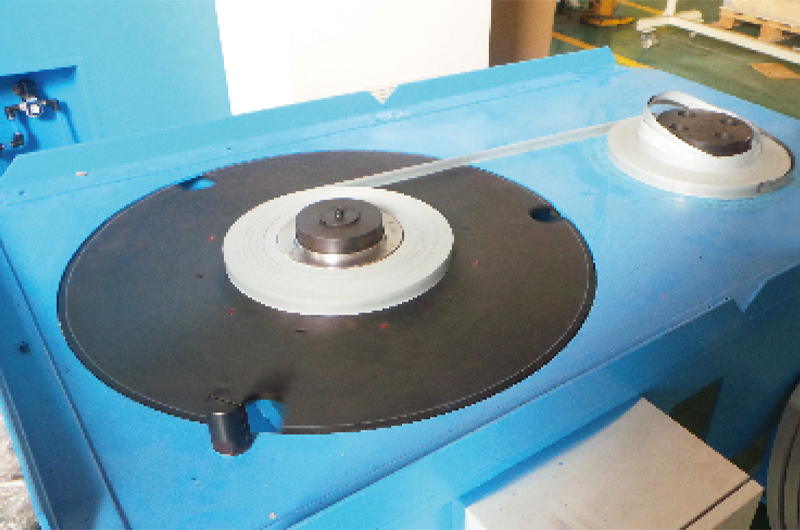

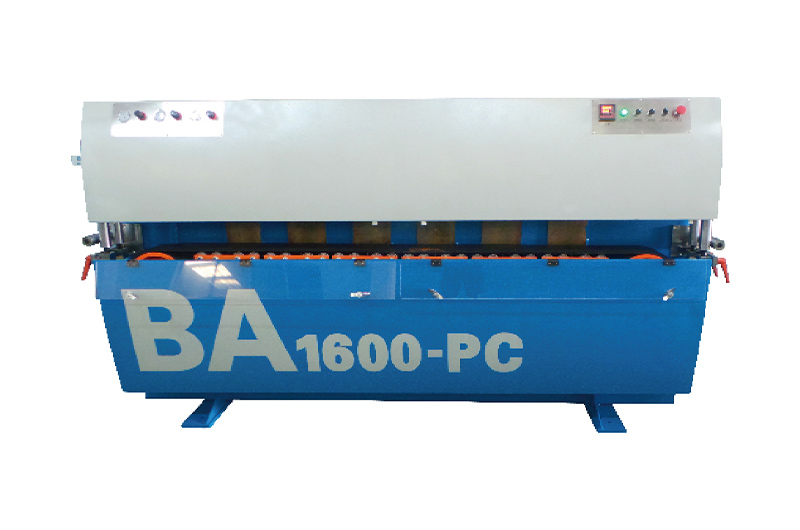

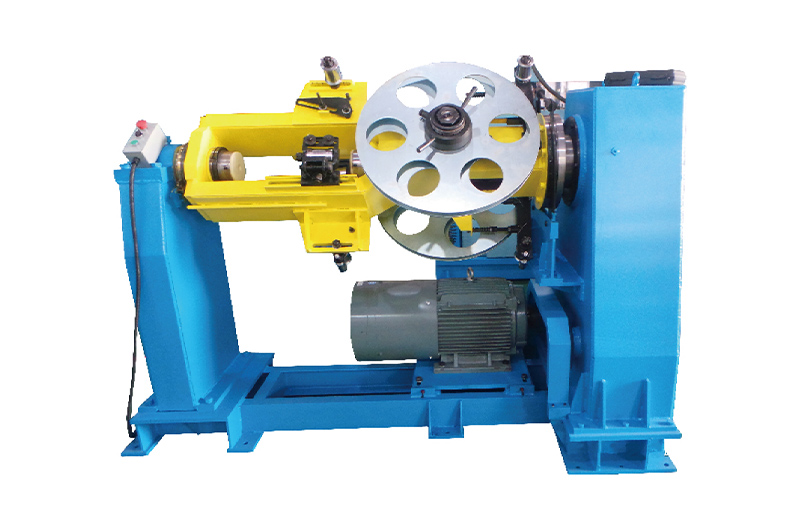

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Power cables: STA for Low and Medium Voltage underground power cables.
Communication cables: Armoring for outdoor communication lines to prevent rodent damage.
Control cables: Mechanical protection for multi-core control cables in harsh industrial environments.
Technical Specifications
Technical data for the SA-600, SA-710, SA800 planetary stranding machine models.
| Model | Steel Tape Pad (mm) | Steel Tape Width (mm) | Max. Line Speed (RPM) | Max. Cable Diameter (mm) | Tape Material | Tape Thickness (mm) |
|---|---|---|---|---|---|---|
| SA-600 | 600 | 15-40 | 500 | 90 | Galvanized steel tape | Ø0.2-1.0 |
| SA-710 | 710 | 15-40 | 450 | 120 | Galvanized steel tape | 0.2-1.0 |
| SA-800 | 800 | 15-60 | 400 | 130 | Galvanized steel tape | 0.2-1.0 |
Additional catalog-listed values
| Parameter | Catalog-listed value |
|---|---|
| Maximum cable diameter before armoring | Ø40 mm |
| Maximum traction | 1600 kg |
| Traction speed | 35 m/min |
| Non-metal tape unit | 600 mm / 2, semi-tangent, 500 rpm |
| Eccentric metal tape unit | 710 mm / 2, 350 rpm |
| Equipment center height | 1000 mm |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
