Sheathing Extrusion Line
The machine is used for extruding different material like PVC, PE, XLPE, HFFR or other normal plastic materials, mainly produce power cable, control cable, fireproof cable, submarine cable and so on.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is used for extruding different material like PVC, PE, XLPE, HFFR or other normal plastic materials, mainly produce power cable, control cable, fireproof cable, submarine cable and so on.
Structural Features And Configuration
Make color skin with aux. Extruder
Change screw for XLPE, HDPE, LSHF material.

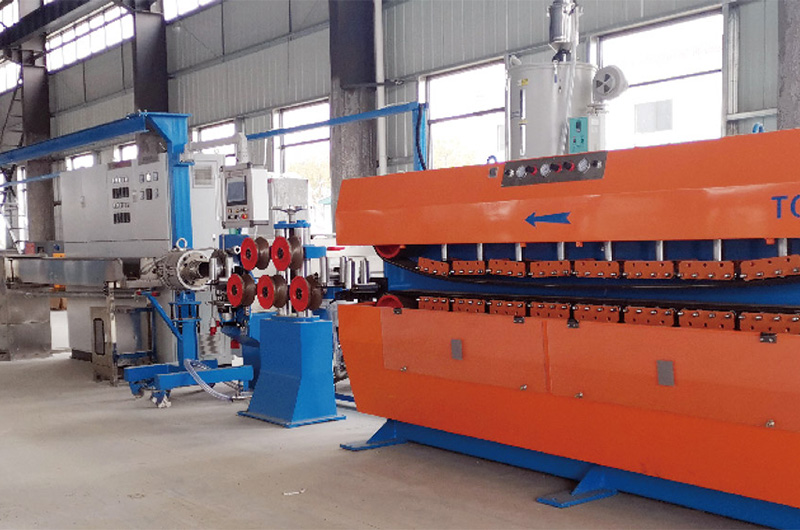

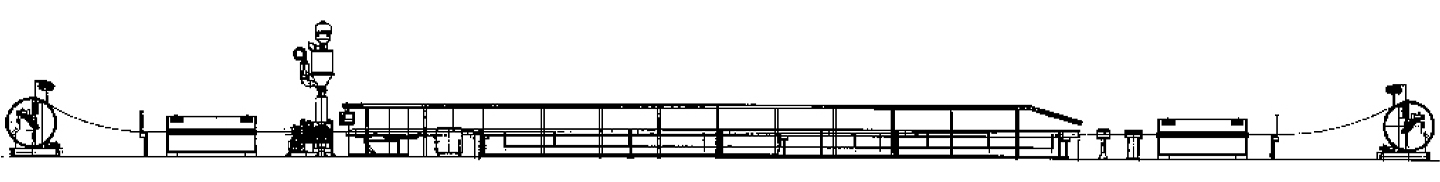

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Power cable
Control cable
Fireproof cable
Submarine cable
Technical Specifications
Technical data for the CT-70, CT-80, CT-90, CT-120, CT-150 planetary stranding machine models.
| Model | CT-70 | CT-80 | CT-90 | CT-120 | CT-150 |
|---|---|---|---|---|---|
| Pay off and take up | Column type or gantry moving type | ||||
| Pay-off bobbin | Φ1250 mm | Φ2000 mm | Φ2000 mm | Φ2500 mm | Φ3150 mm |
| Screw diameter | Φ70 mm | Φ80 mm | Φ90 mm | Φ120 mm | Φ150 mm |
| Screw L/D ratio | 26:1 BM | 26:1 BM | 26:1 BM | 25:1 BM | 25:1 BM |
| Extrusion output | 230kg/h | 300kg/h | 400kg/h | 600kg/h | 900kg/h |
| Main motor power | 37KW | 55KW | 75KW | 160KW | 220KW |
| Wire diameter | Φ4-20 mm | Φ3-30 mm | Φ10-40 mm | Φ20-80 mm | Φ50-140 mm |
| Traction | Caterpillar | Caterpillar | Caterpillar | Caterpillar | Caterpillar |
| Traction force | 800Kg | 1250Kg | 1600Kg | 2000Kg | 2500Kg |
| Cooling device | Single layer U type | Single layer U type | Single layer U type | Single layer U type | Single layer U type |
| Take up bobbin | Φ1250 | Φ2000 | Φ2500 | Φ2500 | Φ3150 |
| Traction speed | 0-250m/min | 0-250m/min | 0-200m/min | 0-150m/min | 0-100m/min |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
