Automotive & New Energy Cable
Production Line
A flexible production concept for automotive primary wire, flexible conductors
and selected shielded new-energy cable constructions.
View More
Why Automotive & New Energy Cable?
Why Automotive & New Energy Cable?
Automotive cable families include small primary wire, flexible battery cable, shielded high-voltage cable and temperature-resistant constructions. Each family places different requirements on conductor flexibility, insulation material, shielding, wall thickness and online inspection.
Why Automotive & New Energy Cable?

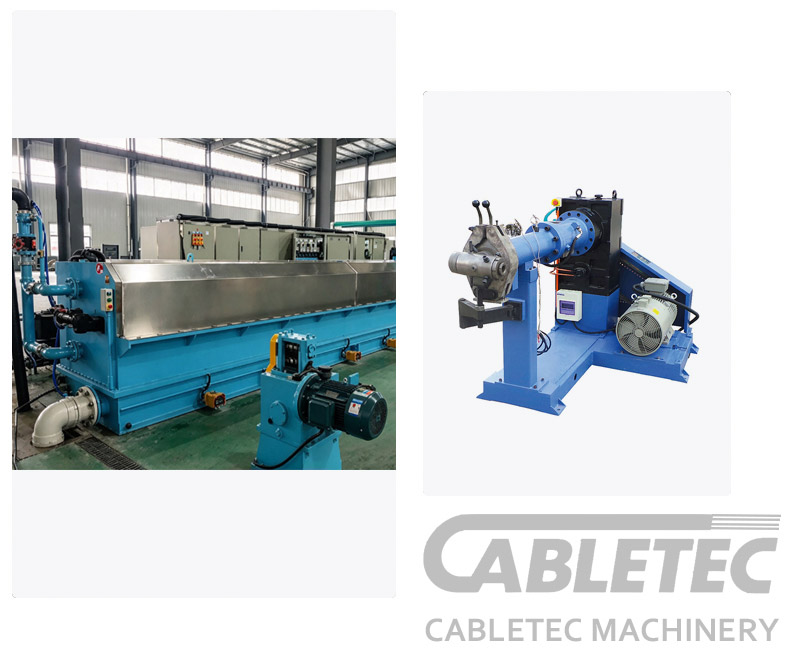

Cabletec equipment can be combined for multi-wire drawing, bunching, insulation extrusion, optional braiding, outer sheathing, dimensional monitoring and winding. Compliance with an OEM, ISO, SAE, JASO or other standard requires a separate product and validation review.

Production Process

swiper process icon1

Copper Rod

1
swiper process icon2

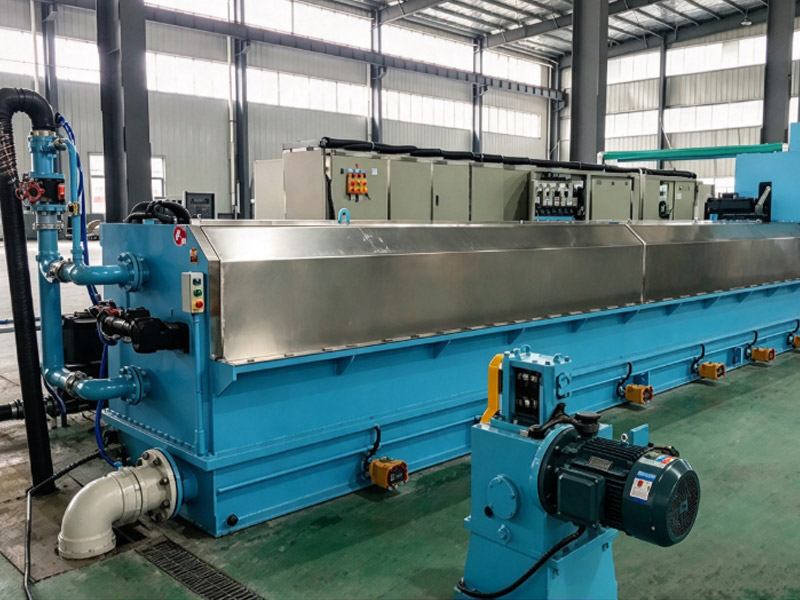

Multi-wire Drawing

2
swiper process icon3

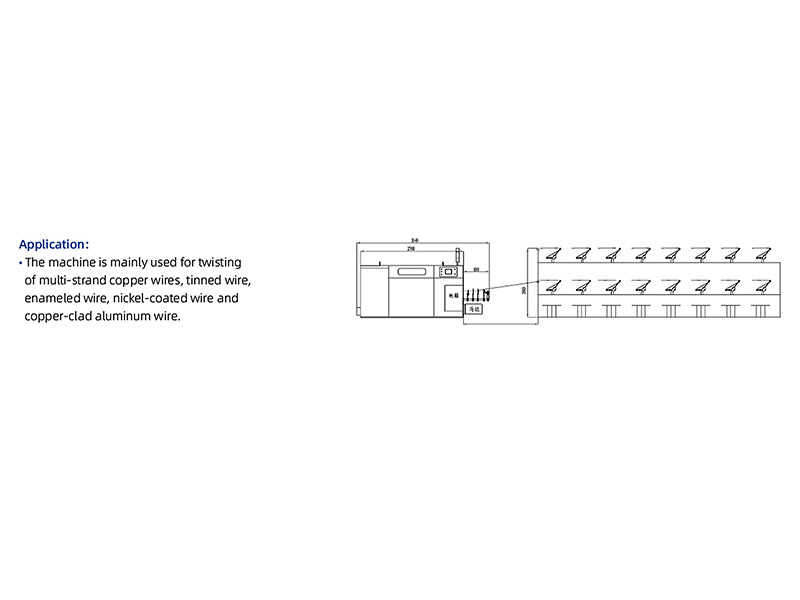

Conductor Bunching

3
swiper process icon4

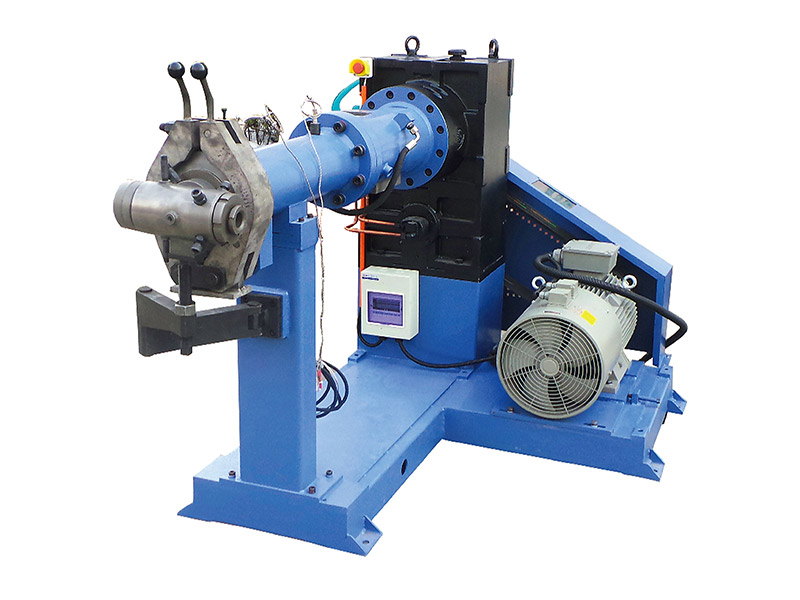

Insulation Extrusion

4
swiper process icon5

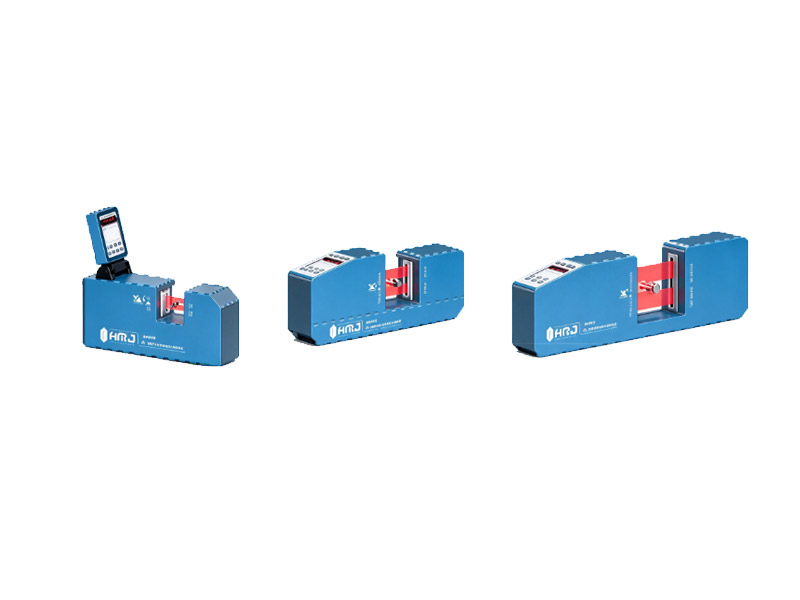

Spark / Diameter Test

5
swiper process icon6

Braiding (optional)

6
swiper process icon7

Outer Sheathing

7
swiper process icon8

Printing / Marking

8
swiper process icon9

Coiling / Take-up

9
Material system, cable class and required validation plan must be confirmed before performance or compliance is stated.
Product Application Field

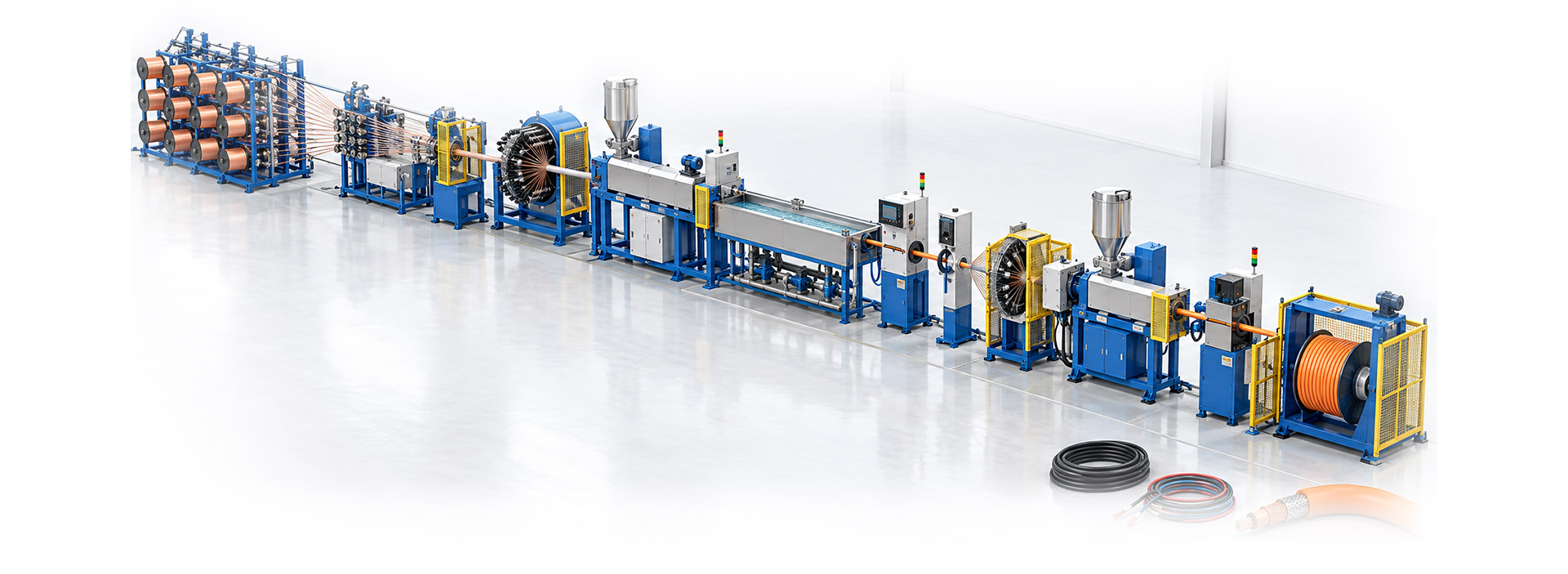

Factory Layout Automation

wmap
Illustrative arrangement only. Final machine spacing, reel flow, operator access, utilities and safety clearance are defined from the confirmed factory drawing.
Typical Line Configuration
img of Automotive Primary Wire
Automotive Primary Wire
Fine or multi-wire drawing, bunching when required, insulation extrusion, inline test, marking and winding.
img of Shielded New Energy Cable
Shielded New Energy Cable
Adds metallic braid and an outer sheath for compatible shielded cable constructions.
What We Deliver
img of Complete Equipment List
icon of Complete Equipment List
Complete Equipment List
img of Process Training and Production Line Optimization
icon of Process Training and Production Line Optimization
Process Training and Production Line Optimization
img of Factory Layout Design Drawings
icon of Factory Layout Design Drawings
Factory Layout Design Drawings
img of Remote Debugging/On-site Technical Support
icon of Remote Debugging/On-site Technical Support
Remote Debugging/On-site Technical Support
img of Suggested Matching Package for Vulnerable Parts
icon of Suggested Matching Package for Vulnerable Parts
Suggested Matching Package for Vulnerable Parts
img of CE Certification, Wiring Diagram, Instruction Manual
icon of CE Certification, Wiring Diagram, Instruction Manual
CE Certification, Wiring Diagram, Instruction Manual
Production Line Video
Download Sample
Get In Touch

Your One-Stop Solution Provider for High-Performance Cable & Wire Production Equipment

Send us your cable drawing, material, size range, required output, reel or coil format and available factory space. Our team will use these details to define the line scope.
