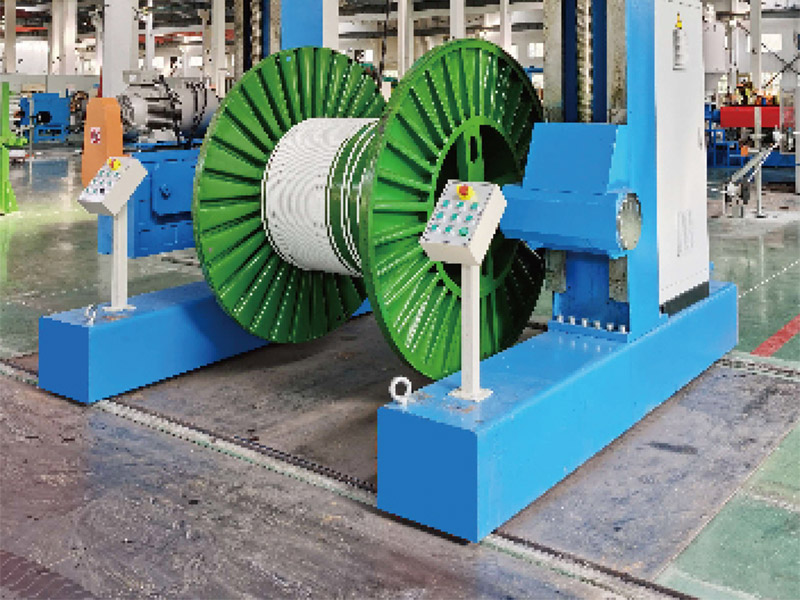

Portal Type Pay Off and Take Up
The machine is for unwinding and winding wire and cable.
- Product Details
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is for unwinding and winding wire and cable.

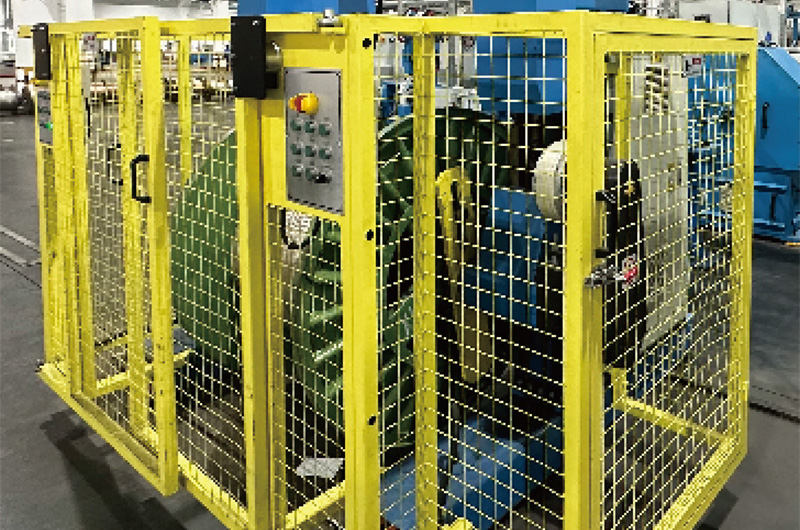

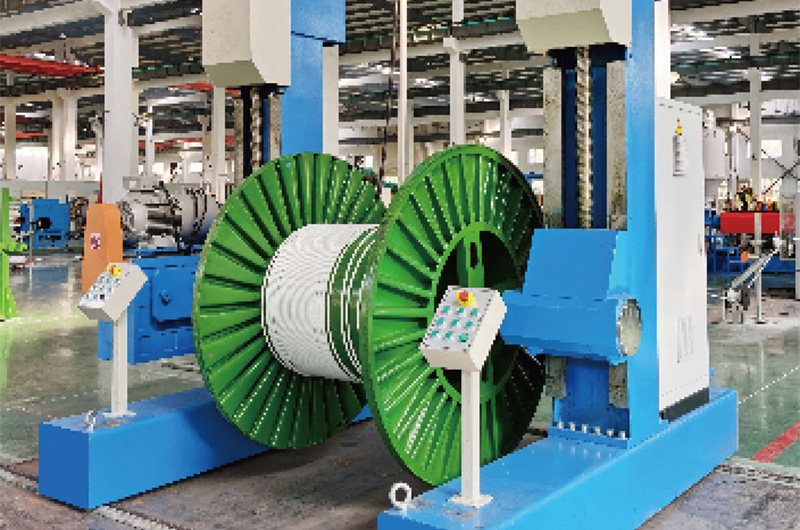

Product Images And Drawings
Technical Specifications
Technical data for the Ø630/1250, Ø800/1600, Ø1000/2000, Ø1250/2500, Ø1600/3150, Ø2000/3600 planetary stranding machine models.
| Model | Ø630/1250 | Ø800/1600 | Ø1000/2000 | Ø1250/2500 | Ø1600/3150 | Ø2000/3600 |
|---|---|---|---|---|---|---|
| Max. Cable dia. (mm) | 25 | 30 | 60 | 80 | 120 | 120 |
| Bobbin flange dia. (mm) | Ø630-1250 | Ø800-1600 | Ø1000-2000 | Ø1250-2500 | Ø1600-3150 | Ø2000-3600 |
| Bobbin overall width (mm) | 475-950 | 600-1180 | 750-1500 | 950-1900 | 1180-2300 | 1450-2160 |
| Max. Loading capacity (t) | 3 | 4 | 8 | 12 | 18 | 30 |
| Max. Take up speed (m/min) | 100 | 80 | 80 | 80 | 80 | 80 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 3, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
