Copper Communication Cable
Production Line
Production Line
A controlled route for fine conductor preparation, primary insulation,
twisting, shielding, jacketing and take-up.
View Moretwisting, shielding, jacketing and take-up.
Why Communication Cable?
Copper communication and data cables depend on repeatable conductor diameter, insulation geometry, twist lay, core balance and shielding construction. These factors influence the finished electrical performance and cannot be defined by machine name alone.

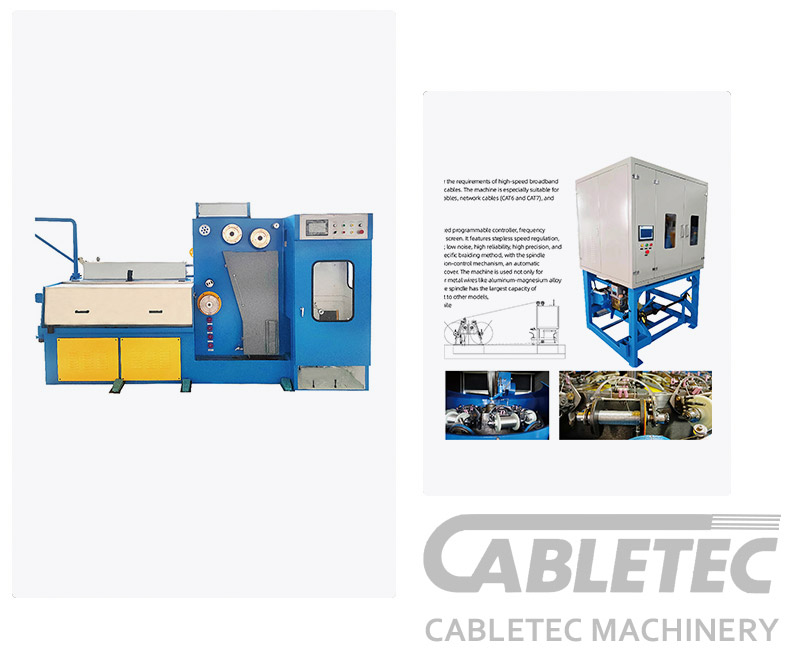

The line concept combines Cabletec equipment for fine-wire drawing, insulation, twisting, braiding or shielding, jacketing and measurement. Transmission category or impedance performance is confirmed only after reviewing the complete cable design and test standard.
Production Process
Copper Rod

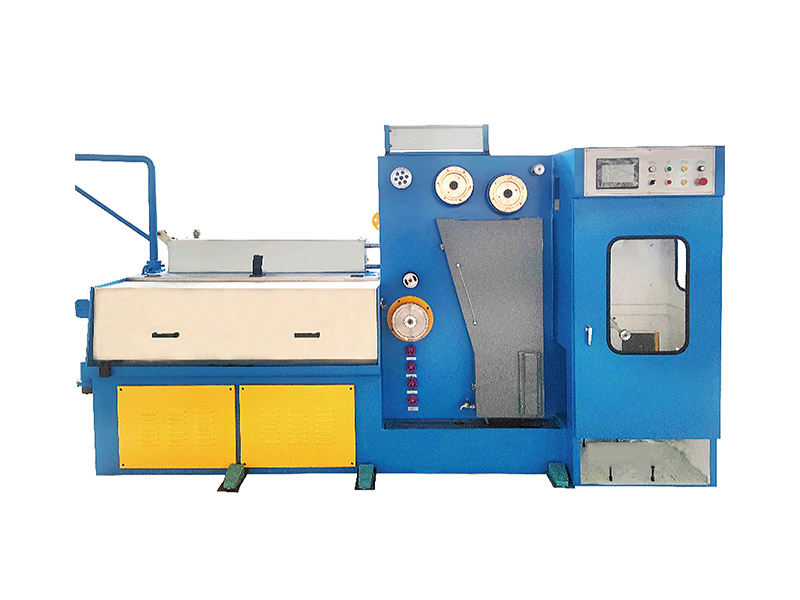

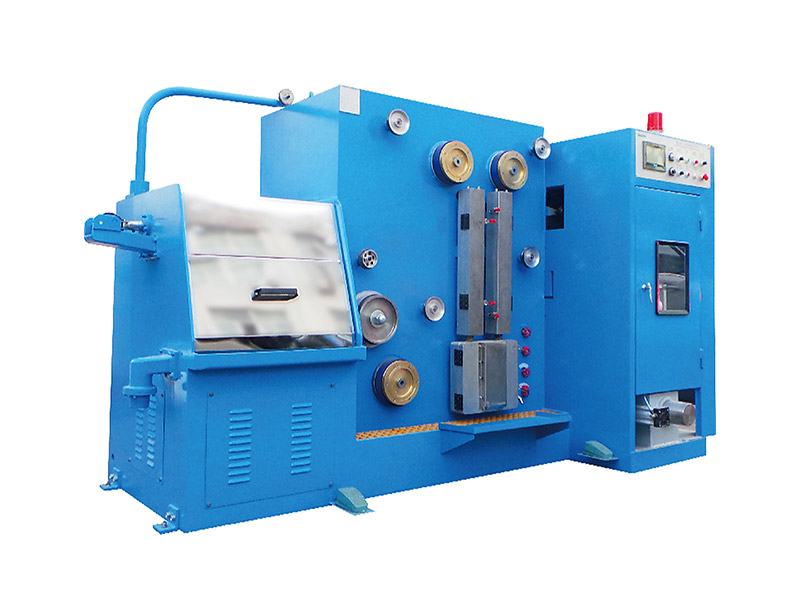

Fine Wire Drawing
Primary Insulation

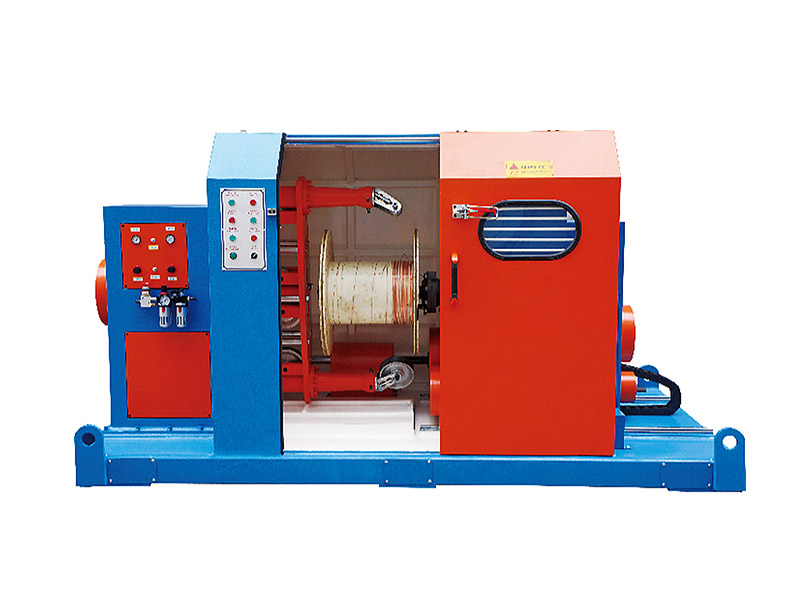

Pair Twisting
Core Cabling

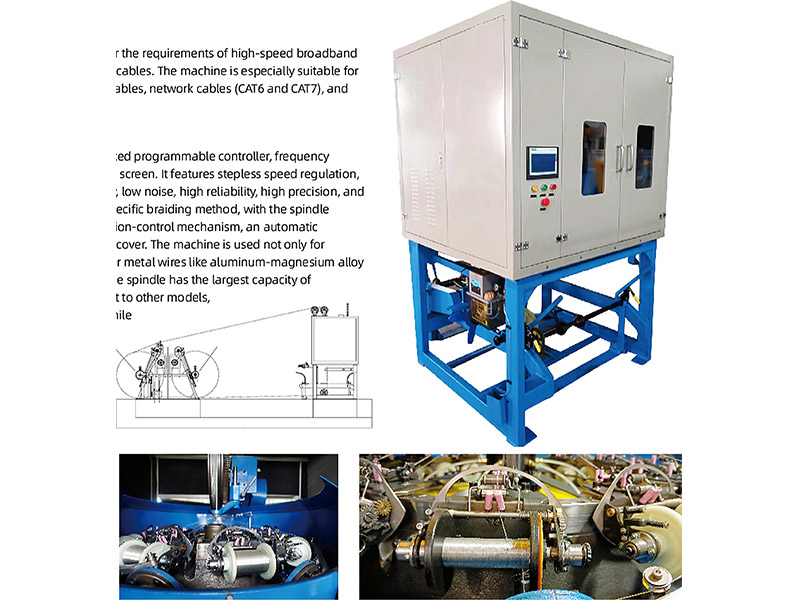

Shielding / Braiding

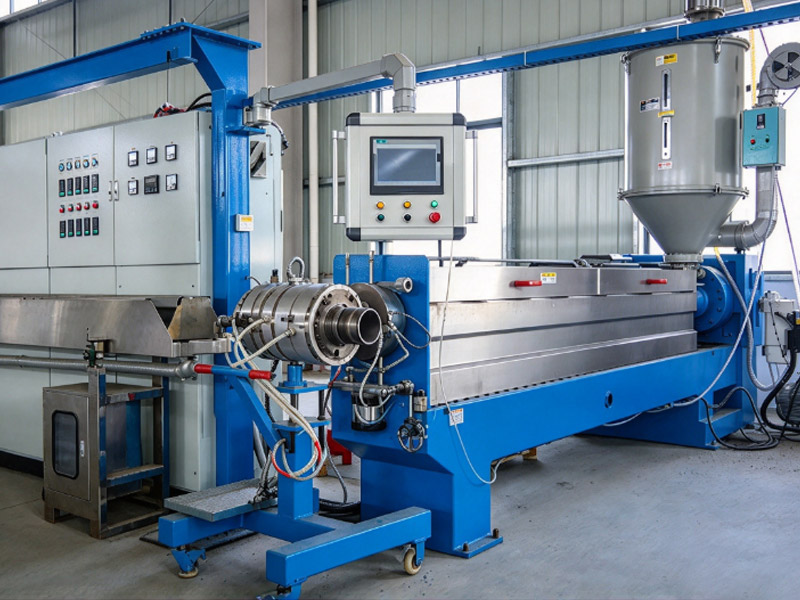

Outer Jacketing

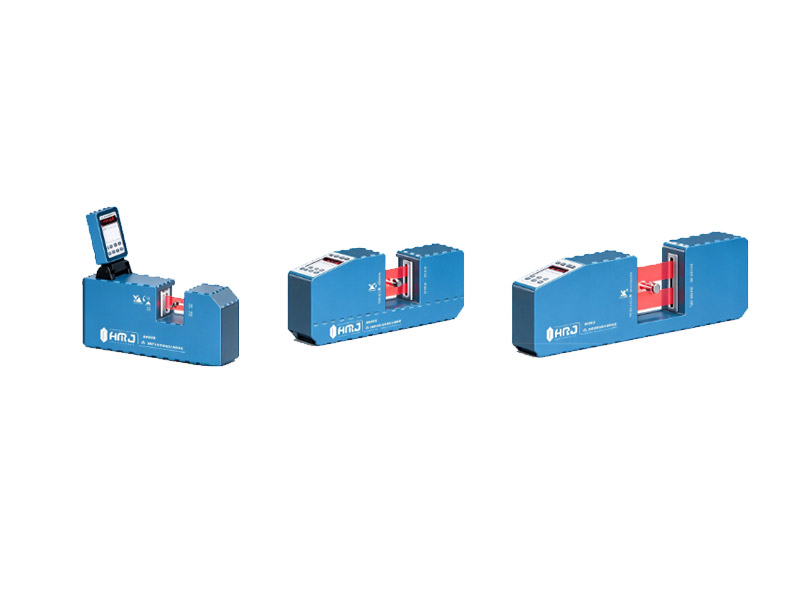

Inline Measurement
Take-up / Rewinding
Pair geometry, insulation design and electrical test requirements must be supplied before any category or transmission-performance claim is made.

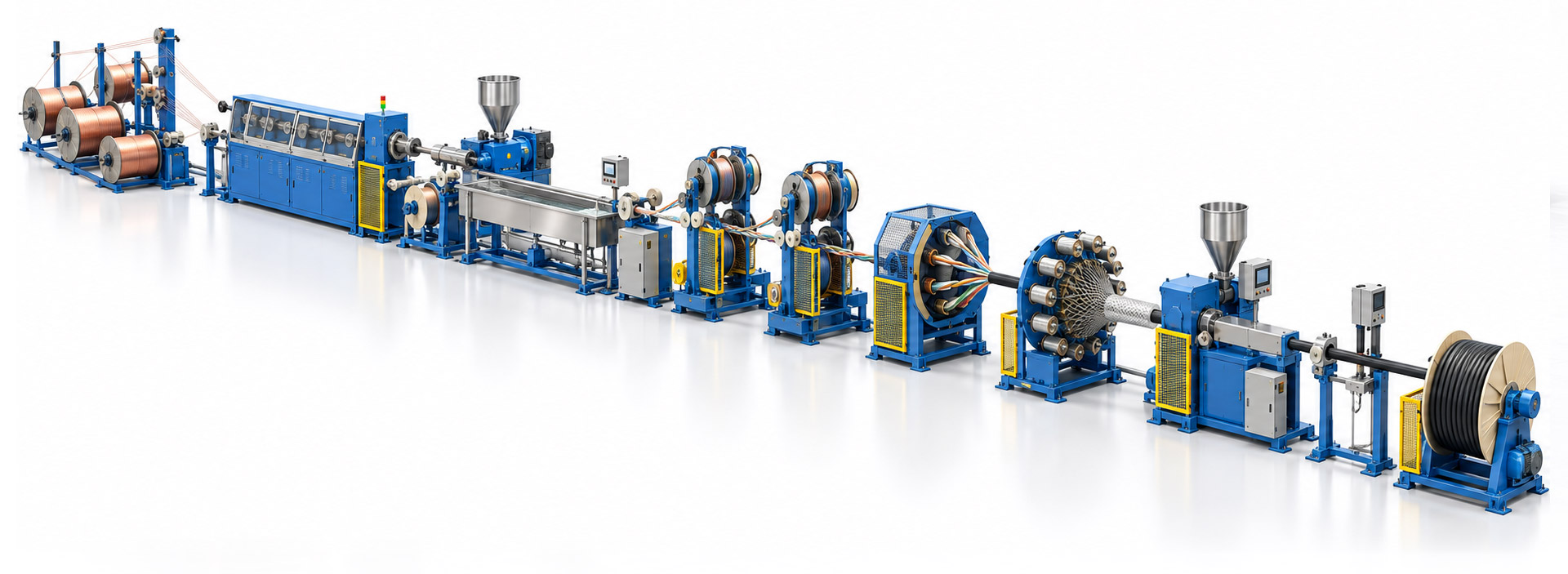

Factory Layout Automation
Illustrative arrangement only. Final machine spacing, reel flow, operator access, utilities and safety clearance are defined from the confirmed factory drawing.
What We Deliver
Complete Equipment List
Process Training and Production Line Optimization
Factory Layout Design Drawings
Remote Debugging/On-site Technical Support
Suggested Matching Package for Vulnerable Parts
CE Certification, Wiring Diagram, Instruction Manual
Production Line Video
Download Sample
Get In Touch
Your One-Stop Solution Provider for High-Performance Cable & Wire Production Equipment
Send us your cable drawing, material, size range, required output, reel or coil format and available factory space. Our team will use these details to define the line scope.
