Non-Metal Tape Armoring Machine
This machine is for taping non-metallic belt around the cable core, provide a bedding layer, or apply a semi-conductive screen. It is a vital component in the production line for keeping the cable structure tight and round.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
This machine is for taping non-metallic belt around the cable core, provide a bedding layer, or apply a semi-conductive screen. It is a vital component in the production line for keeping the cable structure tight and round.
Structural Features And Configuration

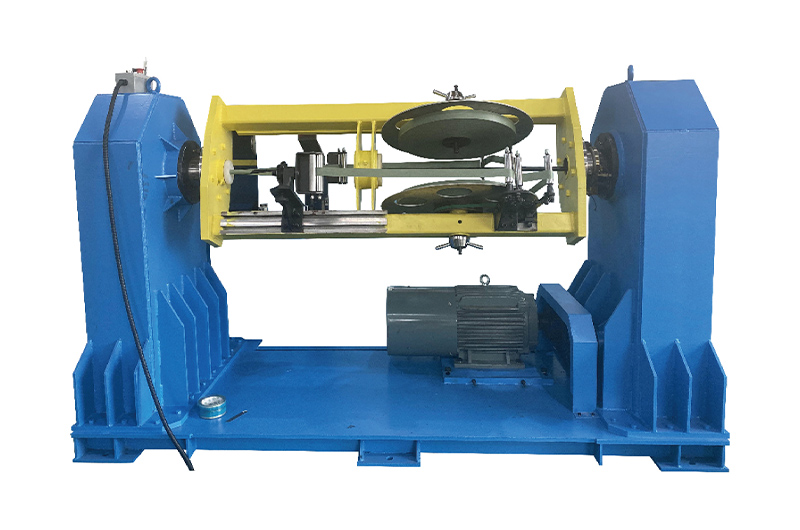

High-speed taping head: The core unit features a concentric dual-pad design. It is balanced for high-speed rotation. The safety cage structure ensures operator safety while allowing easy access for changing tape pads.
Material versatility: Designed specifically to handle materials: PET, non-woven cloth, and semi-conductor cloth. The guiding rollers are smooth to prevent tearing these thin materials.

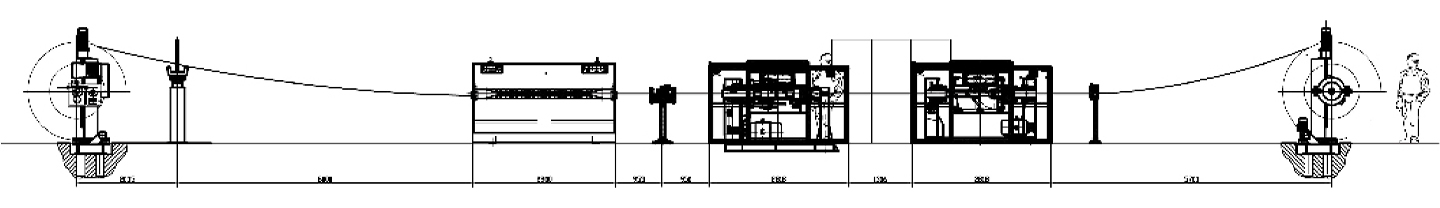

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Binding: Applying non-woven cloth or PET to hold multi-core cables together before sheathing.
Semi-conductive screening: Applying semi-conductor cloth tapes for medium/high voltage cable shielding.
Bedding: Creating a smooth surface over the twisted cores to protect the outer sheath.
Fire resistance: Can also be used for certain mica or fiberglass tapes depending on configuration.
Technical Specifications
Technical data for the 400mm, 500mm , 600mm, 800mm planetary stranding machine models.
| Model | Material | Tape Width | Max. Speed | Cable Dia. |
|---|---|---|---|---|
| 400 | PET, non-woven cloth, semi-conductor cloth and etc. | 10-50 mm | 500 RPM | 10-100 mm |
| 500 | PET, non-woven cloth, semi-conductor cloth and etc. | 10-50 mm | 500 RPM | 10-100 mm |
| 600 | PET, non-woven cloth, semi-conductor cloth and etc. | 15-60 mm | 500 RPM | 10-100 mm |
| 800 | PET, non-woven cloth, semi-conductor cloth and etc. | 15-60 mm | 500 RPM | 10-100 mm |
