Unlike bare metal conductors, insulated cores are sensitive. Our machines feature optimized wire paths and smooth capstans to prevent scratching or crushing the insulation layer during the twisting process.
✔ Perfect Roundness
Whether cabling round cores or sector-shaped cores, our precise back-twist technology and die holders ensure the final cable is perfectly round, which is critical for the subsequent sheathing process.
✔ All-in-One Process
Our cabling lines are designed to multitask. You can perform cabling, filling, and taping (PVC/Steel/Copper tape) in a single pass, significantly reducing production time and floor space usage.
Cable Core
Choose the right machine based on your cable diameter, length, and flexibility requirements.
Stranding Line for Cable Core

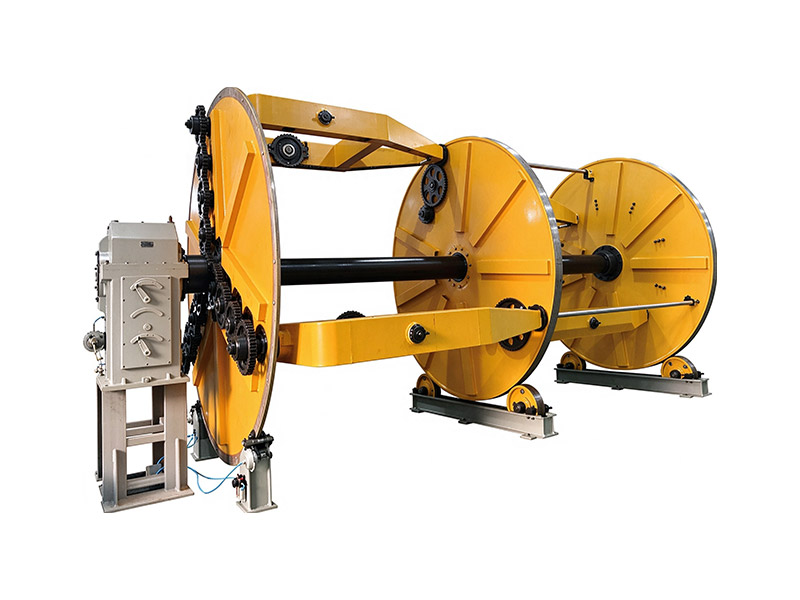

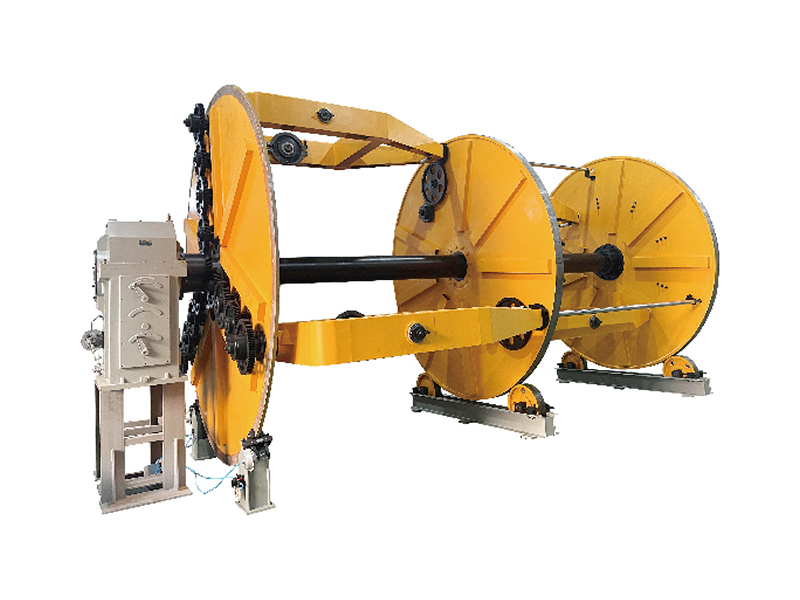

The Planetary Laying Up Machine is the critical equipment for the final assembly of multi-core cables. Unlike rigid frame stranders designed for speed, this machine is engineered for precision and low stress. It utilizes a planetary gear mechanism to provide 100% back-twist, ensuring that when twisting insulated cores (especially large cross-section power cables or delicate control cables), the individual cores remain untwisted around their own axis. This guarantees a stress-free, easy-to-handle finished cable.

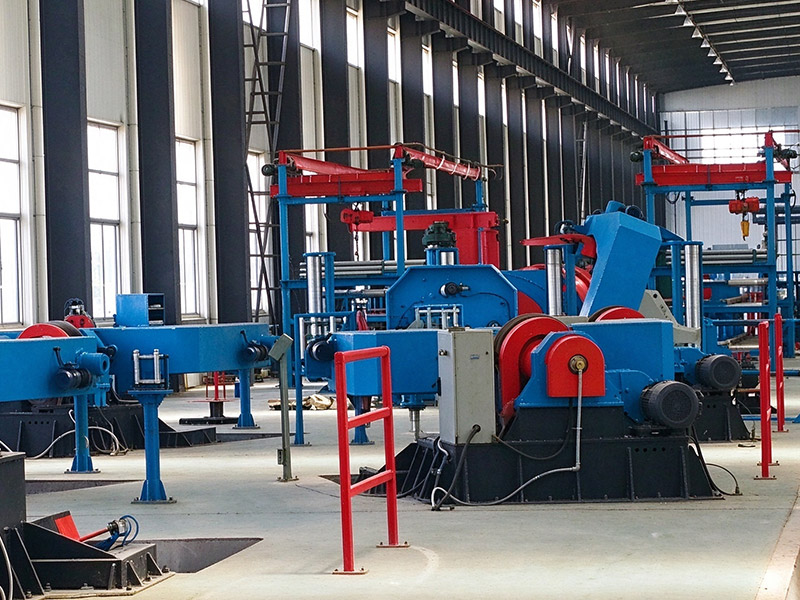

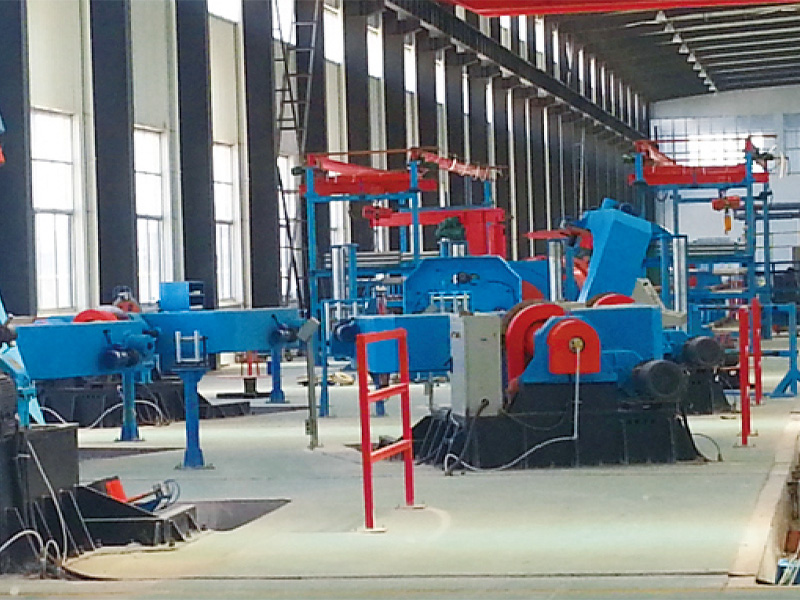

The machine is the "Giant" of cable machinery, designed specifically for the cabling and armoring of large-diameter, extra-long power cables. Unlike planetary stranders where the heavy pay off bobbins must rotate, the drum twister operates on a different principle: the pay-off stands are stationary (or rotate slowly), while the massive take up rotates to twist the cable. This design allows it to handle the heaviest cables in the industry, from Low Voltage to Extra High Voltage (EHV).

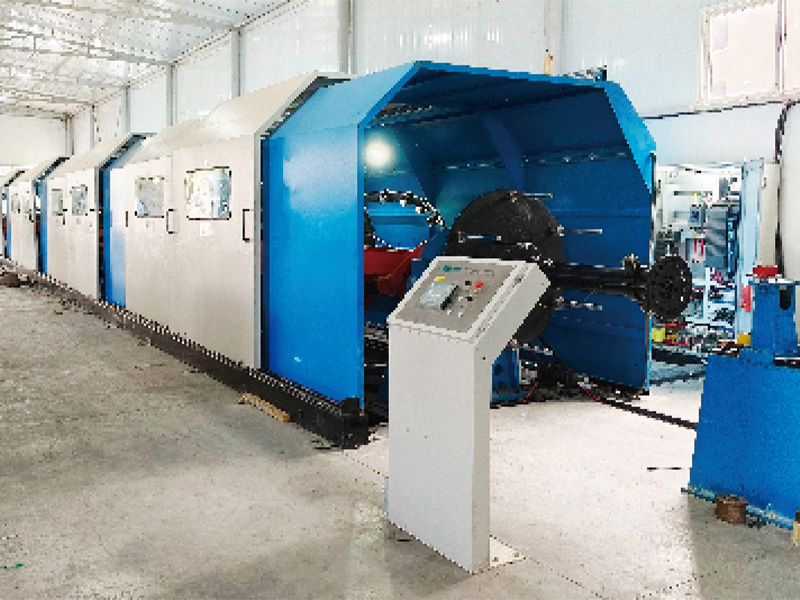

The machine suits for the high speed laying up of 4-5 control cable and round power cable, especially showed the production efficiency when mass production, small cable can choose dual wheel capstan for high speed production, big cable choose caterpillar. Take up are separately driven by independent motor. HMI+PLC, preset the rotation speed and twist pitch.
The machine is suitable for various power cables, CAT5 & CAT6 data cable, communication cable , unilay cables and so on.
Zero-Torsion Back-Twist Technology
Intelligent Tension Control
Sector Core Alignment
Integrated Armoring & Taping
