Optical Cable Sheathing &
Auxiliary Solution
A clearly defined downstream section for controlled pay-off, jelly-injection
crosshead, sheathing, cooling, haul-off and take-up.
View More
Why a Defined Optical Cable Scope?
Why a Defined Optical Cable Scope?
Complete optical-cable manufacturing can include fiber coloring, secondary coating, SZ stranding, yarn application, armoring and final jacketing. Those processes require specialized equipment and precise fiber-tension control.
Why a Defined Optical Cable Scope?

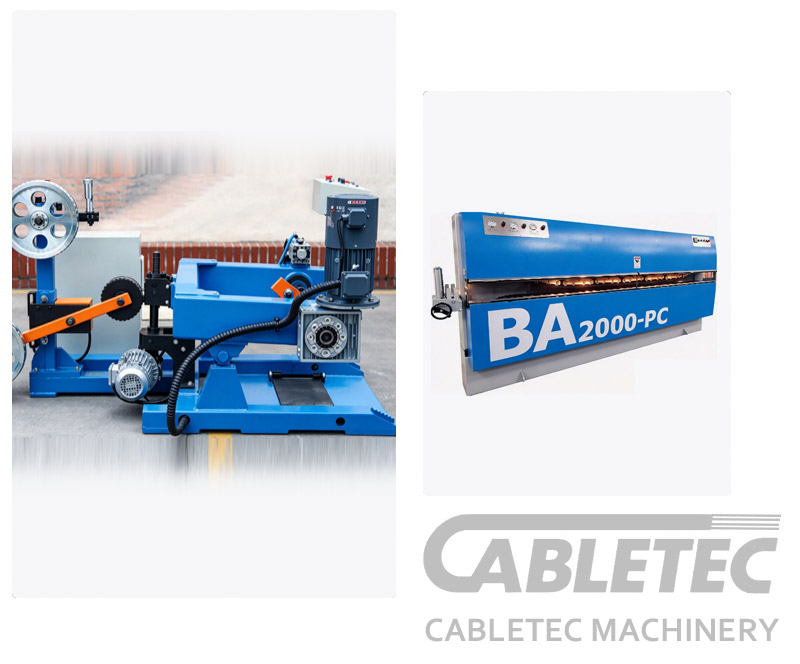

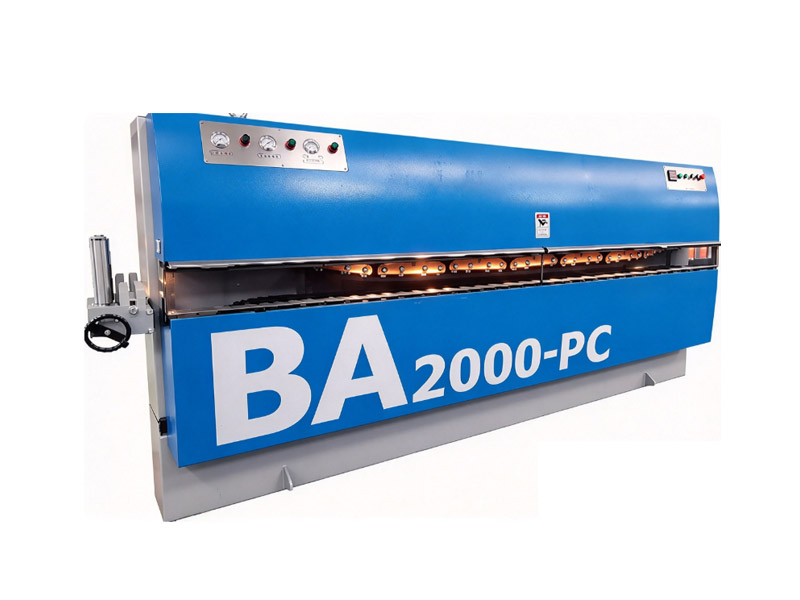

The current Cabletec catalog is best aligned with selected downstream and auxiliary stages: motorized pay-off, a jelly-injection centering crosshead, sheathing extrusion, cooling, diameter monitoring, caterpillar haul-off and final take-up. This page therefore does not present a full fiber-to-cable turnkey line.

Production Process

swiper process icon1

Fiber / Cable Package

1
swiper process icon2

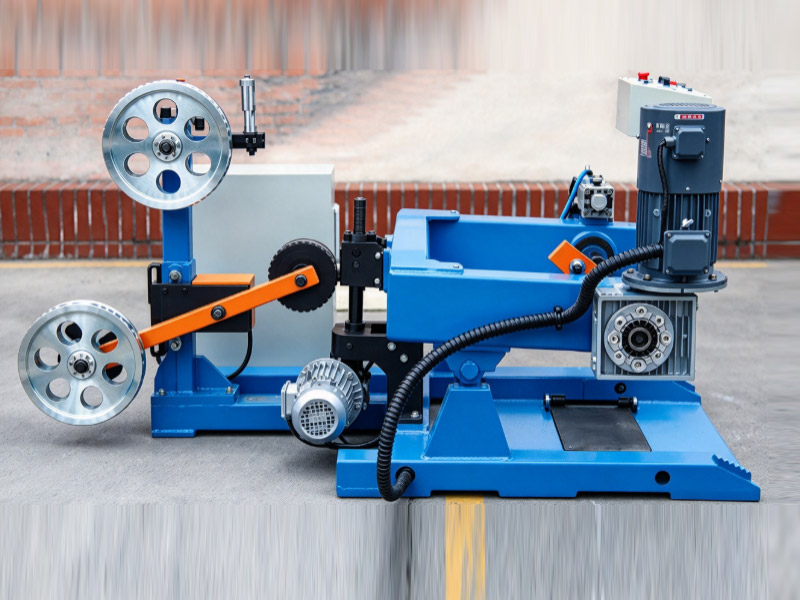

Motorized Pay-off

2
swiper process icon3

Tension Control

3
swiper process icon4

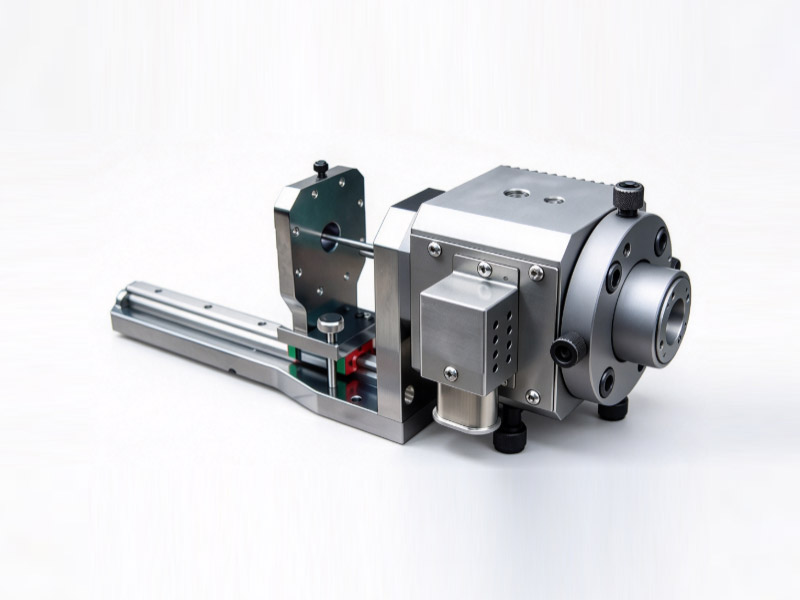

Jelly Injection (optional)

4
swiper process icon5

Sheathing Extrusion

5
swiper process icon6

Cooling

6
swiper process icon7

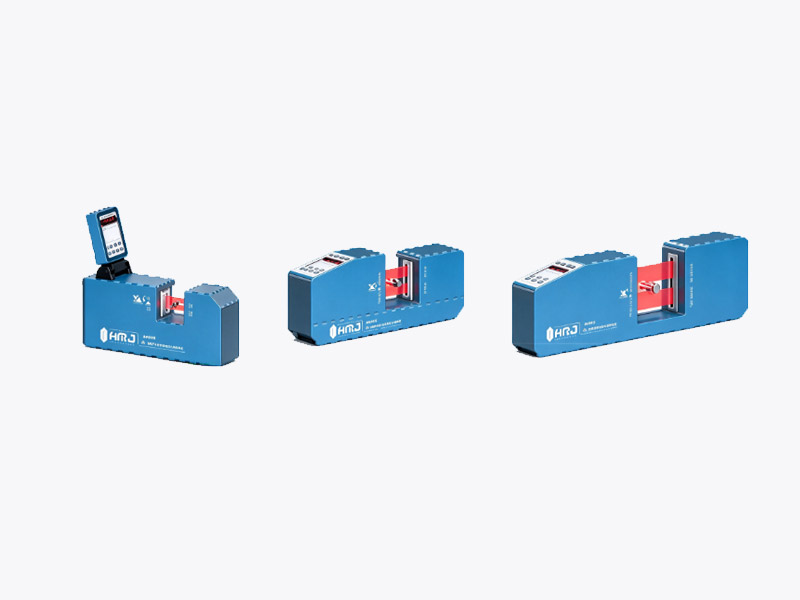

Diameter Monitoring

7
swiper process icon8

Caterpillar Haul-off

8
swiper process icon9

Final Take-up

9
Fiber coloring, loose-tube production and SZ stranding are outside the documented scope and require separate confirmation.
Product Application Field

Factory Layout Automation

wmap
Illustrative arrangement only. Final machine spacing, reel flow, operator access, utilities and safety clearance are defined from the confirmed factory drawing.
Typical Line Configuration
img of Sheathing Production Section
Sheathing Production Section
Controlled pay-off, optional jelly injection, sheathing, cooling, measurement, haul-off and take-up.
img of Downstream Line Upgrade
Downstream Line Upgrade
Selected auxiliary equipment integrated around the customer's existing upstream optical-cable process.
What We Deliver
img of Complete Equipment List
icon of Complete Equipment List
Complete Equipment List
img of Process Training and Production Line Optimization
icon of Process Training and Production Line Optimization
Process Training and Production Line Optimization
img of Factory Layout Design Drawings
icon of Factory Layout Design Drawings
Factory Layout Design Drawings
img of Remote Debugging/On-site Technical Support
icon of Remote Debugging/On-site Technical Support
Remote Debugging/On-site Technical Support
img of Suggested Matching Package for Vulnerable Parts
icon of Suggested Matching Package for Vulnerable Parts
Suggested Matching Package for Vulnerable Parts
img of CE Certification, Wiring Diagram, Instruction Manual
icon of CE Certification, Wiring Diagram, Instruction Manual
CE Certification, Wiring Diagram, Instruction Manual
Production Line Video
Download Sample
Get In Touch

Your One-Stop Solution Provider for High-Performance Cable & Wire Production Equipment

Send us your cable drawing, material, size range, required output, reel or coil format and available factory space. Our team will use these details to define the line scope.

Explore Cabletec Solutions
