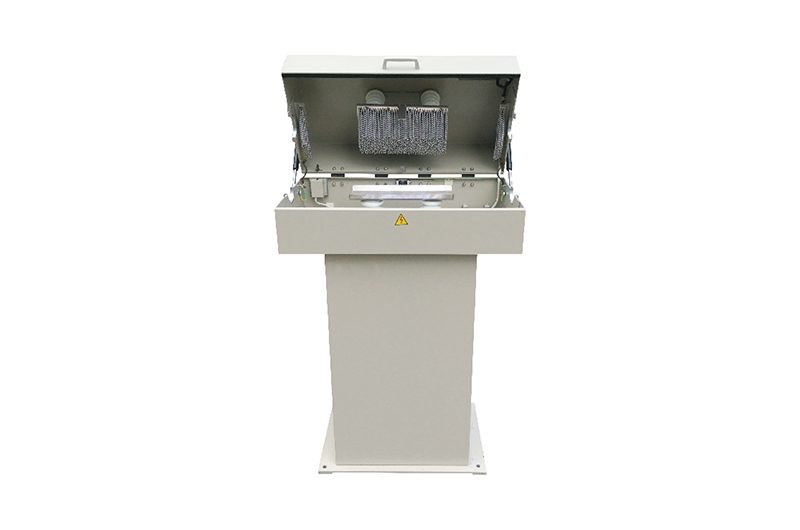

A.ST-15A Commercial Frequency AC Spark Tester
The device is for testing the intactness for insulation layer or sheath layer.
- Product Details
- Technical Parameters
- RFQ & FAQ
Product Overview
The device is for testing the intactness for insulation layer or sheath layer.
Product Images And Drawings
Technical Specifications
Technical data for the ST-15A, ST-25A, ST-25AT planetary stranding machine models.
| Parameter | ST-15A | ST-25A | ST-25AT |
|---|---|---|---|
| Voltage output | 1.0-15.0 kV | 2.0-15.0 kV | 2.0-15.0 kV |
| Voltage indication error | <5% | <5% | <5% |
| Detection sensitivity | <600 μA | <600 μA | <600 μA |
| Detection resolution | 0.05 s | 0.05 s | 0.05 s |
| Transient breakdown current | 100 mA | 50 mA | 50 mA |
| Steady short-circuit current | <20 mA | <20 mA | <20 mA |
| Maximum detection speed | 300 m/min | 300 m/min | 300 m/min |
| Maximum tested-wire overall diameter | <30 mm | <55 mm | <95 mm |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 3, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
