Multi Wire Copper Drawing Machine
The machine is for drawing multi copper wires with perfectly uniform elongation, making it the ideal preparation step for high-speed bunching and stranding processes.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is for drawing multi copper wires with perfectly uniform elongation, making it the ideal preparation step for high-speed bunching and stranding processes.
Structural Features And Configuration
Working surface of wire drawing rings and capstan rings is chromic oxide.
The drawing emulsion trough is provided with doors made of stainless steel, which prevent lubricant from overflowing.
The drawing blocks and drawing dies are lubricated and cooled by spraying.

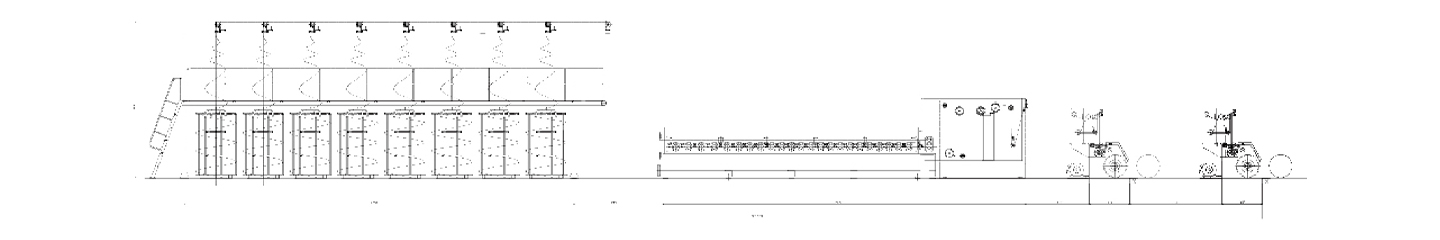

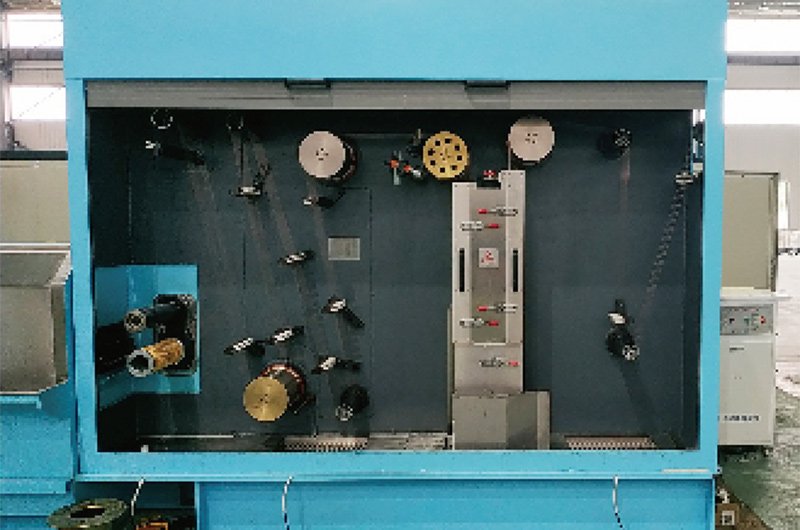

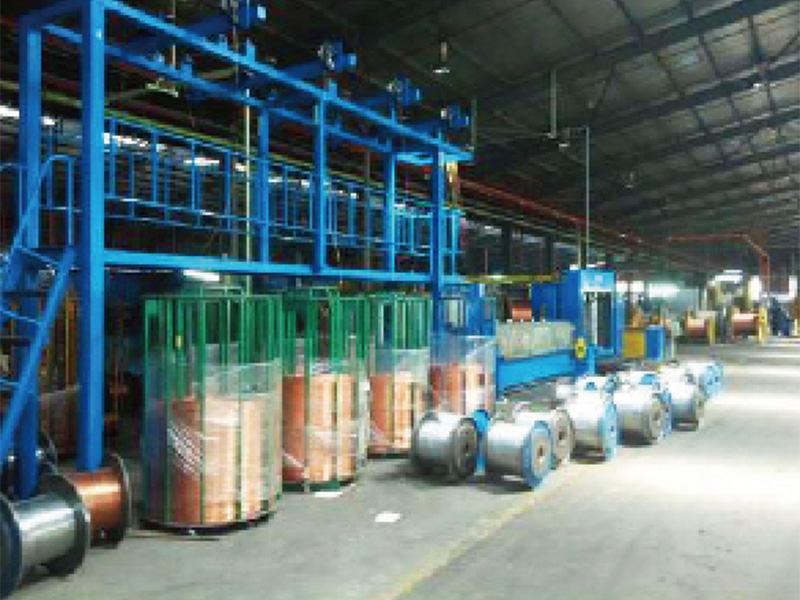

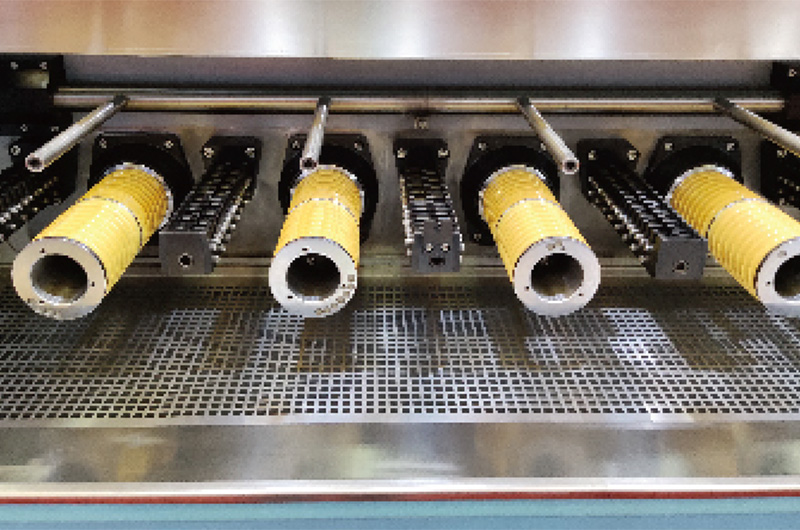

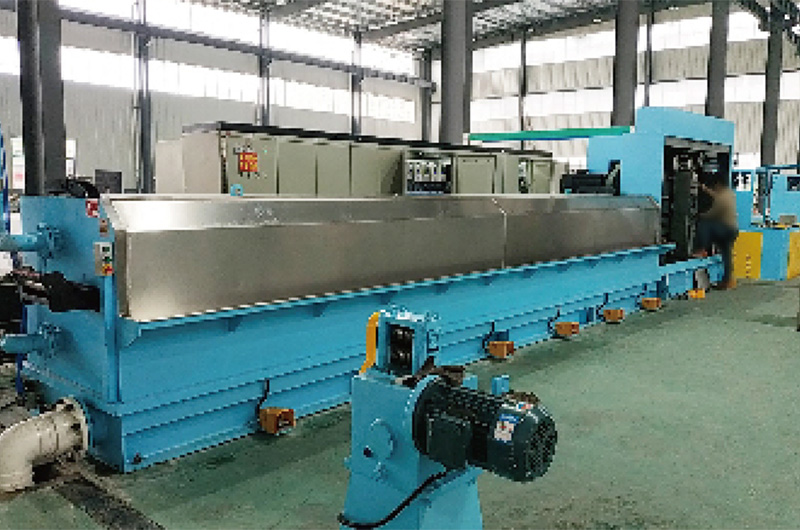

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Braiding wire
Electronic wire
Building wire
Technical Specifications
Technical data for the CT120-22/16, CT120-27/24, CT100-27/16, CT100-22/16, CT220-21/4, CT180-25/4 planetary stranding machine models.
| Model | CT120-22/16 | CT120-27/24 | CT100-27/16 | CT100-22/16 | CT100-22/16 | CT220-21/4 | CT180-25/4 |
|---|---|---|---|---|---|---|---|
| No. of wire | 14/16 | 24 | 16 | 16 | 16 | 4 | 4 |
| Inlet Dia. (mm) | Ø2.6 | Ø2.6 | Ø2.6 | Ø1.2-02.05 | Ø0.5-Ø1.2 | ||
| Outlet Dia. (mm) | 14/16*Ø0.25-Ø0.8 8*G0.5- 01.35 | Ø015-Ø0.4 | Ø015-Ø0.4 | Ø9015-Ø0.4 | Ø0.1-Ø0.4 | Ø0.15-Ø0.6 | Ø0.08-0.3 |
| Drawing speed (Max) (m/min) | 1800 | 1800 | 1800 | 1800 | 1500 | 1800 | 1800 |
| No. of dies | 19/22 | 27 | 27 | 22 | 25 | 21 | 25 |
| Transmission type | Gear | Timing belt/ Flat belt | |||||
| Annealer | Online ccntinuous annealer | ||||||
| Take up Type (Optional) | Single Spooler | ||||||
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 4, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
