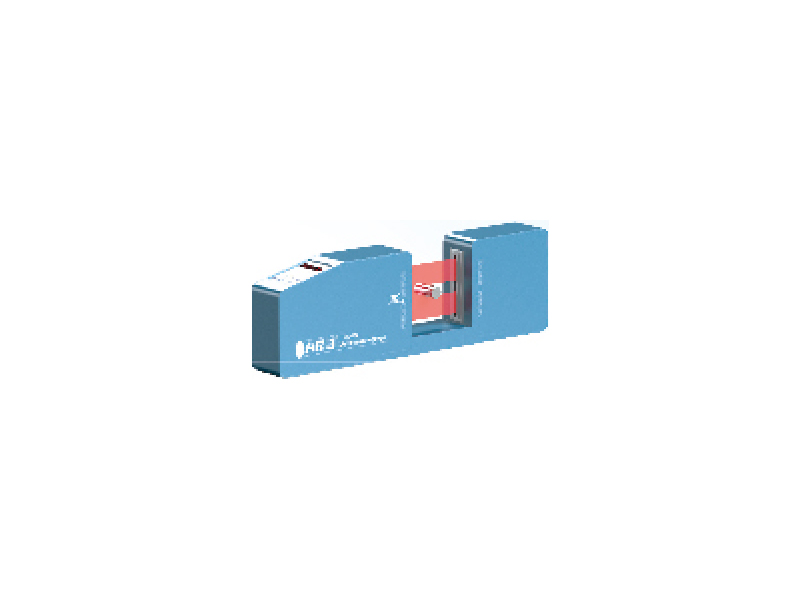

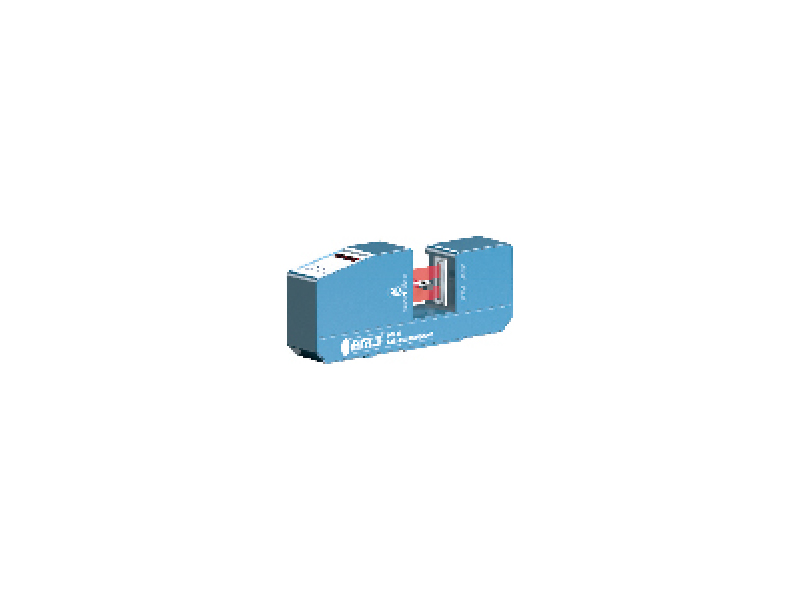

LGD Laser Diameter Gauge
The device is for testing wire and cable diameter after insulating or sheathing.
- Product Details
- Technical Parameters
- RFQ & FAQ
Product Overview
The device is for testing wire and cable diameter after insulating or sheathing.
Product Images And Drawings
Technical Specifications
Technical data for the LGD-25, LGD-60, LGD-100, LGD-05XY, LGD-10XY, LGD-25XY planetary stranding machine models.
Specification Table 1
| Model | LGD-25 | LGD-60 | LGD-100 |
|---|---|---|---|
| Measuring range | 0.1-20mm | 0.4-50mm | 0.5-90mm |
| Resolution | 1 μm | 1 μm | 1 μm |
| Accuracy | ±2 μm±0.02%*D | ±3 μm±0.02%*D | ±5 μm±0.02%*D |
| Scanning frequency | 600 Hz | 600 Hz | 600 Hz |
| Alarm output | 24V, 1A (Contact load) | 24V, 1A (Contact load) | 24V, 1A (Contact load) |
| Communication | RS-485/MODBUS | RS-485/MODBUS | RS-485/MODBUS |
| Power supply | AC100-240V (50-60 Hz) | AC100-240V (50-60 Hz) | AC100-240V (50-60 Hz) |
Specification Table 2

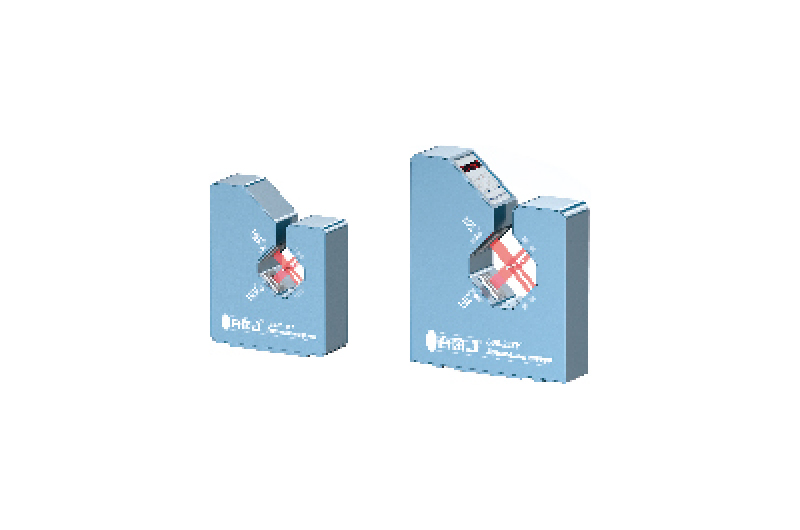

| Model | LGD-05XY | LGD-10XY | LGD-25XY |
|---|---|---|---|
| Measuring range | 0.05-5mm | 0.1-10mm | 0.1-20mm |
| Resolution | 0.1 μm | 1 μm | 1 μm |
| Accuracy | ±0.8 μm±0.02%*D | ±1 μm±0.02%*D | ±2 μm±0.02%*D |
| Repeatability | ±0.2 μm | 1 μm | ±1 μm |
| Scanning frequency | 1200Hz (single axes: 600 Hz) | ||
| Alarm output | 24V, 1A (Contact load) | ||
| Communication | RS-485/MODBUS | ||
| Power supply | AC100-240V (50-60 Hz) | ||
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 3, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
