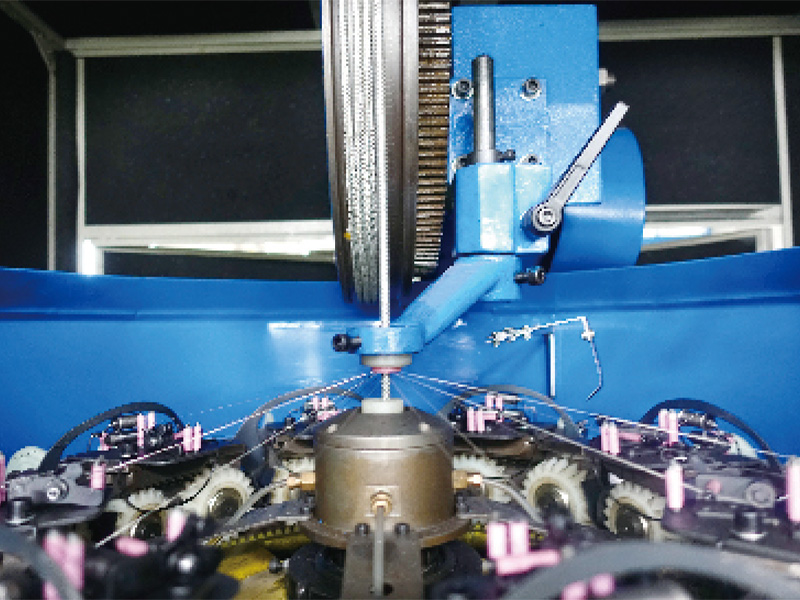

Double Layers High Speed Braiding Machine
The machine incorporates advanced tension control technologies specifically for producing high-quality computer cables, network cables (CAT6 and CAT7), coaxial cable and advanced audio cables. It is a double layer structure.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine incorporates advanced tension control technologies specifically for producing high-quality computer cables, network cables (CAT6 and CAT7), coaxial cable and advanced audio cables. It is a double layer structure.
Structural Features And Configuration
Advanced spindle system: The spindles utilize a "2 stack 2" vertical braiding type. They are equipped with an automatic lubrication system, ensuring longevity and smooth operation.
Intelligent control: The machine involves an advanced PLC and touch screen. It features stepless pitch regulation, allowing to fine-tune the pitch precisely.
Noise reduction: This machine is enclosed in a full safety cover, ensuring low noise operation and high reliability.
It is a double layer structure.

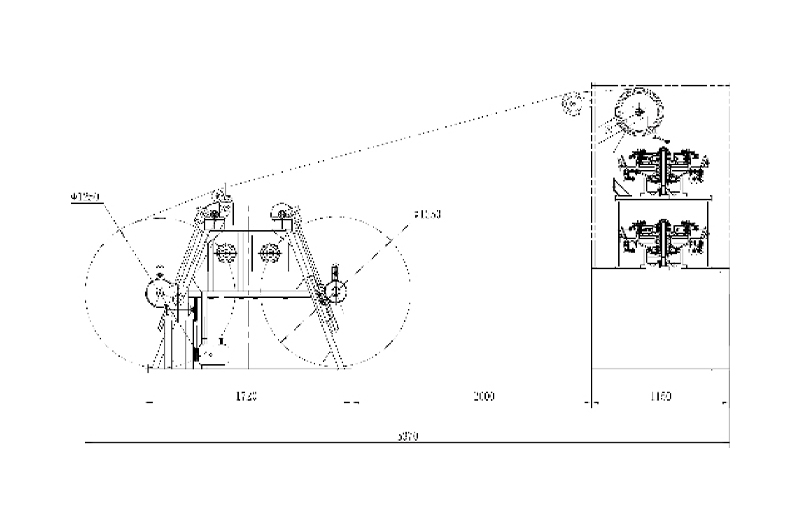

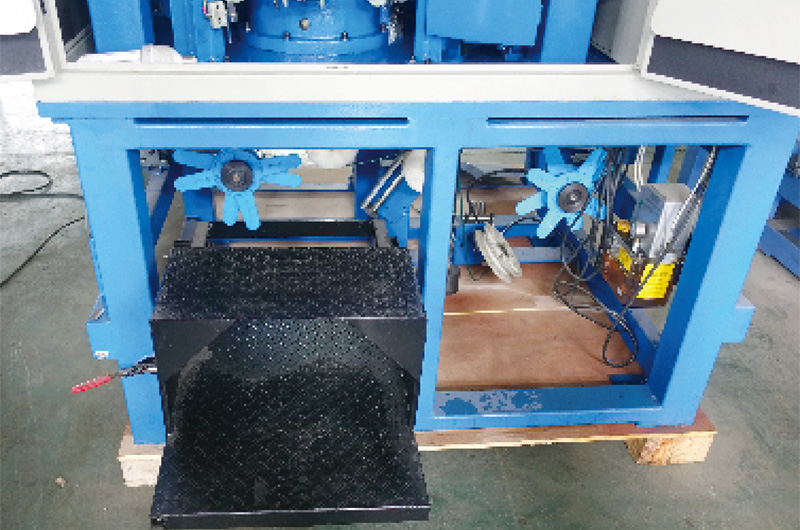

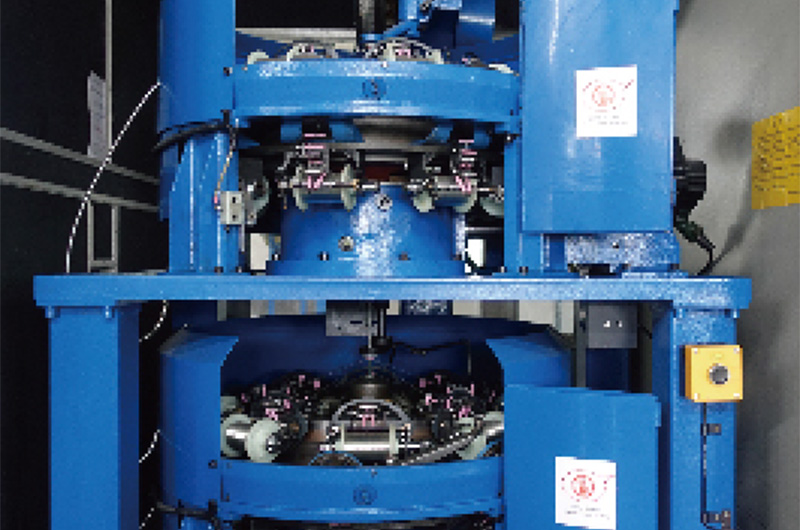

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Network cables: Shielding for CAT6, CAT6A, and CAT7 Ethernet cables.
Coaxial cables: High-density braiding for RG series coaxial cables.
Audio: Advanced shielding for professional AV cables.
Materials: Capable of braiding copper wires, aluminum-magnesium (Al-Mg) alloy wires, and stainless Steel wires.
Technical Specifications
Technical data for the 16AS/16BS, 24AS/16BS planetary stranding machine models.
| Model | 16AS/16BS | 24AS/16BS |
|---|---|---|
| Braiding way | 2 stack 2 | 2 stack 2 |
| Braiding direction | Vertical | Vertical |
| Number of spindles | 32 (16 Upper spindles, 16 lower spindles) | 24 (12 Upper spindles, 12 lower spindles) |
| Bobbin size for spindles | Ø75*Ø22*100 | Ø75*Ø22*70 |
| Rotation speed (rpm) | 10-130 | 15-100 |
| Pitch (mm) | 0-100/ Stepless adjustment | 13.3-134.5/ Stepless adjustment |
| Max. Braiding dia. (mm) | 16 | 24 |
| Overall dimension (mm) | 1800mm*1 540*2400 | 1500mm*1800mm*2350 |
| Motor power (kw) | 3.0 | 3.0 |
| Optional external pay off and take up | Ø400mm-0710mm | Ø1250-Ø1800mm |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 4, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
