Insulation Line for Building Wire and Electric Wire
The machine is applied for extruding of PVC, PE, XLPE or other normal plastic materials, mainly used for production of building wires, power cables, computer cables, UL electronic automotive wires and so on for insulation.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is applied for extruding of PVC, PE, XLPE or other normal plastic materials, mainly used for production of building wires, power cables, computer cables, UL electronic automotive wires and so on for insulation.
Structural Features And Configuration
For single layer, single layer+ color strip.
Change screw for XLPE, HDPE, LSHF material.

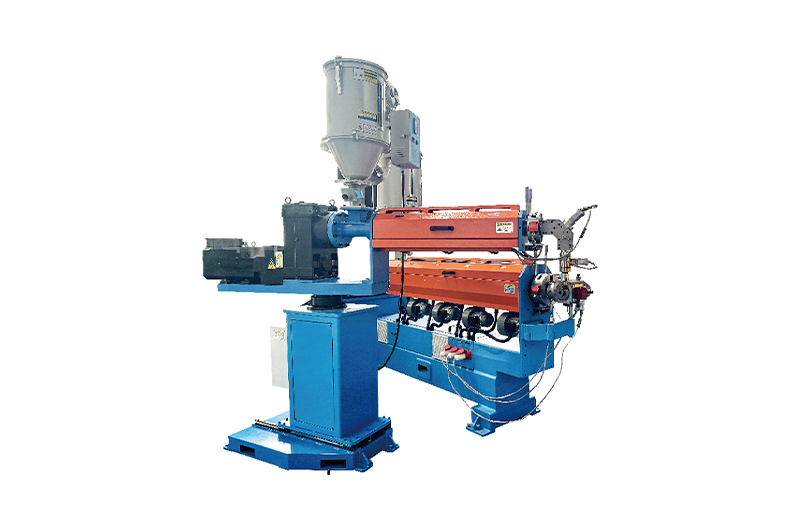

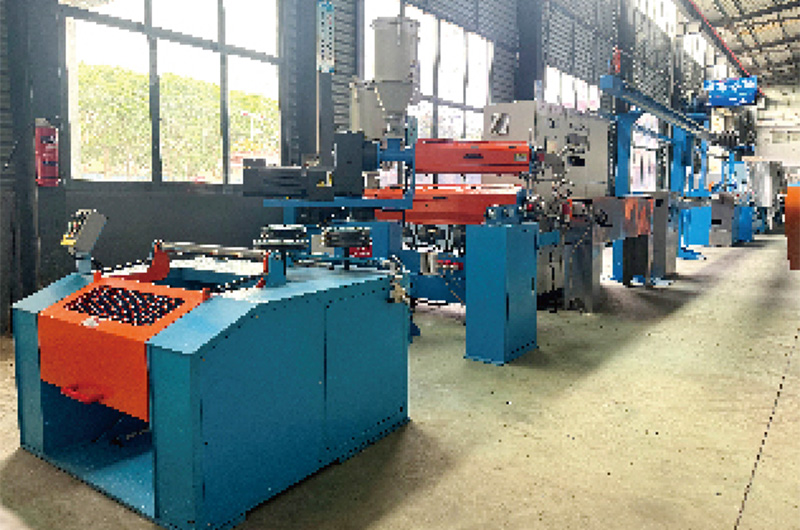

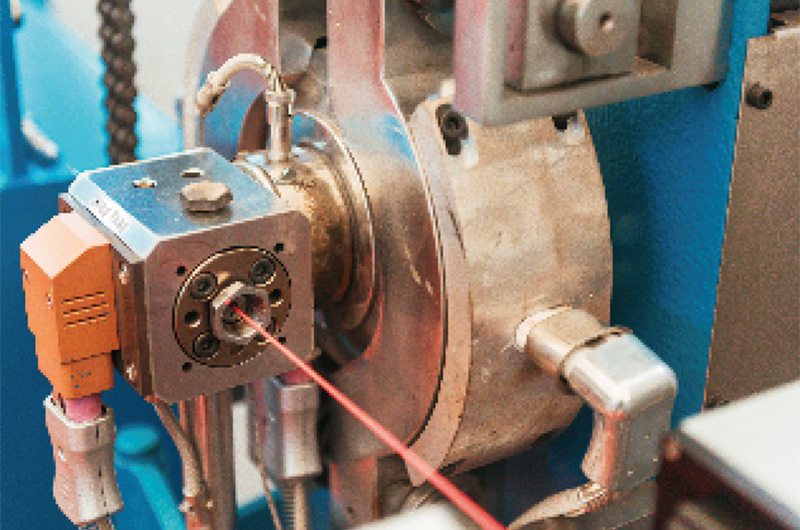

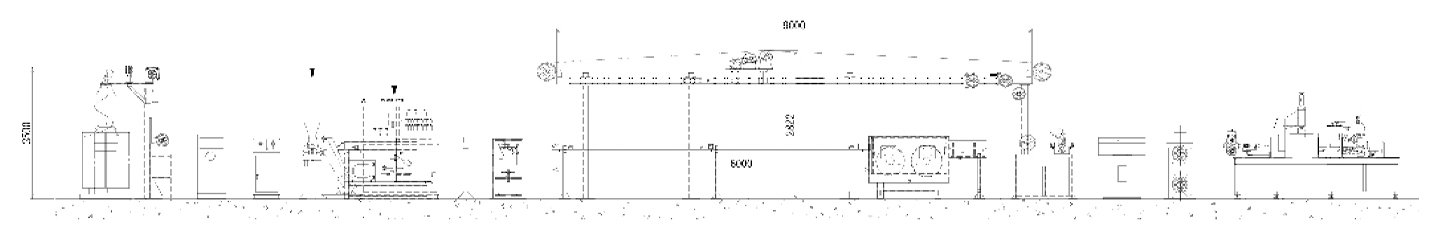

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Building wire
Automotive wire
Electronic wire
Power cable
Technical Specifications
Technical data for the CT-50+35, CT-60+35, CT-70+35, CT-80+35 planetary stranding machine models.
| Model | CT-50+35 | CT-60+35 | CT-70+35 | CT-80+35 |
|---|---|---|---|---|
| Pay-off | Motorized type single | shaft tension pay off | No-axis magnetic pi | wer tension pay-off |
| Pay-off spool | PN400-500 mm | PN500-600 mm | PN400-630 mm | PN630-800 mm |
| Screw diameter | Ø50 mm | Ø60 mm | Ø70 mm | Ø80 mm |
| Screw L/D ratio | 26:1 BM | 26:1 BM | 26:1 BM | 26:1 BM |
| Extrusion output | 70 kg/h | 120 kg/h | 220 kg/h | 300 kg/h |
| Main motor power | 11KW | 22KW | 37KW | 55KW |
| Finished Wire diameter | Ø0.6-4mm | Ø0.8-8mm | Ø1.5-12mm | Ø3.0-20mm |
| Temperature control | 5 Segment | 6 Segment | 6 Segment | 6 Segment |
| Cooling device | Folds W type/U type | Folds W type/U type | Folds W type/U type | Folds W type/U type |
| Capstan power | 4.0KW | 4.0KW | 4.0KW | 5. 5KW |
| Accumulator type | Inclined/horizontal | Horizontal | Horizontal | Horizontal |
| Accumulate length | 250m | 250m | 200m | 200m |
| Line speed | MAX 300 m/min | MAX 300 m/min | MAX 300 M/min | MAX 300 m/min |
| Take-up spool | PN400-500 | PN400-500 | PN500-630 | PN800-1250 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
