Silicone Rubber Extrusion Line
The machine is to process silicone rubber strips into high-performance cable insulation. It adopts a "Cold feed" technology with a specialized short-screw extruder and a high-temperature vulcanization oven.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is to process silicone rubber strips into high-performance cable insulation. It adopts a "Cold feed" technology with a specialized short-screw extruder and a high-temperature vulcanization oven.
Structural Features And Configuration

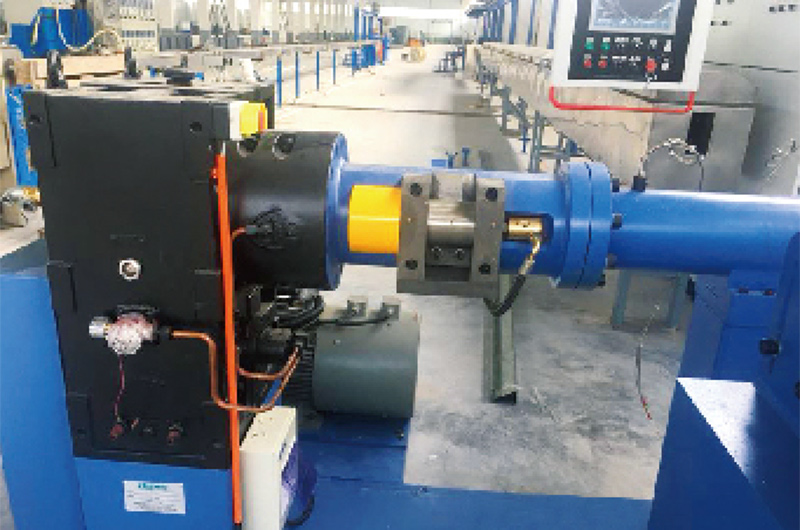

Silicone extruder (Cold feed): Screw and barrel made of alloy steel. Hardness HRC 60-63, nitriding depth 0.4-0.7 mm..
Precision crosshead: Adopt aluminum-chromium-manganese alloy steel, the material undergoes high-frequency heat treatment and surface nitriding, the flow channels are precision-machined and hard-chrome plated to achieve a high-quality surface finish.

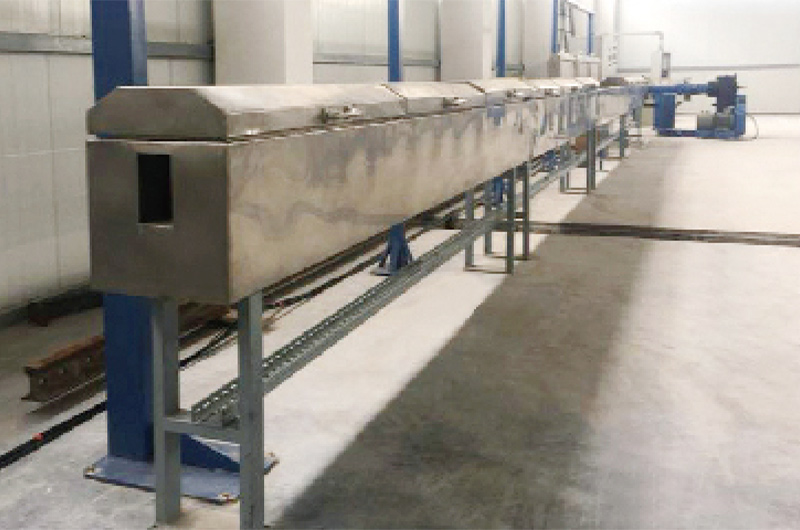

Vulcanization oven:The vulcanizing tunnel features an open-casing design with inner and outer layers made of stainless steel and rock wool insulation. Electric heating tube are used, and the temperature controller is mounted on the main control box for ease of operation.

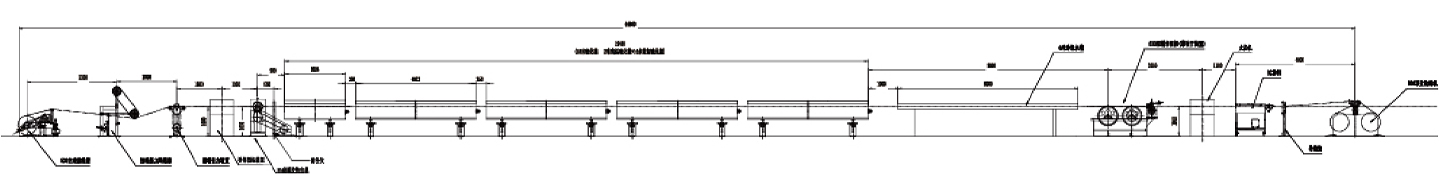

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
New energy vehicles (EV): High-voltage battery cable
Rail transit components
Electronic and electrical components
Oil and coal mining
Technical Specifications
Technical data for the Ø65, Ø90, Ø120 planetary stranding machine models.
| Type | Ø65 | Ø90 | Ø120 |
|---|---|---|---|
| Screw dia. (mm) | 65 | 90 | 120 |
| L/D ratio | 14:1 | 14:1 | 14:1 |
| Vulcanization process | Oven vulcanization, water cooling | ||
| Motor power (kw) | 15 | 22 | 55 |
| Production capacity (kg/h) | 60 | 160 | 400 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
