Fine Wire Drawing Machine
This machine is used to draw 0.1-0.4mm copper wires.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
This machine is used to draw 0.1-0.4mm copper wires.
Structural Features And Configuration
Drawing rings and capstan rings is tungsten carbide coated.
Spray lubrication, easy to operate, good cooling and lubricating effect.

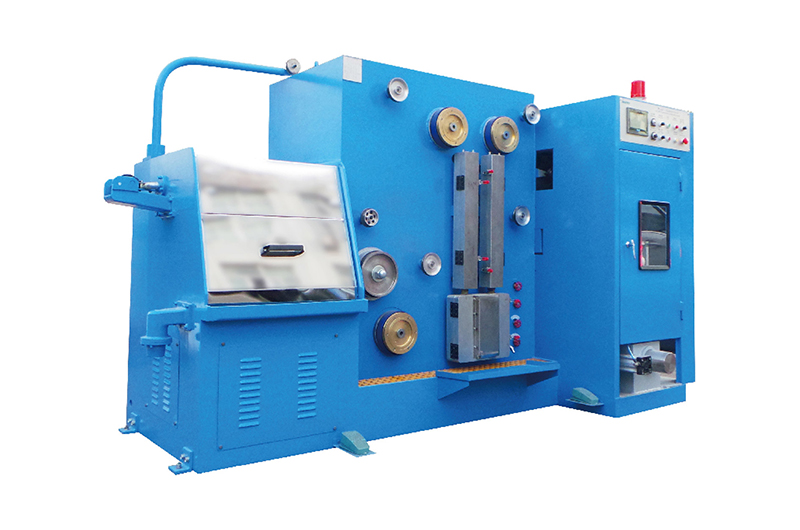

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Braiding wire
Electronic wire
Technical Specifications
Technical data for the DR-22D, DR-24D, DR-26D, DR-22DH planetary stranding machine models.
| Type | DR-22D | DR-24D | DR-26D | DR-22DH |
|---|---|---|---|---|
| Inlet Dia. (mm) | Ø0.8-Ø1.2 | Ø0.6-Ø1.2 | Ø0.8-Ø1.4 | Ø1.0-Ø1.6 |
| Outlet Dia. (mm) | Ø0.1-Ø0.5 | Ø0.08-Ø0.4 | Ø0.1-Ø0.45 | Ø0.1-Ø0.5 |
| Drawing speed (Max) (m/min) | 2500 | 2500 | 2500 | 2500 |
| No. of dies | 22 | 24 | 26 | 28 |
| Slip ratio of m/c (%) | 15%+8% | 15%+8% | 15%+8% | 13%+8% |
| Capstan | Tungsten carbide | |||
| Capstan Dia. (mm) | Ø248 | Ø248 | Ø248 | Ø248 |
| Bobbin size (mm) | Ø300*Ø215*270 | |||
| Bobbin loading&unloading type | Core screw pressing type | |||
| Main motor power (kw) | 15 | 15 | 18.5 | 18.5 |
| Spooler motor (kw) | 5.5 | 5.5 | 5.5 | 5.5 |
| Revise system | Automatic take-up control | |||
| Displacement Detection device | Pneumatic by swing arm | |||
| Transmission type | Timing belt | Flat belt | ||
| Lubrication type | Spray type | |||
| Annealer | Online continuous annealer | |||
| Take up Type (Optional) | Single Spooler/Double Spooler/Fully automatic double Spooler | |||
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
