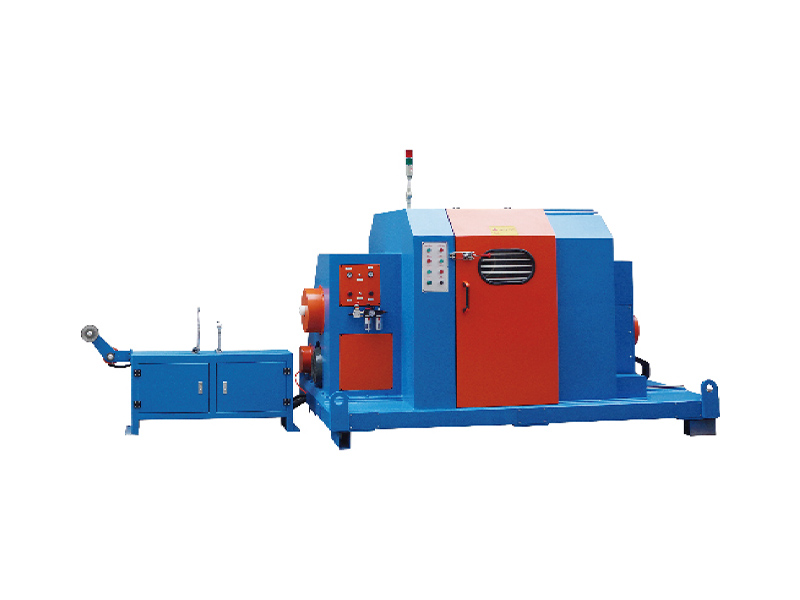

Single Twister
The machine is suitable for various power cables, CAT5 & CAT6 data cable, communication cable , unilay cables and so on.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is suitable for various power cables, CAT5 & CAT6 data cable, communication cable , unilay cables and so on.
Structural Features And Configuration
Cantilever design: The machine utilizes a cantilever arm structure. This design allows for easier threading the wire and operates at high speeds with low noise. The path is gentle on the cable, preventing damage to the insulation.
Unilay stranding capability: Specialized for making unilay wires. This means the central core and outer layers share the same lay length and direction. The result is a cable that is mechanically stable.
Control system: Equipped with a PLC and touch screen. Operators can easily preset the pitch and synchronize the taping speed with the twisting speed to ensure consistent overlap.

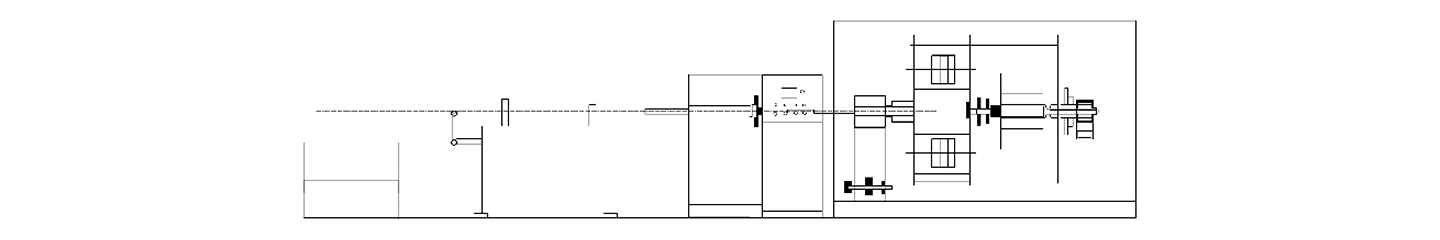

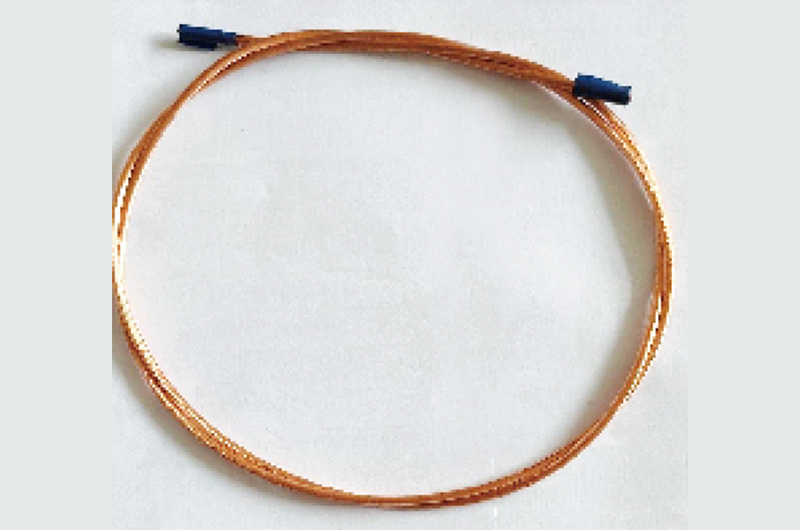

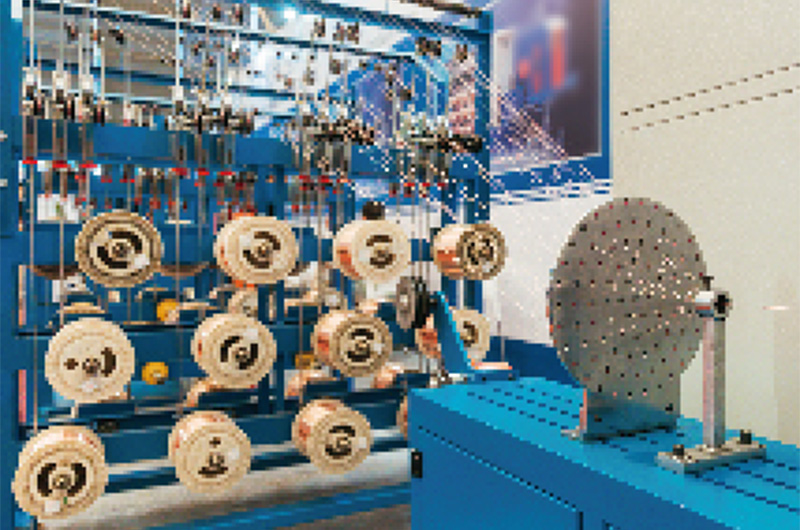

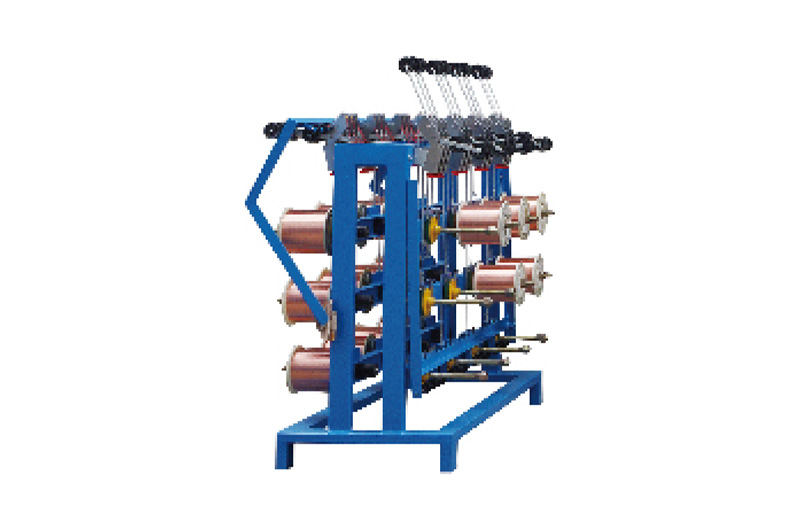

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Data cables: Essential for cabling CAT5, CAT5E, CAT6 network cables.
Power cables: For small multi-core wires requiring a round profile.
Communication: Various communication and signal transmission cables.
Taping Applications:
- Shielding: Aluminum foil / Mylar tape.
- Insulation/Separation: Tissue paper / Polyester tape.
- Fire resistance: Mica tape.
Technical Specifications
Technical data for the CT-630, CT-800, CT-1000, CT-1250 planetary stranding machine models.
| Model | CT-630 | CT-800 | CT-1000 | CT-1250 |
|---|---|---|---|---|
| Pay off (mm) | Ø400-Ø500-Ø630 | Ø400-Ø500-Ø630 | Ø400-Ø500-Ø630 | Ø400-Ø500-Ø630 |
| Take up (mm) | Ø630 | Ø800 | Ø1000 | Ø1250 |
| Inlet wire dia.(mm) | 0.6-3.0 | 0.6-3.0 | 1.0-5.0 | 1.0-5.0 |
| Max. Twisted dia. (mm) | Ø12(Soft wire), Ø6(Hard wire) | Ø15(Soft wire), Ø7(Hard wire) | Ø18(Soft wire), Ø9(Hard wire) | Ø20(Soft wire), Ø10(Hard wire) |
| Twisting pitch (mm) | 30-400 | 30-400 | 30-400 | 30-400 |
| Rotation speed (rpm) | <850 | <850 | <500 | <400 |
| Take up tension | Pneumatic tensio track, adjusted easily | |||
| Traverse type | According to bobbin rotation and reciprocating motion | |||
| Twisting direction | S or Z | |||
| Tapping type | Central or longitudinal | |||
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 4, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
