Bow Skip Type Laying Up Machine
The machine suits for the high speed laying up of 4-5 control cable and round power cable, especially showed the production efficiency when mass production, small cable can choose dual wheel capstan for high speed production, big cable choose caterpillar. Take up are separately driven by independent motor. HMI+PLC, preset the rotation speed and twist pitch.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine suits for the high speed laying up of 4-5 control cable and round power cable, especially showed the production efficiency when mass production, small cable can choose dual wheel capstan for high speed production, big cable choose caterpillar. Take up are separately driven by independent motor. HMI+PLC, preset the rotation speed and twist pitch.
Structural Features And Configuration

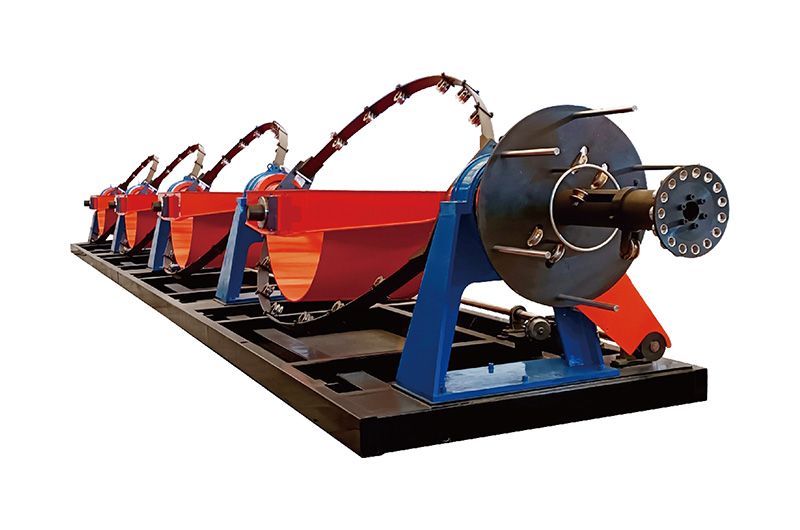

High speed bow structure: The machine uses a skip/bow design to guide the wire. The bow is lightweight and aerodynamically balanced, allowing it to rotate at high speeds with minimal vibration and energy consumption.
Flexible capstan options
(1) Dual wheel capstan: Selected for middle-sized cables to achieve the highest possible production speed.
(2) Caterpillar: Selected for bigger cables requiring stronger traction force to prevent slippage.
Smart control system (HMI + PLC)
The entire line is controlled by a PLC with a Man-Machine Interface (Touch Screen).
Preset parameters: You can input the twist pitch and rotation speed directly on the screen.
Synchronization: The system automatically synchronizes the bow speed, capstan speed, and take up speed.

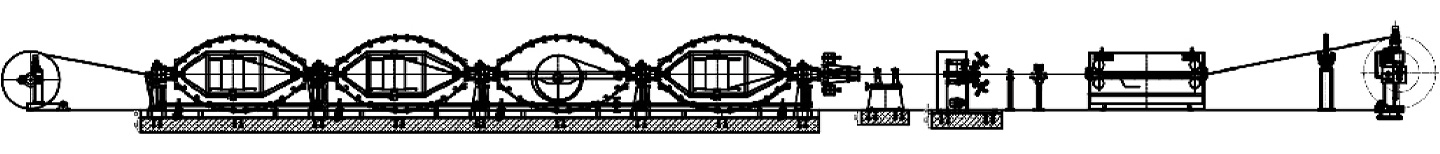

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Control cables: Efficient cabling of 4, 5, or multi-core control cables.
Power cables: Assembling of round insulated power cable cores.
Technical Specifications
Technical data for the Customized planetary stranding machine models.
| Model | Pay off (mm) | Core wire Dia. (mm) | Finished wire Dia. (mm) | Laying up number | Rotation speed (m/min) | Max, Line speed (m/min) | Take up (mm) |
|---|---|---|---|---|---|---|---|
| 1000/4,5B | 1000 | 4-15 | 45 | 4-5 | 160 | 90 | 2000 |
| 1250/4,5B | 1250 | 5-15 | 45 | 4-5 | 160 | 90 | 2500 |
| 1600/4,5B | 1600 | 5-15 | 45 | 4-5 | 120 | 90 | 2500 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
