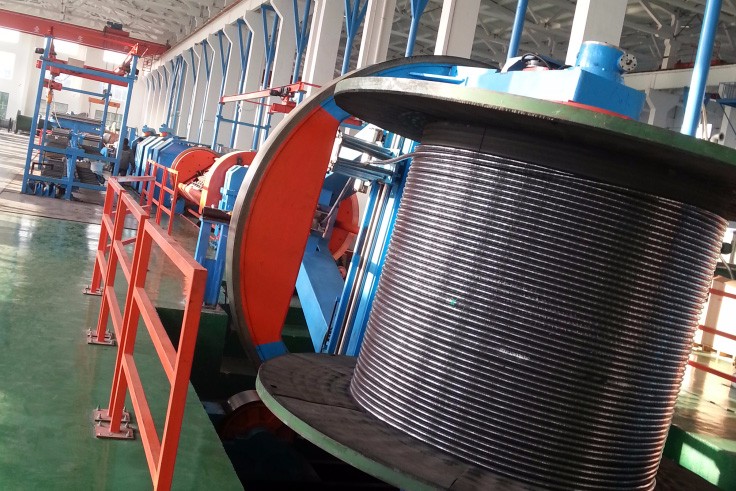

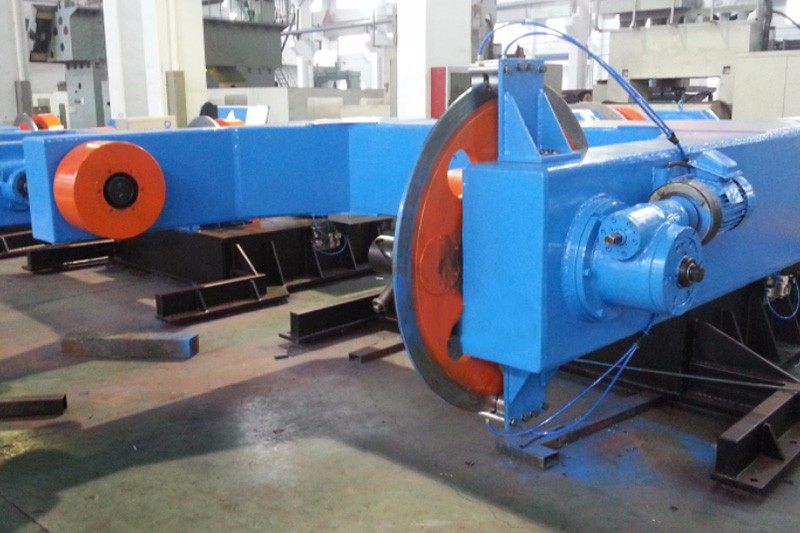

Drum strander is used for cabling power cable. It is suitable for cabling round or sector shaped cables. The line is equipped with a filling device and a non-metallic taping machine as well.
Drum strander
Application:
Drum strander is used for cabling power cables of middle & low voltage or middle high voltage and twisting sector cross section conductor of high voltage or extra high voltage. As well as for armoring with steel wire or steel tape and screening with copper wire or copper tape.
Specification:
Model | Drum O.D. (mm) | Loading capacity (KG) | Max rotate speed (rpm) |
2000 | 1500 | 8000 | 60 |
2200 | 1700 | 10000 | 60 |
2500 | 1900 | 12000 | 40 |
3150 | 2300 | 15000 | 35 |
3500 | 2300 | 25000 | 35 |
4000 | 2400 | 30000 | 25 |
4200 | 2400 | 30000 | 25 |
