Bobbin
ABS bobbin, steel bobbin

Bobbin

Cabletec is professional in producing ABS bobbin, steel bobbin. There are different kinds of ABS bobbin, steel bobbin, if you need, please contact us.
  • Product Details
  • Video Center

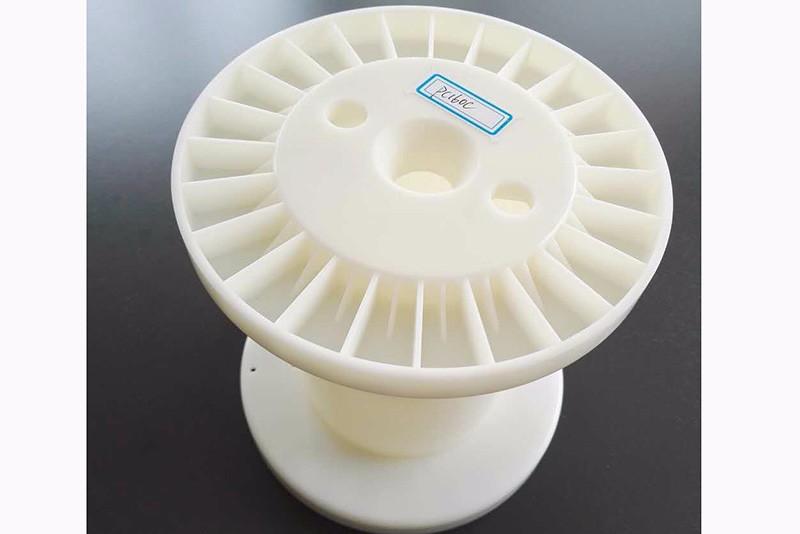

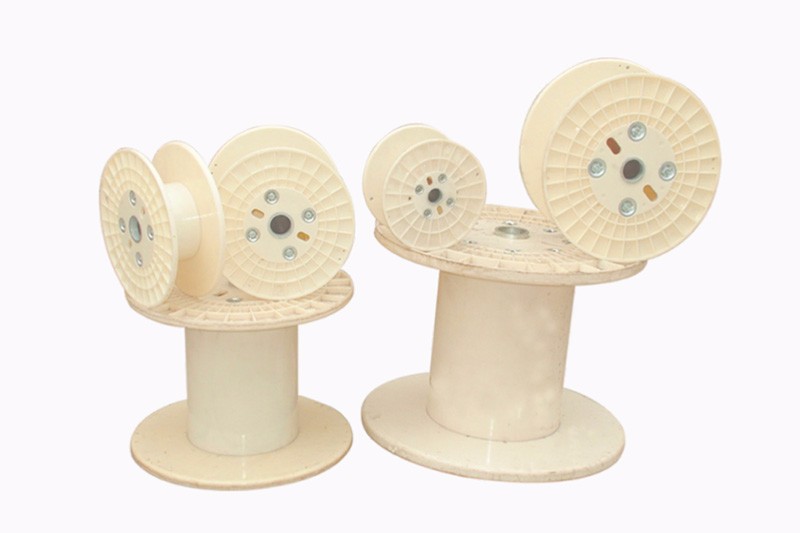

ABS bobbin:

Model

Meterial

Flange dia.

Thickness

Barrel Dia

Overall length

Inner width

Hole dia.

r

Eccentricity

PN300

PS

300

15

140

180

150

40

7.0

30

50

PN400

ABS

400

16

200

300

250

40-56

10

65

75

PN400

ABS

400

16

200

300

250

55-56

10

65

75

PN400

ABS

400

16

200

155

120

55-56

10

65

75

PN500

ABS

500

20

250

300

250

56

12.5

70

93

PN500

ABS

500

20

250

375

315

56

12.5

70

93

PN500

ABS

500

25

250

250

250

56

10.5

66

76

PN630

ABS

630

25

475

400

400

56

12

78

101

PN630

ABS

630

25

375

315

315


12

78

101

PN630

ABS

630

25

475

415

415

56

12

78

101

PN800

ABS

800

35

400

500

500

80

15

112

160

PN1000

ABS

1000

35

500

630

630

80

14




Steel bobbin:

Model

d1

d2

d3

d4

d5

e

L1

L2

L3

a

VdM³

400

400

160/200

71

36

8-16

112

300/236

250/200

15-20

60°

26.3/18.8

500

500

200/250

112

56

16-28

140

375/300

315/250

15-20

60°

51.9/36.8

560

560

224/280

112

56

16-28

140

425/335

355/280

15-20

60°

73.4/53.7

630

630

250/315

112

56

16-28

140

475/375

400/315

15-20

60°

105.1/72.5

700

710

355

160

80

28-40

160

530

450

20-40

60°

133.6

800

800

400

160

80

28-40

160

600

500

20-40

60°

188.5

1000

1000

500

160

80

28-40

160

750

630

20-40

60°

371.1

1120

1120

560

160

80

28-40

160

850

710

20-40

60°

524.6

1250

1250

630

160

80

28-40

160

950

800

20-40

60°

732.4

1400

1400

710

160

80

65

300

1060

900



1029.1

1600

1600

800

160

80

65

300

1080

1000



1508.0

1800

1800

1000

200


65

300

1320

1120



1970.1

2000

2000

1120



65

300

1500

1250



2695.5

2240

2240

1250



65

300

1700

1400



3799.1

2500

2500

1500



65

300

1900

1600



5026.5

2800

2800

1800

280

140

65

300

2120

1800



6503.1

3150

3150

1900

300

160

65

500

2300

2000



9915.6
