500 FRP Pay-off
wire pay off machine

500 FRP Pay-off

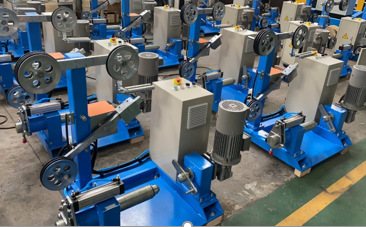

500 FRP wire pay off machine is composed of the main frame, pneumatic clamping, and so on. The wire pay off machine with wire storage function, if you need, please to contact us.
  • Product Details
  • Video Center

1. Composition:

The double-center active pay-off rack is composed of the main frame, pneumatic clamping, tension control dancer, and active pay-off system. The pay-off adopts AC variable frequency motor to drive the pay-off reel through the reducer, and is controlled by the inverter PID. Under the control of the pay-off dancer, it can automatically run forward and backward, and pay off with constant tension. The pay-off dancer adopts a swing arm structure, and the size of the pay-off tension is controlled by changing the position of the slider on the dance swing arm. During the production process, as the dancer swings, the analog proximity switch transmits the signal to the pay-off motor so that the pay-off speed always follows the production speed. With fault alarm and automatic response shutdown function.

The pay-off rack with wire storage function. The outer diameter of the guide wheel is 196 mm, the bottom diameter is 165 mm. The guide wheel groove is sprayed with ceramics.

2. Main parameters:

2.1. Bobbin size: diameter Ф 500 mm, inner hole Ф 56 mm

2.2. Bearing weight: 40 Kg

2.3. Tension range: 4 N-10 N(max)

2.4. Pay-off speed: 120 m/min

2.5. Diameter of FRP reinforcement: Ф0.4 mm~Ф0.6 mm

2.6. Motor power: 1.5 Kw Siemens AC frequency motor

2.7. Reducer: RV 63. i=5 worm gear reducer

2.8. Pneumatic clamping: SU 50*175 standard cylinder,

2.9. Pneumatic components: Airtac brand

2.10. Low-voltage electrical: Siemens brand

2.11. Intermediate relay: Schneider brand

2.12. Controller: Danfoss FC360 inverter

2.13. When the spool is rotating, the clamping cylinder has a locking function.
