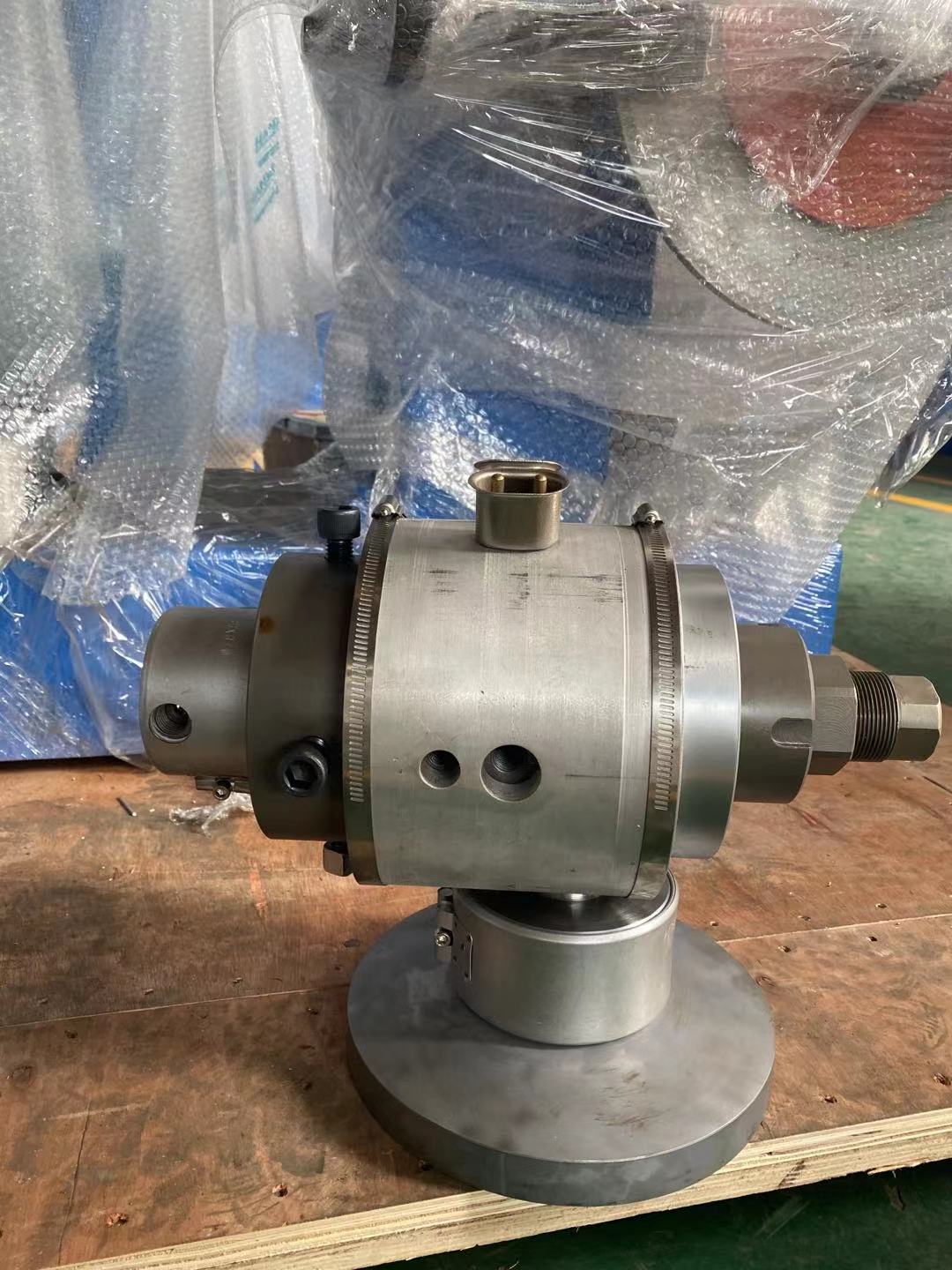

Wire co-extrusion 10mm coating round crosshead and 30mm Square coating crosshead are checking before shippment

1. Extrusion mould classification:

---According to cooperation: pressure die,tubular die,semi-tubular die

---According to pattern:self-centering,adjustable

---According to specifications:U7,U14,U30,U50,etc

2. Brief introduction

Plastic melt through the extruder’ filter plate go into the crosshead, then turn 90 degree, flow along the wire guide rod, converging into a closed ring, through the mouth mould coating on the metal conductor. As the core through the conductor guide bar continuous movement, can make wire coating produce continuous, get the continuous wire products.

3.About our extrusion crosshead

Co-extrusion self-centering Crosshead

Double Core Injection self-centering Crosshead

Apply to: ø 20,ø30,ø40,ø50 ,ø70 ETC

Material: Teflon, PE,FOAM PE,PVC, PU, TPU,TPE

Applied Diameter: ø 0.3mm--ø 20.0mm
