JLY Planetary Strander
The machine is mainly used for the twisting of copper, aluminum and ACSR, and can make fan-shaped or round compressed wire core, also can make the cabling of control cables, steel wire armoring, or copper wire shielding.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is mainly used for the twisting of copper, aluminum and ACSR, and can make fan-shaped or round compressed wire core, also can make the cabling of control cables, steel wire armoring, or copper wire shielding.
Structural Features And Configuration
Consistent tension is critical for quality. We offer three options for wire pay-off tension control to suit your budget and precision requirements:
Mechanical Friction
Magnetic Powder
Electric Brake

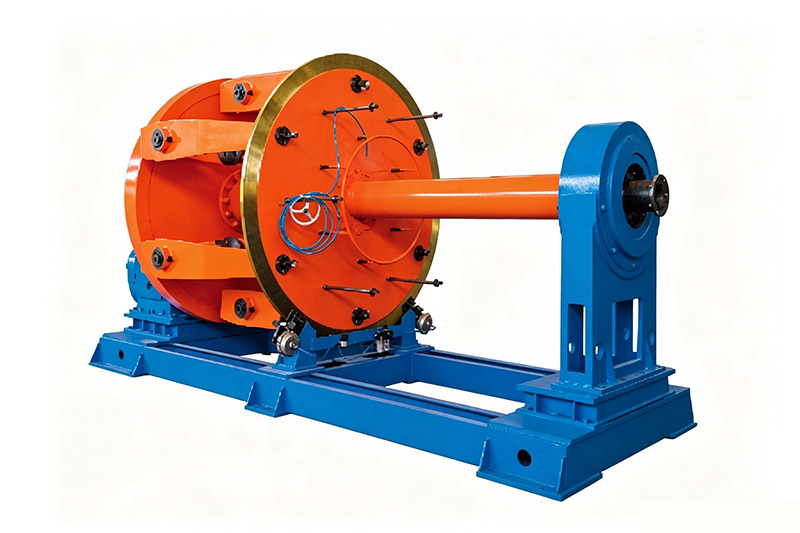

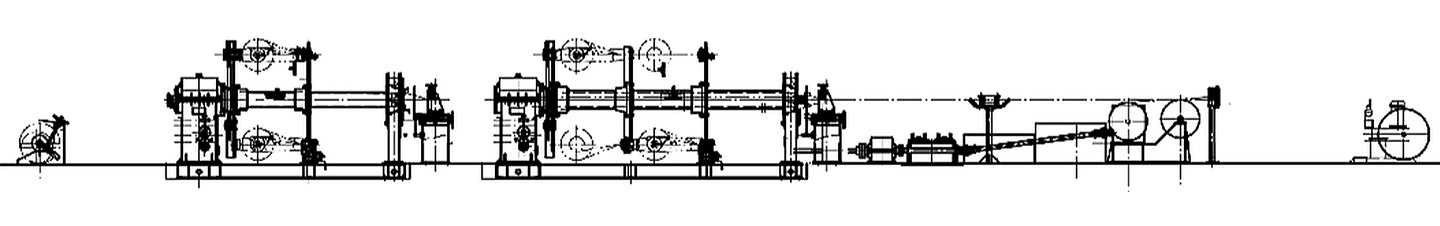

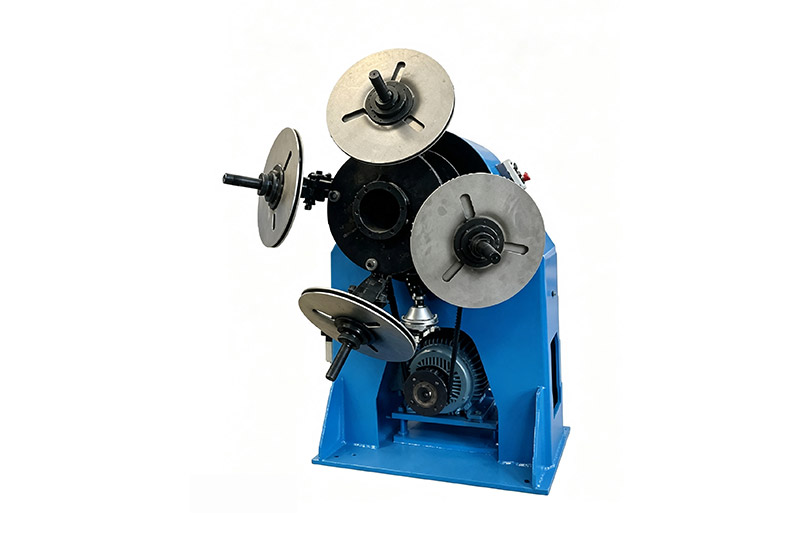

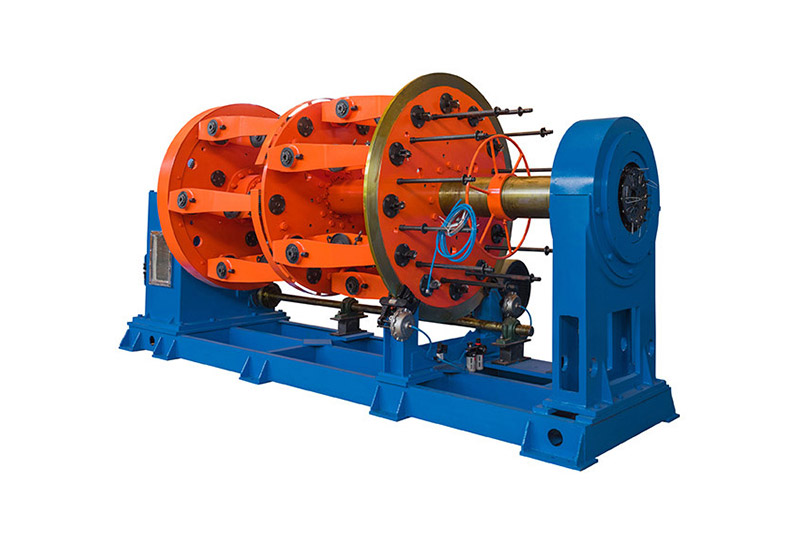

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
The machine is mainly used for the twisting of copper, aluminum and ACSR, and can make fan-shaped or round compressed wire core, also can make the cabling of control cables, steel wire armoring, or copper wire shielding.
The cage and capstan can be driven by individual motor or one motor with gear box and ground shaft, individual motor is more efficient and power saving.
Wire pay off tension is controlled by mechanical, magnetic powder or electric brake.
Planetary strander is mainly composed of pay off, stranding cages, die holder, taping device, meter counter, double wheel capstan, take up with traverse rack, transmission system and electrical control system, etc.
Planetary strander can also add steel or copper taping devices according to customers' requirements.
Technical Specifications
Technical data for the JLY-400, JLY-500 and JLY-630 planetary stranding machine models.
| Type | JLY-400 | JLY-500 | JLY-630 |
|---|---|---|---|
| Single Wire Dia. (mm) | Copper: 0.6-3.5 Aluminum: 1.5-4.0 Insulation Wire: 5 | Copper: 1.3-3.5 Aluminum: 1.5-5 Insulation Wire: 7 | Copper: 1.3-3.5 Aluminum: 1.5-5 Insulation Wire: 7 |
| Max. Stranded Dia. (mm) | 35 | 40 | 45 |
| Cage Rotation Speed (rpm) | 48-110 | 44-101 | 32-74.3 |
| Stranding Pitch (mm) | 38-645 | 42-728 | 57.8-1000 |
| Taping Rotation Speed (rpm) | 169-387 | 169-387 | 169-387 |
| Taping Pitch (mm) | 11-183 | 11-189 | 11-189 |
| Capstan Wheel (mm) | Ø1600 | Ø2000 | Ø2000 |
| Traction Speed (m/min) | 4.2-31 | 4.2-32 | 4.3-32 |
| Bobbin in the Cage | PN400 | PND500 | PND630 |
| Central Pay-Off | PN800-PN1600 | PN800-PN1600 | PN800-PN1600 |
| Take-Up | PN1000-PN2000 | PN1250-PN2500 | PN1250-PN2500 |
| Main Motor (kW) | 45 (AC) | 55 (AC) | 75 (AC) |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
How should the correct model be selected?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
Information required for quotation?
Match the required production parameters to the specifications in the technical parameter table, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source. The signed technical agreement governs the final scope and technical values.
