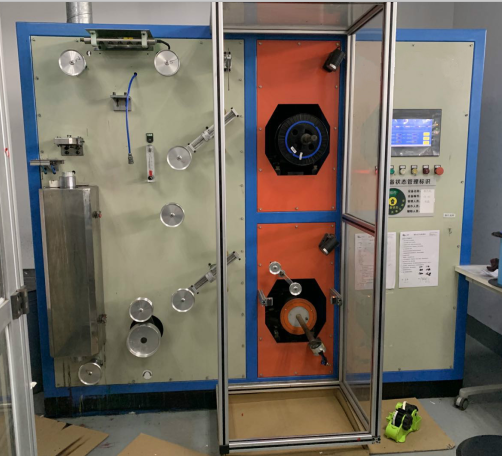

High speed optical fiber and rewinder line

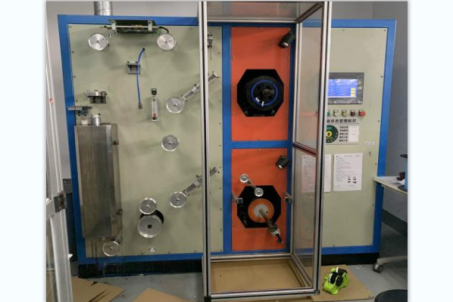

2000 high speed optical fiber and rewinder line

High speed optical fiber and rewinder line

export@chinacabletec.com
Inquiry Now
  • Product Details
  • Video Center

2000 high speed optical fiber and rewinder line

Application:

2000 type high speed optical fiber and rewinding machine suitable for the full coloring of SM, MM optical fiber. And it also can be used for the rewinding and dis-assembling of optical fiber.

Main technical indicators:

Structure speed

2000m/min

Optical fiber coloring speed

1800 m/min

Coloring and rewinding tension

0.3 - 1.5 + 0.05 N

Coloring layer thickness

3 - 5 μm

Meter counting accuracy

≤ 1‰

Max pay off and take up bobbin size

Max. Bobbin diameter 350 mm
Max. Bobbin width 300 mm
Hole diameter 25.4 mm
Weight 10 kg

Machine size

2200*1220*1910 (L * W * H) mm

Additional losses after coloring

≤0.01 db/km ( single mode fiber :wavelength 1310 nm, 1550 nm)
