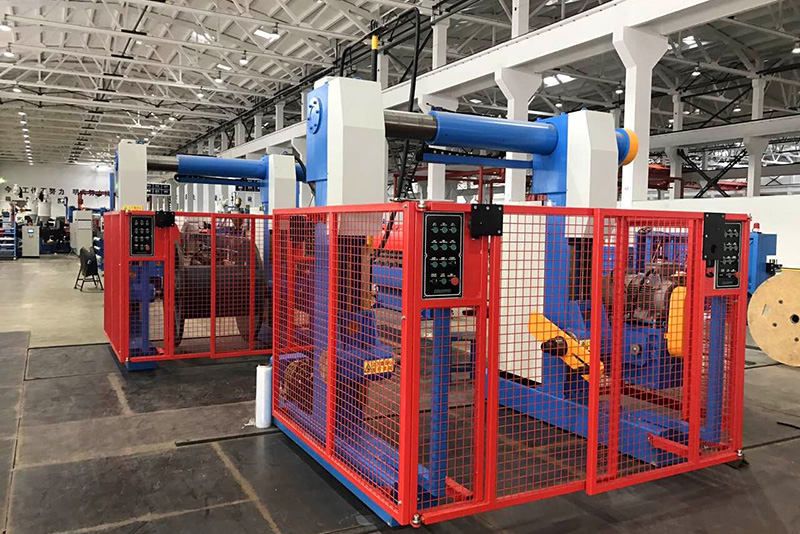

Gantry type wire pay off
Portal type wire pay off

Gantry type wire pay off

export@chinacabletec.com
Inquiry Now
  • Product Details
  • Video Center

Portal type wire pay off


Application:

Winding and realing all kinds of cable into a bobbin.


Model

Φ630/1250

800/1600

Φ1000/2000

Φ1250/2500

Φ1600/3150

Φ1600/3500

Cable Dia. (mm) Max

35

50

70

100

120

130

Bobbin flange dia. (mm)

Φ630-1250

Φ800-1600

Φ1000-2000

Φ1250-2500

Φ1600-3150

Φ1600/3500

Bobbin overall width (mm)

475-950

600-1180

750-1500

950-1900

1180-2300

1180-2300

Load capacity ( T)

3

4-8

6-10

12-15

15-20

18-20

Line speed (m/min) Max

100

80

80

65

60

50

Traverse precision (%)

1-2

1-2

1-2

1-2

1-2

1-2
