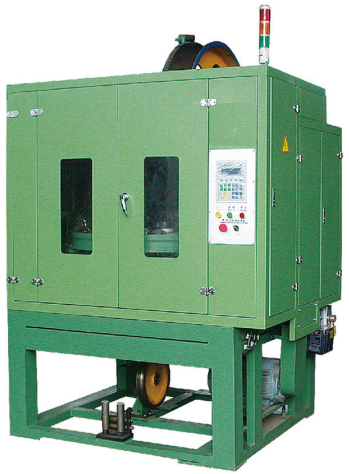

1. Technical specification:

1.1. Braiding type: 2 over 2

1.2. Braiding direction: Vertical

1.3. Number of spindles: 24pcs (up 12pcs and down 12pcs)

1.4. Range of braiding wire: 4 x Ø0.18 – 8x Ø0.40

1.5. Material of the braiding wire: Iron wire, copper wire, stainless steel wire, polyester yarn

1.6. Diameter of the core cable: MaxØ45mm(Standard ф35, ф40, ф45 a total of 3 sets of upper and lower mold)

1.7. Spindle size: ф110×ф48×100×110 （Can load copper wire≤ 5Kg), each set with 48.

1.8. Pitch: 9-138mm

1.9. Pitch adjusting type: Automatic adjustment with active traction of servo motor

1.10. Traction: Capstan wheel tractor (Traction wheel diameter Ø910mm)

1.11. Rotation speed: ≤ 50rpm, the normal production rate of about 80% of the max speed

1.12. Main power: 5.5KW (1 set)

1.13. Lubrication method: 3L oil pump automatic oil lubrication

1.14. Pay-off and take-up inside: Ф1600mm electric-driven pay off with take up

1.15. Protection cover: sealed box-type protective cover, front and rear doors can be opened.

1.16. Control model: Using braiding machine dedicated computer controller, Delta 5. 5 Kw inverter, can automatically set the speed, automatic meter, automatic oiling, broken wire, broken cable, broken taping belt, lack of oil and other automatic alarm.

1.17. Noise: ≤85dB

1.18. Dimension(L x W x H): 2200mm x 1900m x 2500mm

1.19. Weight: 3500kg
