630mm Bearing Type tubular strander for wire and cable

Tubular stranding machine is used for stranding the steel wires(Medium and low carbon steel), aluminum wires and copper wires, and also suitable for small cross section insulation wires cabling.

1. Main parameter of the machine

1.1. Diameter of single wire: Copper Φ1.2-Φ3.5mm, Aluminum Φ1.5-Φ5.0mm, Steel Φ1.2-Φ3.5mm, Insulation wire core Φ1.5-Φ7.0mm

1.2. Max stranding diameter: Φ15mm

1.3. Range of Stranding pitch: 43～439mm

1.4. Max rotation speed: 450rpm

1.5. Speed range of capstan: 15～110m/min

1.6. Diameter of capstan: Φ1250mm( double capstan)

1.7. Cradle size: PND630 (Bobbin drawing supplied by clients)

1.8. Main motor power: 45KW

1.9. Dimension: 29m×3m×2m

2. Equipment components

2.1. φ630 Pay–off stand 1Set

2.2. 6 Stranding cages(include stand and cover) 1 Set

2.3. Die holder(include wire break protect) 1 Set

2.4. φ1250 Double capstan 1 Set

2.5. Meter counter 1 Set

2.6. Transmission system 1 Set

2.7. Electrical control system 1 Set

2.8. 36-stage gearbox 1 Set

2.9. φ1600 Take-up and traversing stand 1 Set

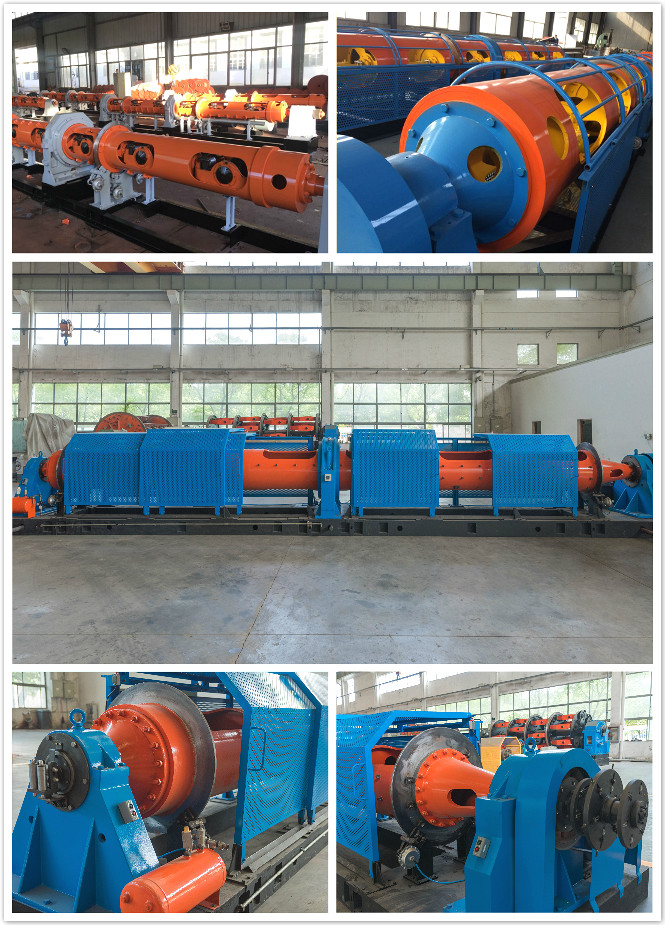

Here is a picture of the tubular stranding machine.
