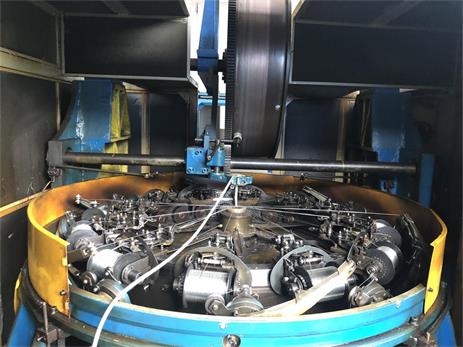

24A High speed braiding machine
No. | Name | Unit | Technique data |
24A | |||
1 | Braiding type | over | 2×2 |
2 | Braiding direction | Vertical | |
3 | The volume of upper spindle | piece | 12 |
The volume of lower spindle | piece | 12 | |
5 | Range of braiding silk | 4×ф0.08~9×ф0.20 | |
6 | Material of braiding silk | Aluminum-magnesium alloy wire, glass wire, copper wire, stainless steel wire, polyester yarn | |
7 | Braiding diameter range | Maximum ф24mm, if more than ф20mm recommended 32A high-speed weaving machine, such as with 24A high-speed weaving machine, cable quality may not meet the national or industry standards. (Standard ф7.8, ф9, ф12 a total of 3 sets of upper and lower mold) | |
8 | Wire spindle size | ф75×ф22×71×100 (Can be installed copper ≤ 1.5Kg), each with 32 | |
9 | Range of braiding pitch | mm | 13.4-135 mm |
10 | Pitch adjusted mode | Gear adjustment, with a full set of pitch gears | |
11 | Traction mode | Wheeled traction, traction wheel diameter ф639 | |
12 | Rotation speed | ≤ 100rpm, the normal production rate of about 80% of the maximum speed | |
13 | Main power | kw | 3.0 (1 set) |
14 | Taping device | 1, can be covered with aluminum park, bronze | |
15 | Lubrication method | 3L oil pump automatic oil lubrication | |
16 | Built-in pay-off and take-up bobbin diameter | ≤ ф800mm, for the cradle manual shaft or Outer pay off rack | |
17 | Protective cover | Sealed box-type protective cover, front and rear doors can be opened | |
18 | Control mode | Using braiding machine dedicated computer controller, Delta 3.7Kw inverter, can automatically set the speed, automatic meter, automatic oiling, broken wire, broken cable, broken belt, lack of oil and other automatic alarm. | |
19 | Noise | ≤ 85dB | |
20 | Dimension | 1700 × 1700 × 2500mm (L × W × H) | |
21 | Weight | 1250Kg |
