FEP/PFA Tube Extrusion Line
This extrusion line is to extrude precise PFA or FEP tube.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
This extrusion line is to extrude precise PFA or FEP tube.
Structural Features And Configuration
The screw design is optimized for the rheology of fluoroplastics to ensure transparency and prevent bubbles.

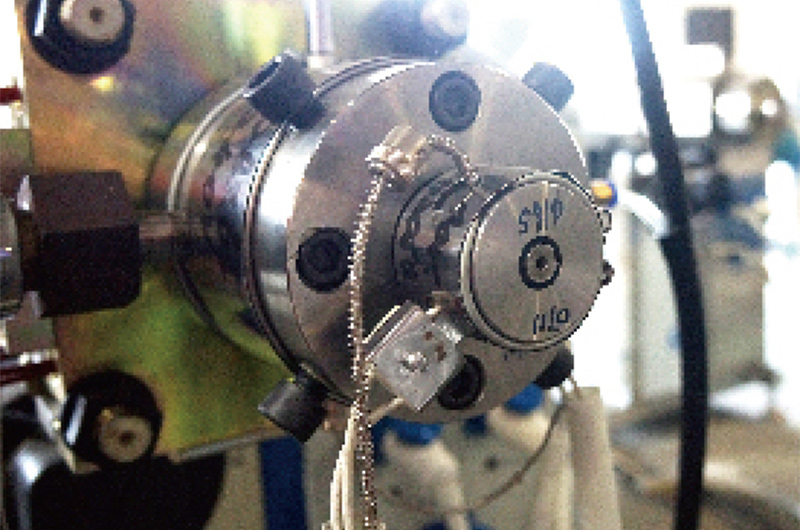

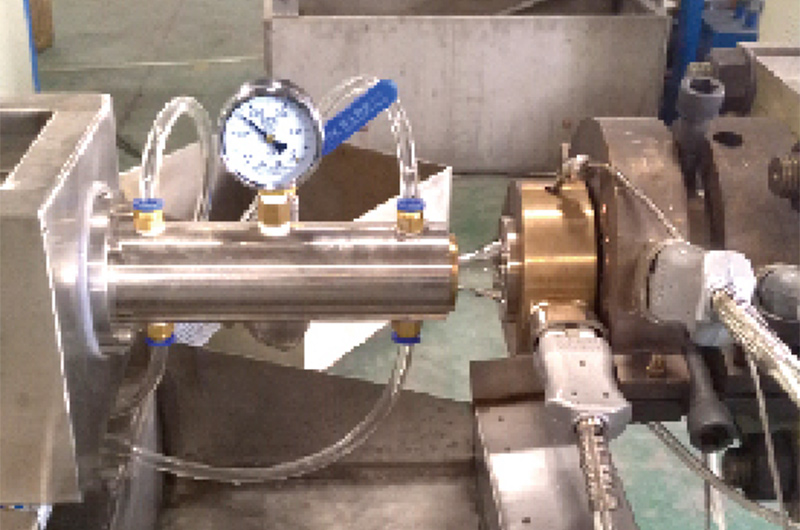

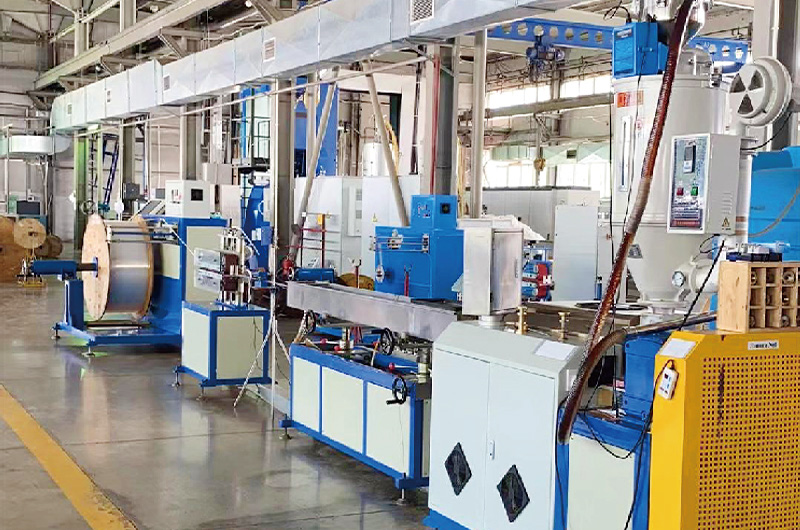

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Medical tube
Technical Specifications
Technical data for the 35mm, 55mm planetary stranding machine models.
| Model | Material | Tube Product | Power | Wall Thickness | Line Speed |
|---|---|---|---|---|---|
| 35mm | FEP PFA | 3-12.7 mm | 15 KW | 0.25-0.4mm | 0.6-3 m/min |
| 55mm | FEP PFA | 12-40 mm | 25 KW | 0.25-0.4mm | 0.6-3 m/min |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
