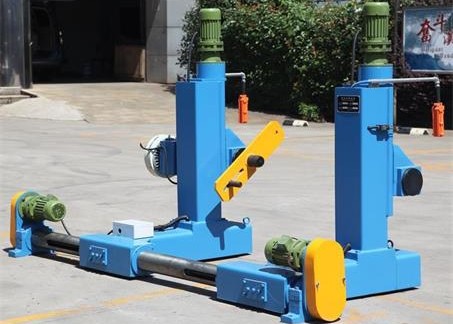

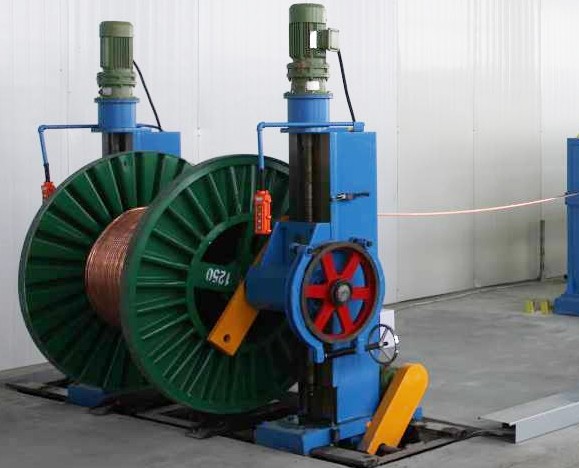

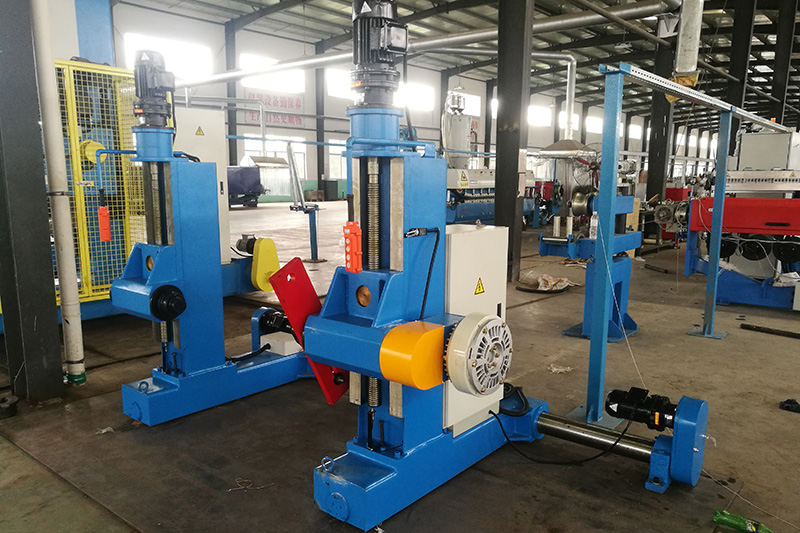

Column type wire pay off
Application:
Suitable for winding and reeling wire and cable.
Model | Φ1250 | φ1600 | φ2000 | φ2500 |
Cable Dia. Max (mm) | 25 | 35 | 50 | 60 |
Bobbin Flange Dia. (mm) | PN800-1250 | PN 800-1600 | PN 1250-2000 | PN 1600-2500 |
Bobbin outer width (mm) | 600-950 | 600-1180 | 950-1500 | 1180-2300 |
Load capacity (T) Max | 4 | 5 | 10 | 12 |
Take up speed (RPM) | 18.8-47.6 | 18.8 - 47.6 | 6 - 15.5 | 6 - 15.5 |
Take up motor | JLJ132-40/4 | JLJ132-40/4 | JLJ160-60/6 | JLJ160-60/6 |
Lift motor (kw) | 1.1 | 1.1 | 1.5 | 1.5 |
Moving motor (kw) | 0.75 | 0.75 | 1.1 | 1.1 |
Traverse pitch (mm) | 5-40 | 5-40 | 10-80 | 10-100 |
