Aluminum Continuous Extrusion Machine
The machine is designed to produce aluminum flat wire, aluminum busbar.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is designed to produce aluminum flat wire, aluminum busbar.
Structural Features And Configuration

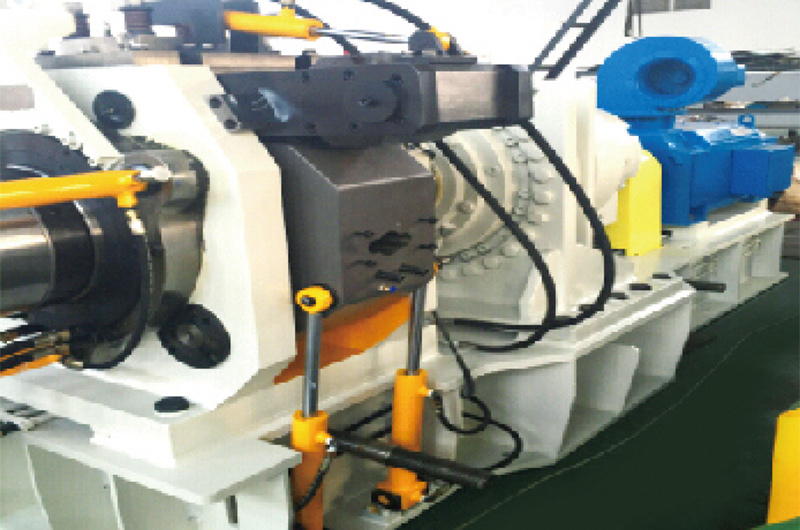

The operation section consists of compaction roller, extrusion wheel, cavity and stock guide. There is a annular groove around the extrusion wheel. The sectional dimension and shape of the product depends upon the die. The products of different specifications can be produced through simple change of dies.
Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
For the production of various aluminum tubes for condensers in automobiles, air conditioners, refrigerators, and other applications.
Technical Specifications
Technical data for the LLJ300, LLJ350, LLJ400 planetary stranding machine models.
| Main Technical Parameters | LLJ300 | LLJ350 | LLJ400 |
|---|---|---|---|
| Extrusion wheel nominal diameter (mm) | 300 | 350 | 400 |
| Main motor power (kw) | 110 | 180 | 250 |
| Extrusion machine speed (rpm) | 22.5 | 16 | 12.5 |
| Types of materials | Pure aluminum, aluminum alloy | ||
| Rod diameter (mm) | 9.5/12 | 15 | 20 |
| Product scope of section (mm²) | 5-150 | 10-600 | 200-1800 |
| Product maximum width | Max. 30 mm wide round bar, pipe diameter 20mm | Max. 60 mm wide round bar, pipe diameter 30mm | Max. 170 mm wide round bar, pipe diameter 80mm |
| Average productivity (kg/h) | 230 | 450 | 500 |
| Material overflow rate | 0 | 0 | 1-3% |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
