Aluminum Rod Rewinding Machine
The machine is for rewinding aluminum rod.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is for rewinding aluminum rod.
Structural Features And Configuration
Weight: 2-2.2 Ton/ coil.
Take up speed: 105 RPM (v=2-3 m/s).
Take up motor: 22 KW (AC motor).
Traverse motor: 2 KW (Servo motor).

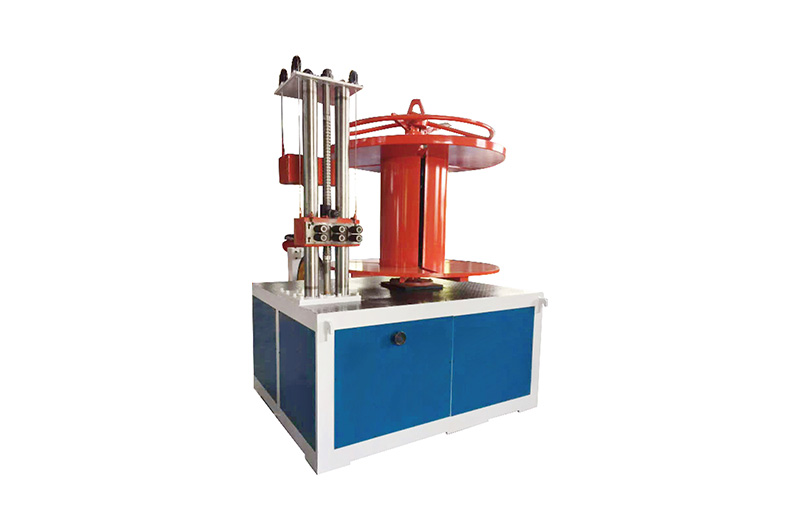

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
9.5mm Aluminum rod
Technical Specifications
Technical data for the Catalog-listed values included below planetary stranding machine models.
| Parameter | Catalog-listed value |
|---|---|
| Coil weight | 2-2.2 ton/coil |
| Take-up speed | 105 rpm (catalog also lists v = 2-3 m/s) |
| Take-up motor | 22 kW AC motor |
| Traverse motor | 2 kW servo motor |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 4, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
