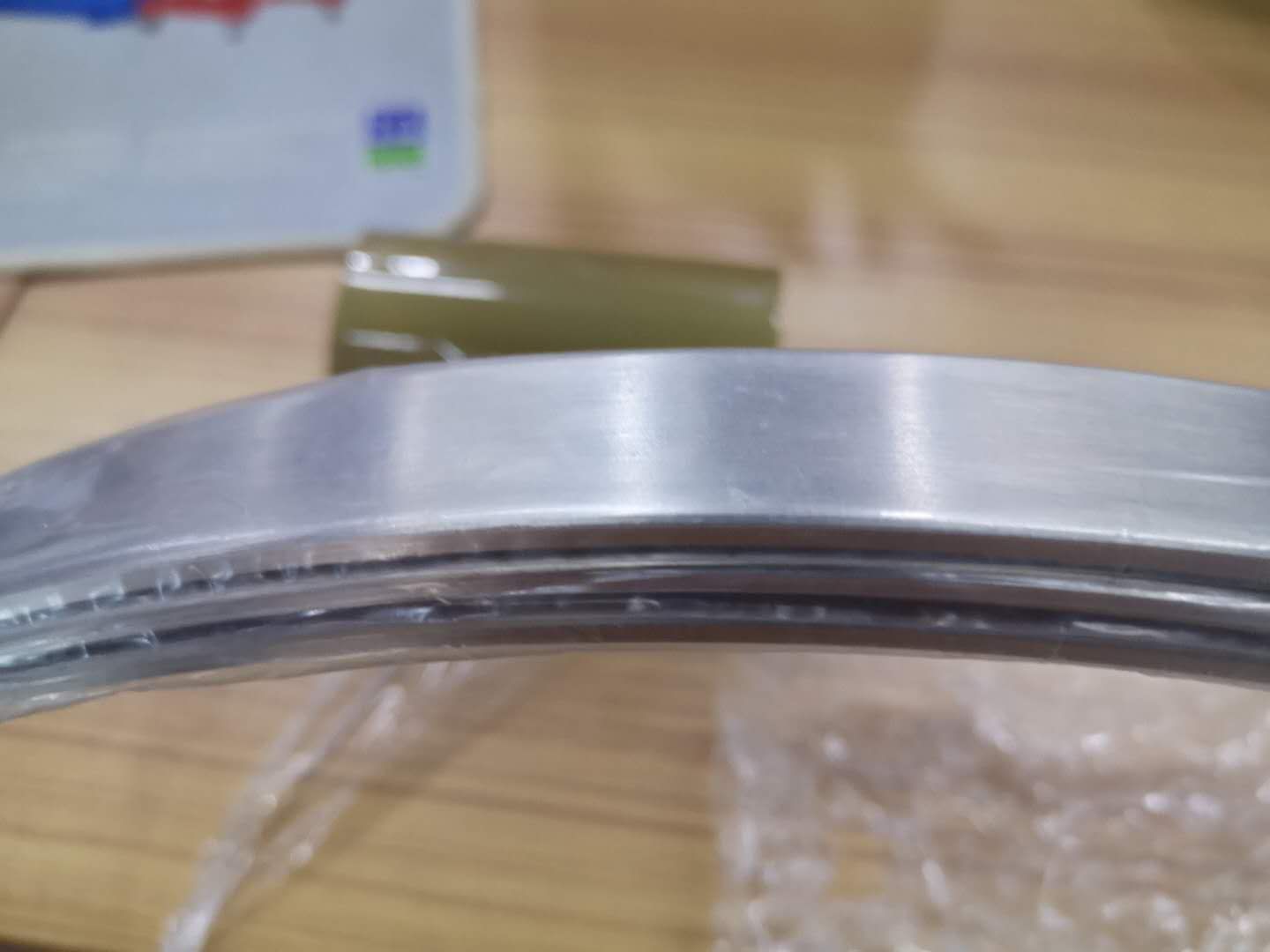

Nickel Tape of Drawing Machine Delivery
 Nov 30, 2020|View:516

400/13 high-speed copper wire drawing with two disc

Applicable: The 400/13 high-speed copper wire drawing machine draws a Ф8mm copper rod into a Ф1.4mm-Ф3.8mm copper wire. The wire drawing wheel adopts a row arrangement, continuous drawing, continuous annealing, mechanical and electrical speed balanced matching, convenient operation, automatic reel changing without stopping. This machine has the advantages of convenient operation, high production efficiency and good product quality.

1.Main technical parameters of the equipment

1.1. Max rod diameter: Φ8mm

1.2. Outlet diameter: Φ1.0mm-Φ3.8mm

1.3. Max mechanical speed: 20m/s

1.4. Pulling drum diameter: Φ400mm

1.5. The most tracks of stretching up: 13 tracks

1.6. Max length of the accumulator: 7m

1.7. Take-up reel specifications: PND500, PND630

1.8. Drum speed ratio 1.4~1.2 (2-12 mode), 13 mode adjustable.

1.9. Wire drawing machine motor: 160KW 1000 r/min DC

1.10. Double-disc take-up motor: 15KW 1500 r/min AC

1.11. Max specification of the mold: Φ53×35 (national standard)

1.12. Equipment noise: ≤85 decibels (excluding national standard and motor noise)
