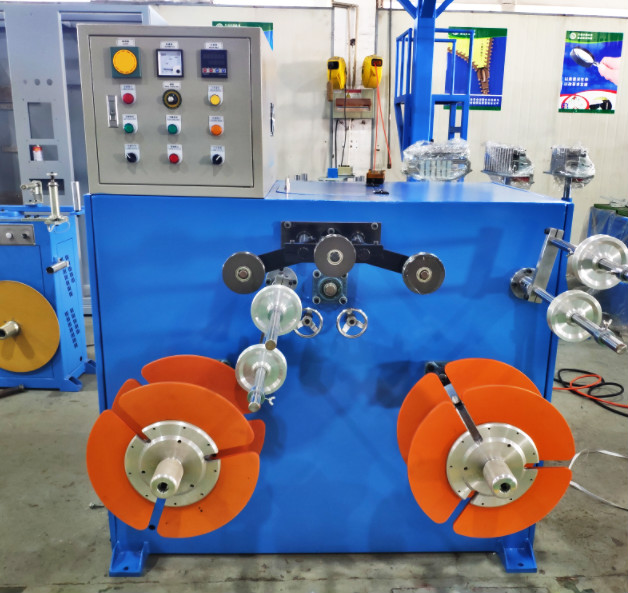

Middle cross-section coiling machine ready for dispatch
Middle cross-section coiling machine ready for dispatch
1. Main components brand:
1.1. Motor: Siemens
1.2. Inverter: Siemens
1.3. Low voltage electrical: Schneider
1.4. Pneumatic system: SMC brand
1.5. Bearing: NSK
1.6. Power: 380V/3PH/50HZ, 220V/1PH/50HZ
1.7. Machine Color: RAL5015 Blue
1.8. Operation direction: From left to right
2. Equipment consist:
2.1. European style high-precision meter-counting device
2.1.1. Max line speed: 300m/min;
2.1.2. Range of testing cable: 2.0-30mm;
2.1.3. Measuring accuracy: +/- 0.15%;
2.1.4. Output setting: two preset meters number output;
2.1.5. Induction method: rotary encoder;
2.1.6. Meter-count structure: four wheel
2.2. Middle cross-section coiling machine with two coiler heads
2.2.1. Winding mode: Automatic winding;
2.2.2. Rotation speed of principle machine: 0-300 rpm;
2.2.3. Two sets coiler heads: Inside diameter of cable bundle: Φ160mm, outside diameter of cable bundle:Φ400mm, Height of cable bundle: 100-180mm, Number of cable bundle slots: 3 slots
2.2.4. Traverse: automatic traverse (line push line traverse), it’s used for round wires.
2.2.5. Power of motor: 5HP Variable frequency control;
2.2.6. Scope of Application: 10 mm2-70 mm2electric wire or the cables diameter under 20mm
