500/48+48 steel wire armoring machine final assembly

Have already visited: 1909/30/2019

500-32+40 planetary stranding machine



1. Technical performance of the equipment

This machine is mainly used to control cable cabling.

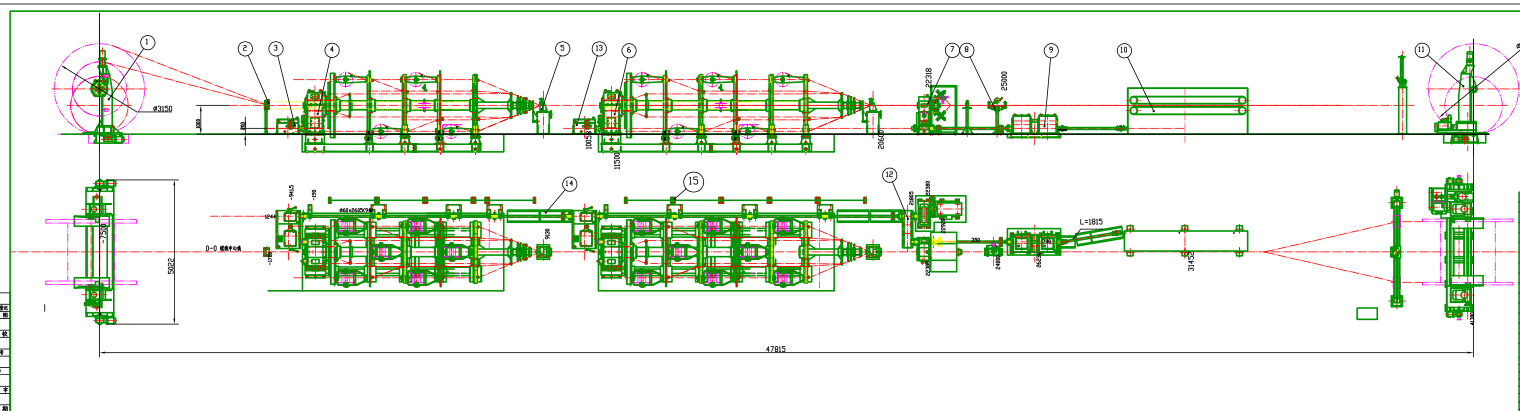

2. Equipment composition

2.1. Φ2500mm Portal moving type pay-off                 1 set

2.2. 500/48 Cage                                       1 set

2.3. 500/48 cage                                        1 set

2.4. Die holder                                          2 sets

2.5. Φ400/4 high speed taping machine                   1 set

2.6. Vertical mechanical electronic meter counter            1 set

2.7. 36-speed capstan gearbox assembly                   1 set

2.8. 50KN Caterpillar                                     1 set

2.9. Drive shaft assembly                                 1 set

2.10. Safety guard                                       1 set

2.11. Φ2500 Portal moving type take up and row-line rack    1 set

2.12. Electrical control assembly                           1 set

Pls feel free to ask or get a quote via

jessie@chinacabletec.com

Mobile/wechat/whatsapp: +0086 13815078736

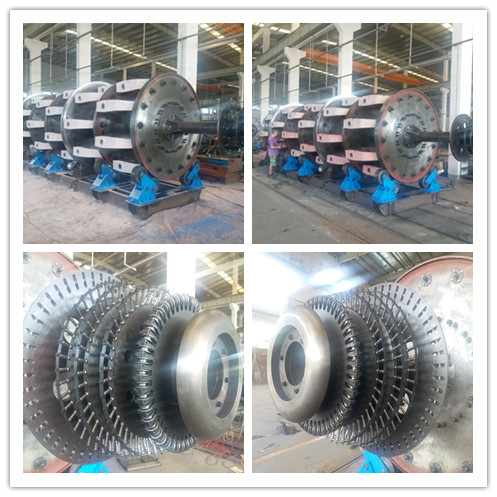

500 48+48 steel wire armoring machine.jpg
