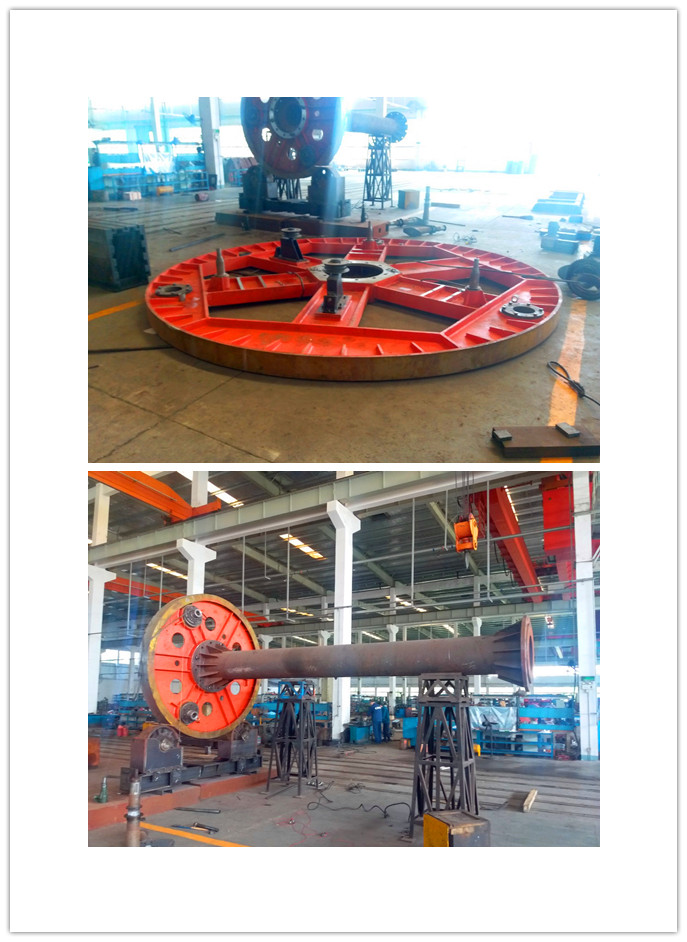

2000 mm Wire and Cable Laying Up Machine Final Assembly
 Apr 23, 2019|View:561

1. Application

Laying up machine is mainly used for the cabling of power cables or control cables, and the stranded cables may be round or fan-shaped cables.

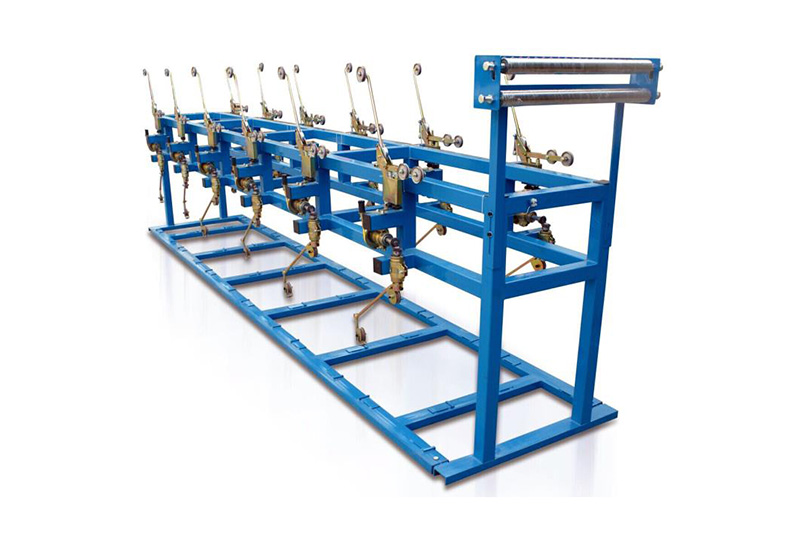

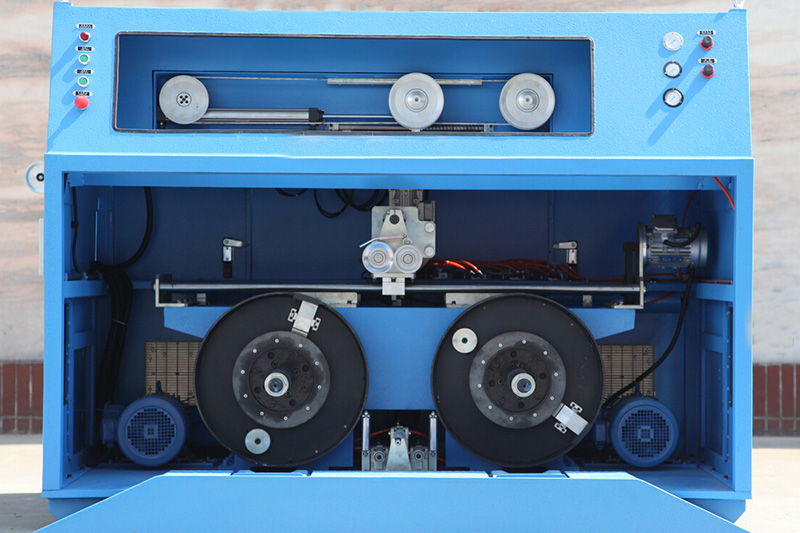

Laying up machine is mainly composed of pay-off racks, stranding cages, die holder, wrapping equipment, steel wrapping device, meter counter, casptan, take-up & traverse rack, transmission system and electrical control system.

2. Specification:

Type

CLY-630/3+3

CLY-1000

CLY-1250

CLY-1600

CLY-2000

Wire cross-section (mm²)

4-16

6-150

30-240

50-300

50-400

Stranding die (MAX) (mm)

Φ40

Φ60

Φ80

Φ100

Φ120

Cage rotation (rpm)

40-95

20-45

13.6-32.1

5.9-14.1

3.3-7.9

Stranding pitch (mm)

47.8-867

94-1550

183-3213

324-5893

462-8127

Taping rotation (rpm)

171-380

Taping pitch (mm)

12-203

11-178

16-256

12-202

10-156

Armoring rotation (rpm)

153-340

Armoring pitch (mm)

14-232

12-207

18-293

14-238

11-179

Capstan wheel (mm)

Φ1250

Φ1600

Φ2000

Φ2500

Capstan line speed (m/min)

4.56-34.7

4.22-30.96

5.9-43.7

4.6-34.8

3.7-26.9

Bobbin in the cage

PN630

PN1000

PN1250

PN1600

PN2000

Central payoff bobbin

PN800-PN1600

None

Take-up bobbin

PN800- PN1600

PN1000- PN2000

PN1250- PN2500

PN1600-PN3150

Main motor (KW)

22 (AC)

30 (AC)

37 (AC)

45 (AC)

55 (AC)
