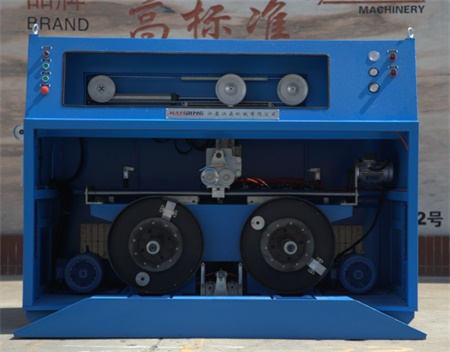

500mm double reel semi-auto change reel take-up machine
1. With one unloading bobbin car, copy Swiss newest type.
2. Semi-auto thimble type double reel take-up, online full speed automatic change reel.
3. Man-made load reel and unload reel
4. Automatically change reel(when A reel is full, A reel will be changed to B reel automatically.)
5. Take-up reel size: Ф500mm×250mm(cylinder diameter)×250mm(inside width)×300mm(outside width)×Ф56mm (shaft diameter)
6. Max designed speed: 800-1000m/min (running speed 800m/min)
7. Conductor diameter: 0.4mm-0.9mm, finished wire diameter: 0.8mm-1.5mm.
8. Take-up reel dynamic equilibrium level: G6.3 (international)
9. Motor: 4KW, frequency motor (or DC control) (Germany siemens)
10. Inverter: Japan YASKAWA
11. Catch wire rate: Above 98%
12. Traverse width: 300mm
13. Traverse pitch: 0.5mm~10mm
14. PLC: Siemens
15. Touch screen: Siemens
