500 mm /12+18+24 rigid frame strander
Jan 19, 2019|
View:560500 mm /12+18+24 rigid frame strander
Application
Rigid frame strander is mainly used for the twisting of copper, aluminum and ACSR, and also suitable for the cabling of the small-section control cables.
Rigid frame stranding machine is mainly composed of fixed pay-off, 6-disc stranders, die holder, double wheels capstan, take-up & traverse rack, transmission system and electrical control system, etc. Rigid frame strander can also add wrapping devices according to customers’ requirements.
Specification
Type | JLK-500 | JLK-630 |
Single wire dia. (mm) | Copper: Φ1.2-Φ5.0 | Copper: Φ1.2-Φ5.0 |
Aluminum: Φ1.5-Φ5.0 | Aluminum: Φ1.5-Φ5.0 | |
Stranding die (Max.) (mm) | Φ45 | Φ45 |
Cage rotation (rpm) | 55.2-155 | 50-163 |
Stranding pitch (mm) | 55-1173 | 49-1212 |
Capstan line speed (m/min) | 8.5-64.7 | 8-61 |
Capstan wheel (mm) | Φ2000 | Φ2000 |
Bobbin in the cage | PND500 | PND630 |
Central payoff bobbin | PN800-PN1600 | |
Take-up bobbin | PN1250-PN2500 | PN1250-PN2500 |
Main motor (KW) | 75 (DC) | 132 (DC) |
Jessie Jiang
Changzhou Cabletec Machinery Co., Ltd.
Email: jessie@chinacabletec.com
Mobile/Wechat/WhatsApp:+86 13815078736
www.chinacabletec.com

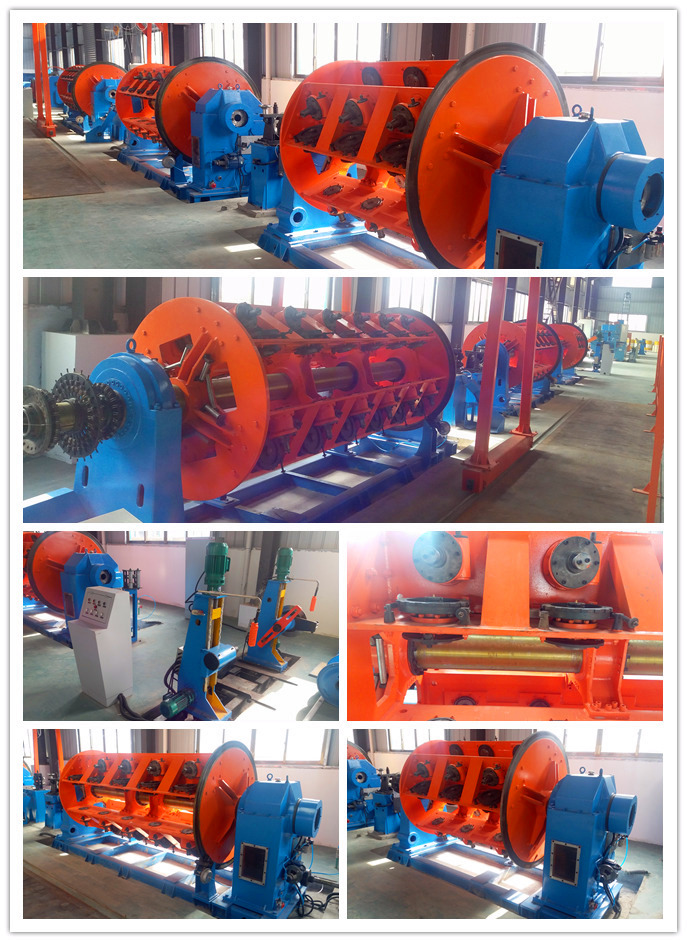

Photos of machine site installation
