CLY 1250 mm & 1600 mm laying up machine site installation
Jan 17, 2019|
View:551CLY 1250 mm & 1600 mm laying up machine site installation
Application
Laying up machine is mainly used for the cabling of power cables or control cables, and the stranded cables may be round or fan-shaped cables.
Laying up machine is mainly composed of pay-off racks, stranding cages, die holder, wrapping equipment, steel wrapping device, meter counter, capstan, take-up & traverse rack, transmission system and electrical control system.
Specification
Type | CLY-630/3+3 | CLY-1000 | CLY-1250 | CLY-1600 | CLY-2000 |
Wire cross-section (mm²) | 4-16 | 6-150 | 30-240 | 50-300 | 50-400 |
Stranding die (MAX) (mm) | Φ40 | Φ60 | Φ80 | Φ100 | Φ120 |
Cage rotation (rpm) | 40-95 | 20-45 | 13.6-32.1 | 5.9-14.1 | 3.3-7.9 |
Stranding pitch (mm) | 47.8-867 | 94-1550 | 183-3213 | 324-5893 | 462-8127 |
Taping rotation (rpm) | 171-380 | ||||
Taping pitch (mm) | 12-203 | 11-178 | 16-256 | 12-202 | 10-156 |
Armoring rotation (rpm) | 153-340 | ||||
Armoring pitch (mm) | 14-232 | 12-207 | 18-293 | 14-238 | 11-179 |
Capstan wheel (mm) | Φ1250 | Φ1600 | Φ2000 | Φ2500 | |
Capstan line speed (m/min) | 4.56-34.7 | 4.22-30.96 | 5.9-43.7 | 4.6-34.8 | 3.7-26.9 |
Bobbin in the cage | PN630 | PN1000 | PN1250 | PN1600 | PN2000 |
Central payoff bobbin | PN800-PN1600 | None | |||
Take-up bobbin | PN800- PN1600 | PN1000- PN2000 | PN1250- PN2500 | PN1600-PN3150 | |
Main motor (KW) | 22 (AC) | 30 (AC) | 37 (AC) | 45 (AC) | 55 (AC) |
Jessie Jiang
Changzhou Cabletec Machinery Co., Ltd.
Email: jessie@chinacabletec.com
Mobile/Wechat/WhatsApp:+86 13815078736
www.chinacabletec.com

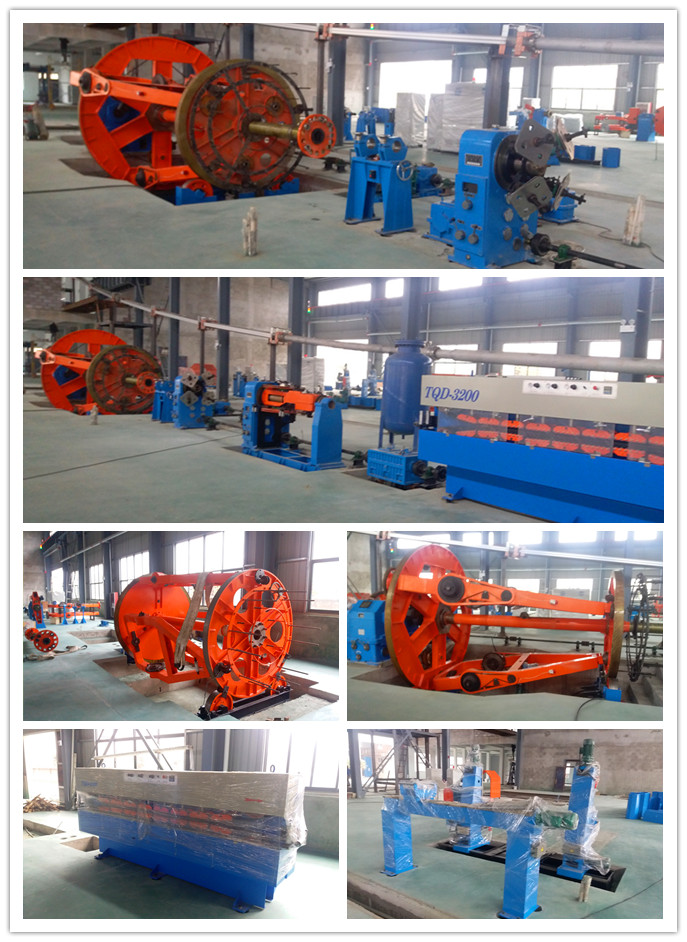

Photos of machine site installation
