YLB Hydraulic Drawing&Straightening Machine
The drawing machine is applicable to the drawing of copper bars, copper rod and other materials via the mold. The well-drawn finished products can achieve the goals of higher accuracy, brighter surface, greater hardness and elasticity and difficult deformation.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The drawing machine is applicable to the drawing of copper bars, copper rod and other materials via the mold. The well-drawn finished products can achieve the goals of higher accuracy, brighter surface, greater hardness and elasticity and difficult deformation.
Structural Features And Configuration
High efficiency and energy saving: Equipped with an advanced hydraulic system, it features low energy consumption and reduced noise, overcoming the drawbacks of traditional chain-type pullers, such as heavy pollution and excessive noise.
High precision and quality: The drawing force and speed are precisely controlled, significantly improving the surface finish and dimensional accuracy of metal profiles.
High degree of automation: Integrating drawing, straightening, fixed-length sawing, and automatic material handling, it reduces manual labor intensity and enhances operational safety.

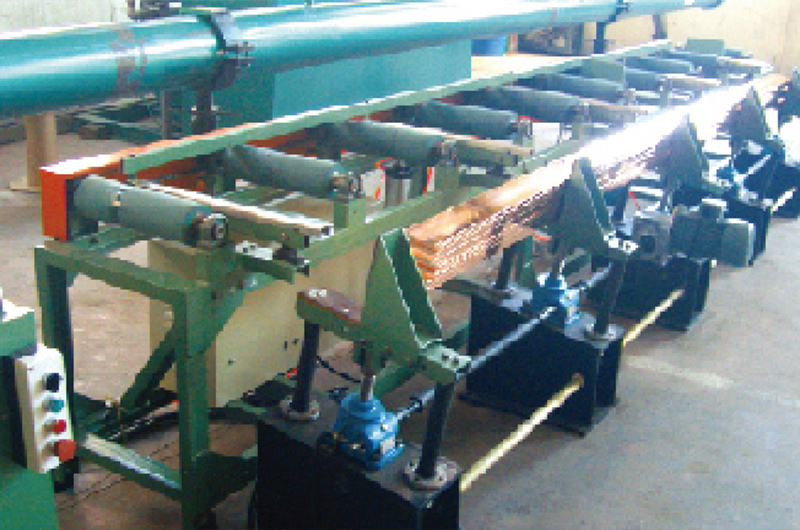

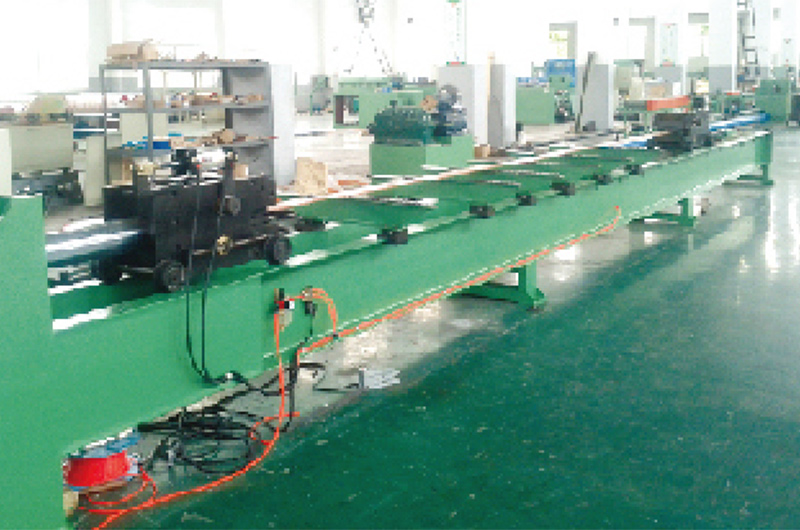

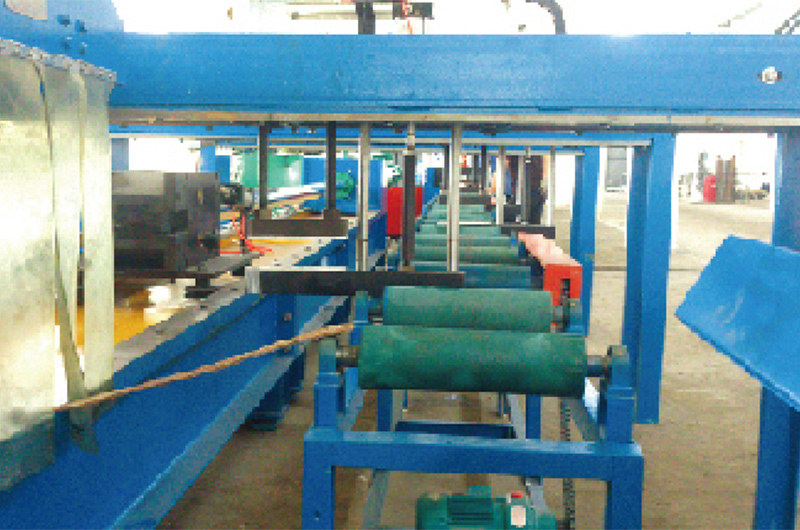

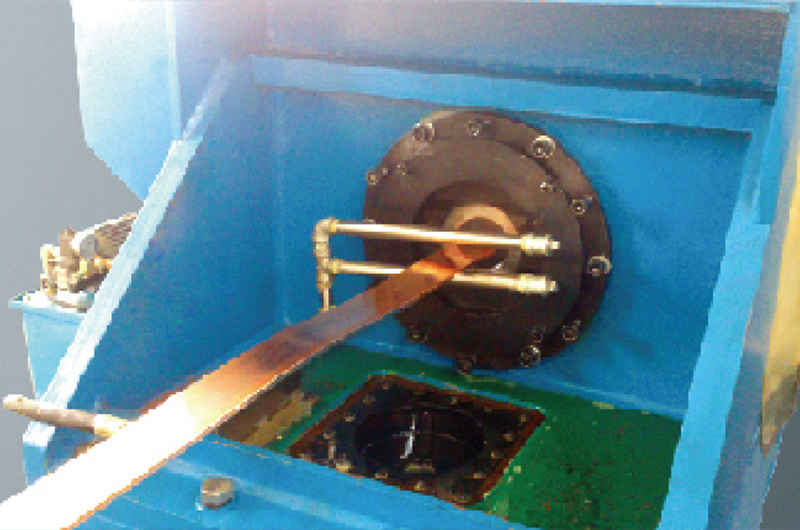

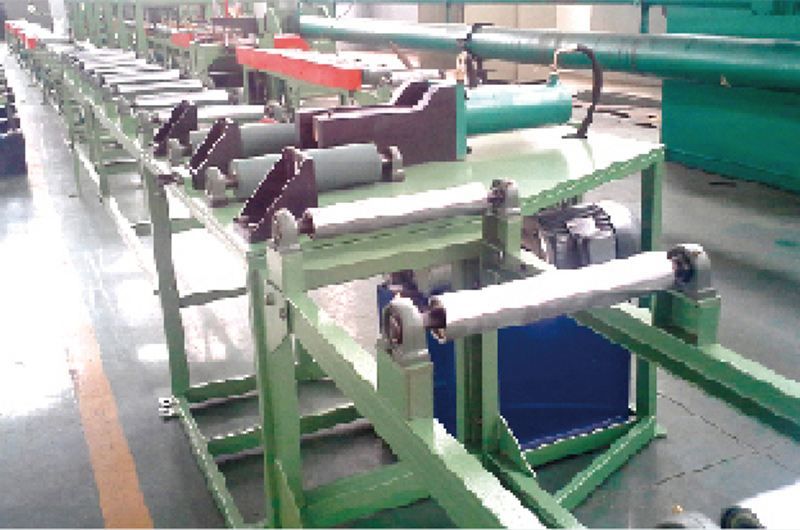

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.

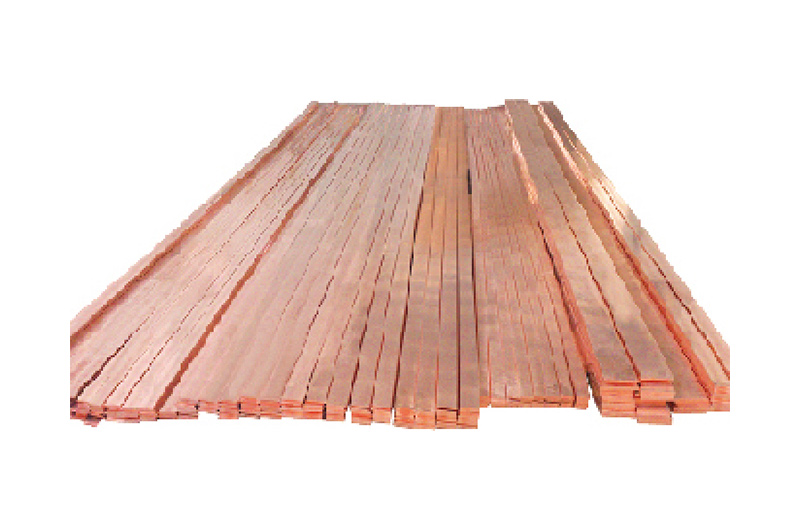

Copper busbars: Producing rectangular bars with precise dimensions for electrical panels.
Technical Specifications
Technical data for the YLB 50, YLB 80, YLB 100 planetary stranding machine models.
| Model | YLB 50 | YLB 80 | YLB 100 |
|---|---|---|---|
| Effective drawing length (m) | 6m/ 8m/ 10m/ 12M | 6m/ 8m/ 10m/ 12M | 6m/ 8m/ 10m/ 12M |
| Nominal drawing force (t) | 50 | 80 | 100 |
| Width (mm) | <170 | < 280 | < 350 |
| Thickness (mm) | 3~30 | 3~30 | 3~30 |
| Drawing speed (m/min) | 1~10 | 1~10 | 1~10 |
| Return speed (m/min) | 10~48 | 10~48 | 10~48 |
| Oil pressure from the hydraulic station (MPa) | 21 | 21 | 21 |
| Power | 75kw/ 75kw/ 88kw/ 90kw | 88kw/ 88kw/ 95kw/ 110kw | 95kw/ 95kw/ 110kw/ 132kw |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
