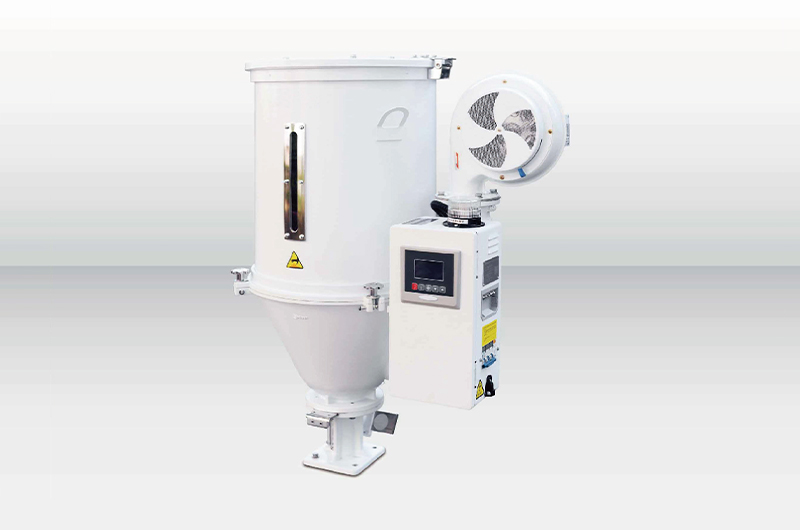

Standard Hopper Dryer - SHD
The device is for loading and drying plastic granule.
- Product Details
- Technical Parameters
- RFQ & FAQ
Product Overview
The device is for loading and drying plastic granule.
Product Images And Drawings
Technical Specifications
Technical data for the 12E, 25E, 50E, 75E, 100E, 150E, 200E, 300E, 400E, 500E, 600E planetary stranding machine models.
| Model (SHD-) | 12E | 25E | 50E | 75E | 100E | 150E | 200E | 300E | 400E | 500E | 600E |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dry electric heating (KW) | 2.2/3* | 3/3.3* | 3.9/4.2* | 4.2/4.8* | 6/6.6* | 6.6/7.2* | 12/15* | 15 | 18 | 19.5 | 21 |
| Fan (KW) | 0.1 | 0.17 | 0.17 | 0.17 | 0.2 | 0.2 | 0.35 | 0.35 | 0.45 | 0.45 | 1.03 |
| Loading (KG) | 12 | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| Net Weight (KG) | 25 | 28 | 31 | 38 | 49 | 52 | 70 | 84 | 115 | 115 | 130 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 3, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
