Single/Double Heads Individual Driven Type Rod Breakdown Machine
This machine is used to draw 1.2-4.5mm copper wires. Tandem cabinet combined mechanism, each wire capstan driven by independent motor. Fully-immersed drawing basin take good wire cooling effect.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
This machine is used to draw 1.2-4.5mm copper wires. Tandem cabinet combined mechanism, each wire capstan driven by independent motor. Fully-immersed drawing basin take good wire cooling effect.
Structural Features And Configuration
Cost saving: Adopting a micro-slip design saves approximately 20% of electrical energy, the power to individual motors that are not needed can be turned off, achieving energy savings of up to 20%, Since the micro-slip design, the service life of dies, capstans, drawing wheels, and drawing lubricant is extended.
Enhance production ability: The rapid dies change system need not change all the dies in working but final one, because of using individual motor drive technology. Flexible adjustment of the elongation ratio of wire dies for production.

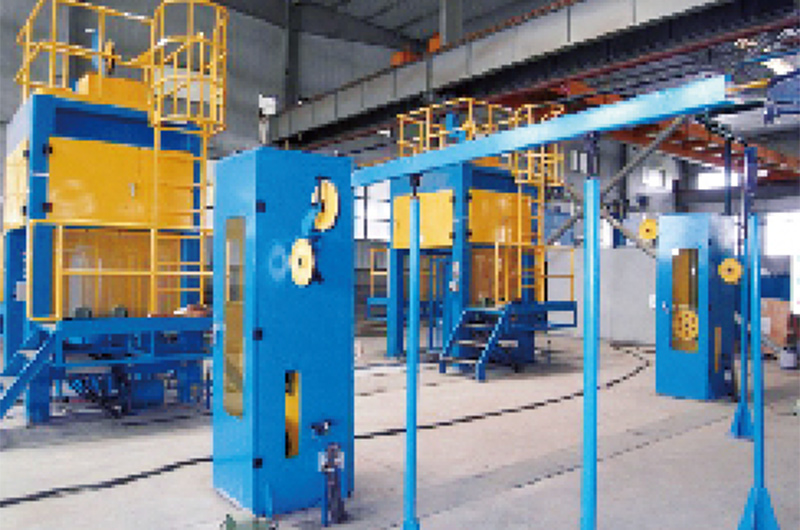

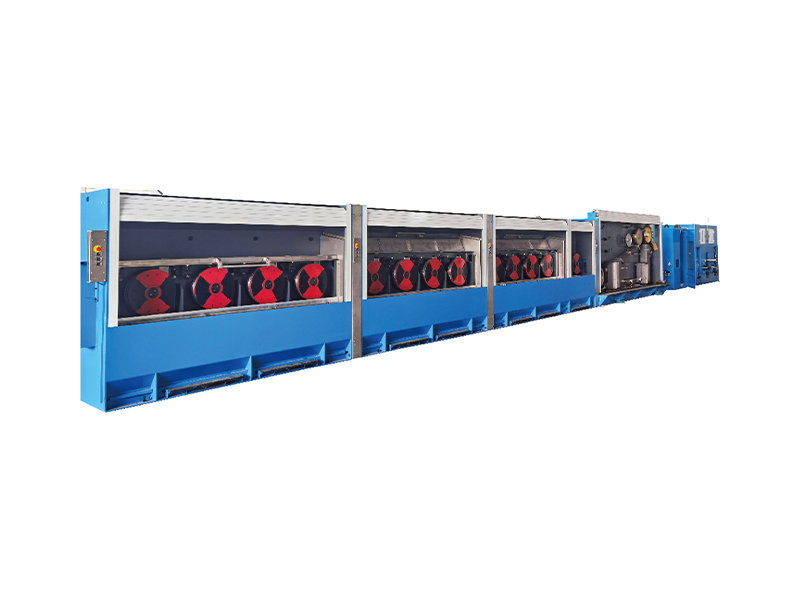

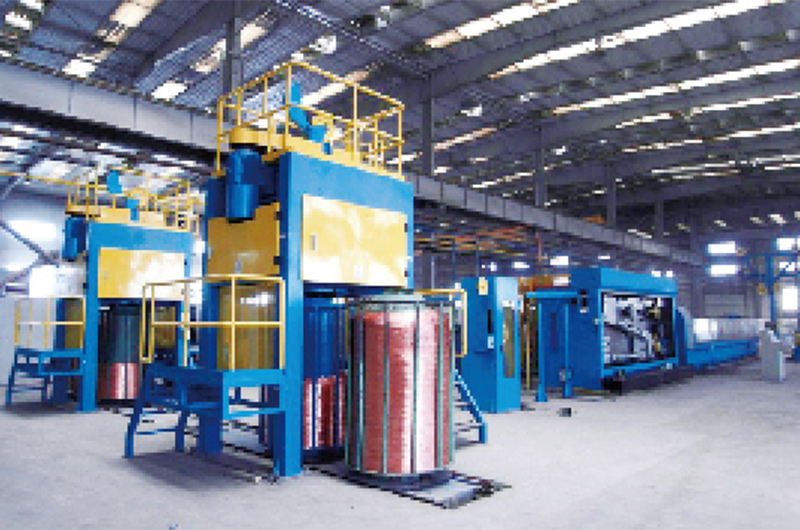

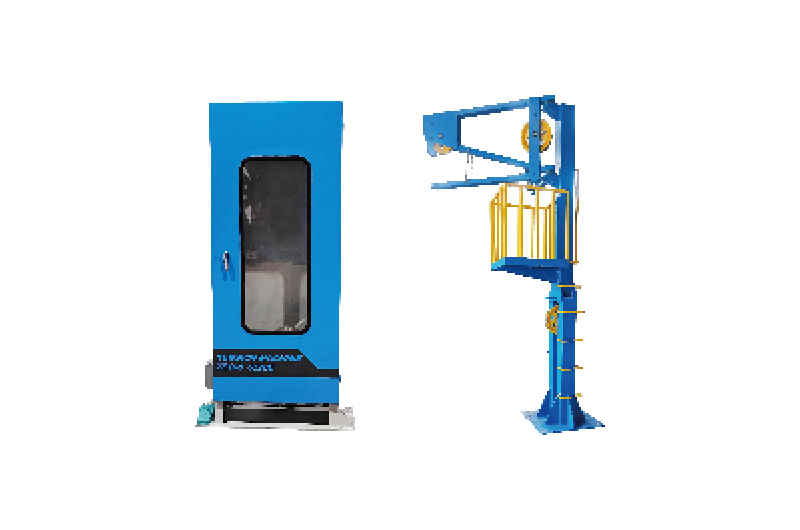

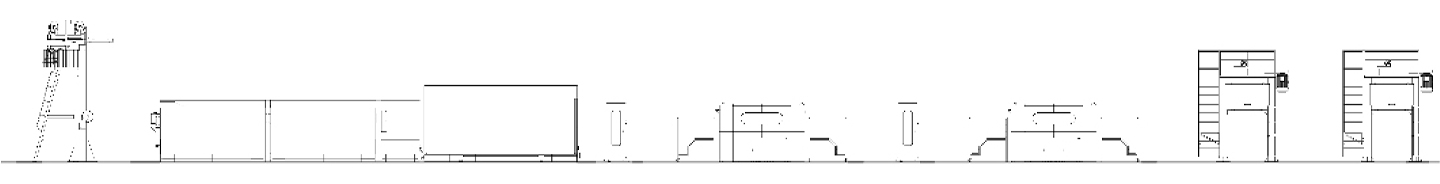

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Power cable conductors: Producing 1.2- 4.5mm wires from 8mm copper rod.
Building wire conductors: Drawing solid conductors for BV/BVR wires.
Technical Specifications
Technical data for the DR450-9, DR450-11, DR450-13, DR450-15, DR450-9/2, DR450-11/2, DR450-13/2, DR450-15/2 planetary stranding machine models.
| Machine type | Inlet Dia. (mm) | No. of wire | Outlet Dia. (mm) | Drawing speed (Max) (m/min) | No. of dies |
|---|---|---|---|---|---|
| DR450-9 | Ø8 | 1 | Ø2.0-Ø3.5 | 1200 | 9 |
| DR450-11 | Ø8 | 1 | Ø1.6-Ø3.5 | 1200 | 11 |
| DR450-13 | Ø8 | 1 | Ø1.2-Ø3.5 | 1500 | 13 |
| DR450-15 | Ø8 | 1 | Ø1.0-Ø3.5 | 1800 | 15 |
| DR450-9/2 | Ø8*2 | 2 | Ø2.0-Ø3.5 | 1200 | 9 |
| DR450-11/2 | Ø8*2 | 2 | Ø1.6-Ø3.5 | 1200 | 11 |
| DR450-13/2 | Ø8*2 | 2 | Ø1.2-Ø3.5 | 1500 | 13 |
| DR450-15/2 | Ø8*2 | 2 | Ø1.0-Ø3.5 | 1800 | 15 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
