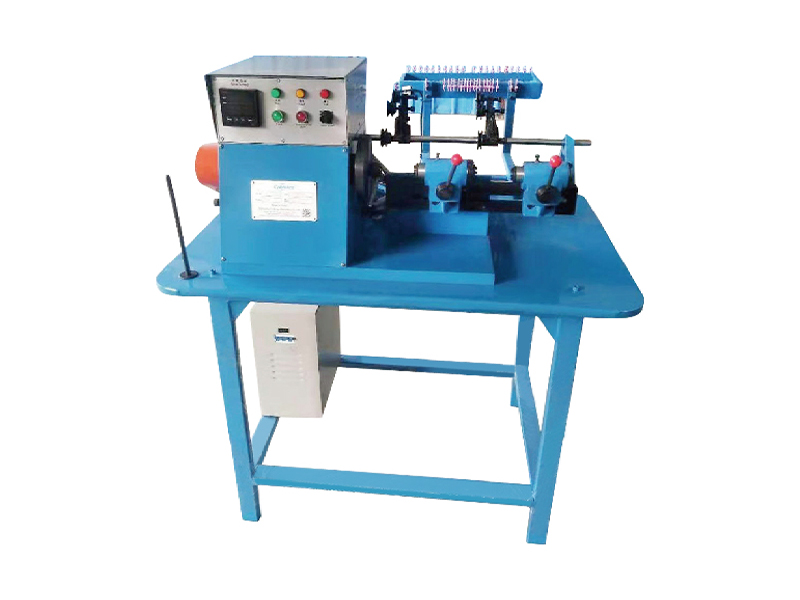

Semi-auto Doubling Winding Machine
This machine is auxiliary equipment for braiding machine. Its purpose is to transfer wire from large supplied bobbins onto the specific small bobbins used in braiding machines.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
This machine is auxiliary equipment for braiding machine. Its purpose is to transfer wire from large supplied bobbins onto the specific small bobbins used in braiding machines.
Structural Features And Configuration

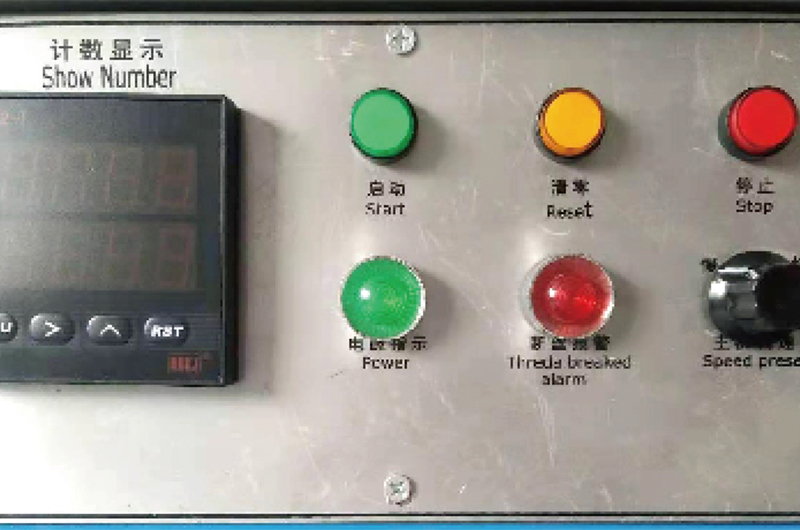

The machine adopts user-friendly control panel with a digital meter counter, control knobs. It is easy to operate and requires minimal training

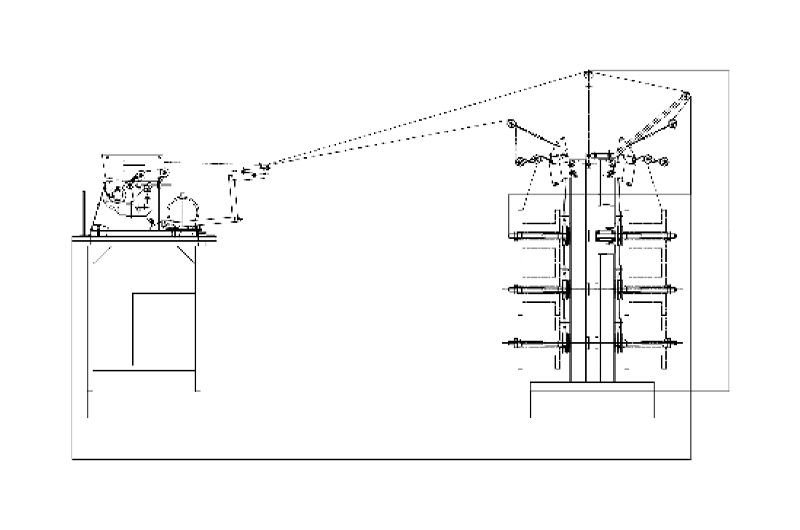

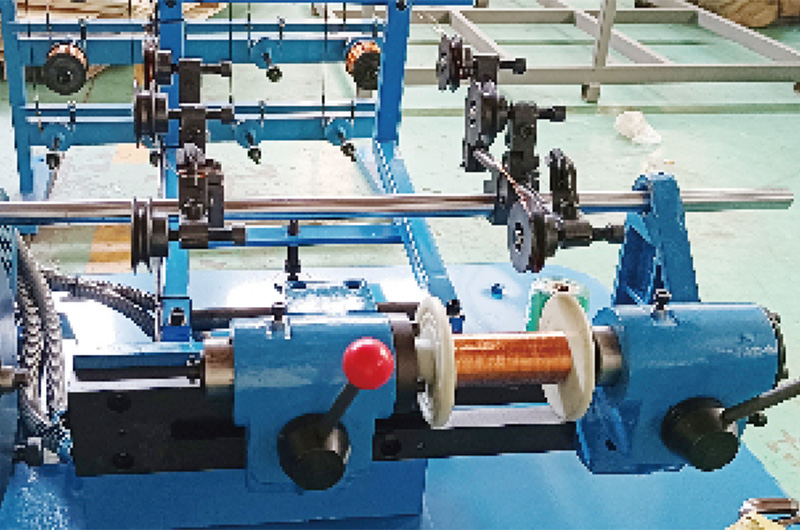

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Network cables: Shielding for CAT6, CAT6A, and CAT7 Ethernet cables.
Coaxial cables: High-density braiding for RG series coaxial cables.
Audio: Advanced shielding for professional AV cables.
Materials: Capable of braiding copper wires, aluminum-magnesium (Al-Mg) alloy wires, and stainless Steel wires.
Technical Specifications
Technical data for the 2A, 2E planetary stranding machine models.
| Bobbin quantity | Rotation speed (r/min) | Wire diameter and quantity | Pitch (mm) | Suitable material | Tension control | Main power (kw) |
|---|---|---|---|---|---|---|
| 2/3/4 | Max. 3200 | 0.08-0.2mm (Qty. 4-8) | 0.2-2 | Copper wire, aluminum-magnesium alloy wire, galvanized wire | Control by pay off tension | 0.75 /1.1/1.5 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
