Semi-Auto Coiling Machine
The machine is for coiling building wire, it is cost-effective and easy operation.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is for coiling building wire, it is cost-effective and easy operation.
Structural Features And Configuration
Dual coiling heads
Adopt wire squeezing wire for traversing
With buttons for easy operation

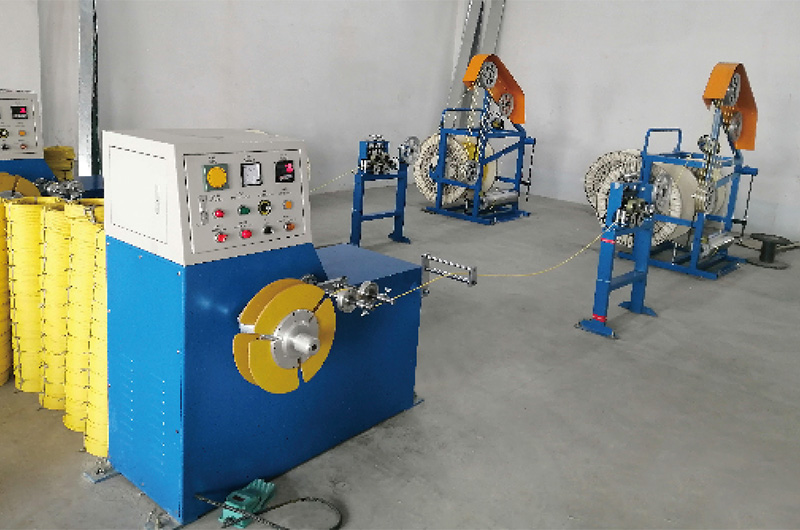

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Building wire
Technical Specifications
Technical data for the Small section, middle section, big section planetary stranding machine models.
| Model | Small Section | Middle Section | Big Section |
|---|---|---|---|
| Wire model | BV, BVR, RV wires, round wire or flat wire | BV, BVR, RV wires, round wire or flat wire | BV, BVR, RV wires, round wire or flat wire |
| Wire range | 0.6-6 mm², <8 mm | 10-90 mm², <16 mm | 10-240 mm², <30 mm |
| Speed | 600 RPM | 300 RPM | 150 RPM |
| Coil ID | 120 mm | 200 mm | 280-360 mm |
| Coil OD | 320 mm | 500 mm | 820 mm |
| Coil Height | 40-100 mm | 70-150 mm | 100-250 mm |
| Traverse method | Polish rod or servo motor | Polish rod or servo motor | Polish rod or servo motor |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
