Paper Taping Machine
The machine is used to wrapping various insulation paper tightly around copper or aluminum conductors. It is particularly specialized in handling rectangular wires, which are the standard for high-efficiency transformer coils.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The machine is used to wrapping various insulation paper tightly around copper or aluminum conductors. It is particularly specialized in handling rectangular wires, which are the standard for high-efficiency transformer coils.
Structural Features And Configuration
The taping machine frame features an integrated welded structure and is precision-machined in a single setup, ensuring high concentricity and smooth, stable operation at high speeds without the resonance issues often found in integrated designs; the machine remains vibration-free even at maximum production speeds. Its flexible design allows customers to add or remove components to adapt the equipment to future development needs.

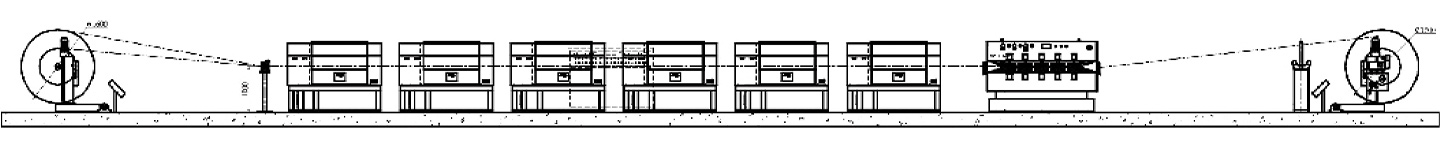

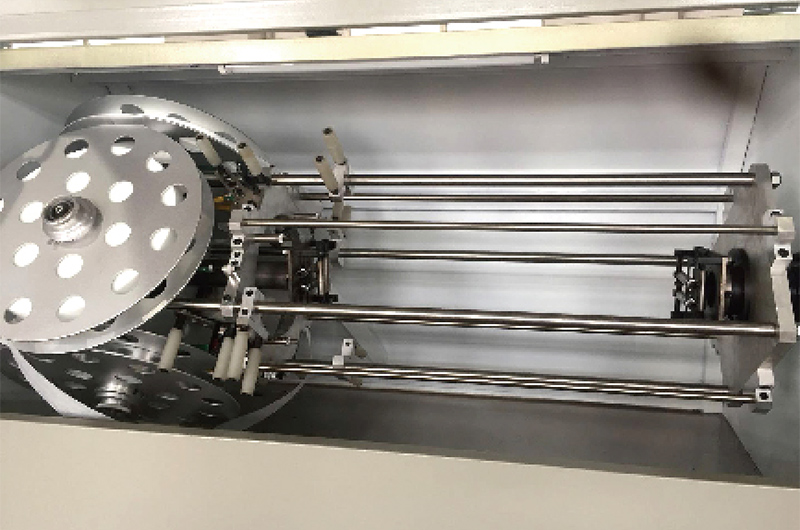

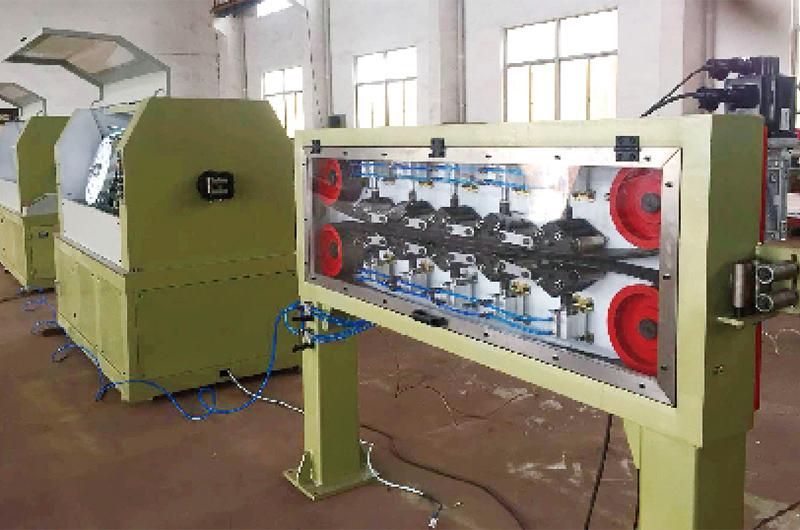

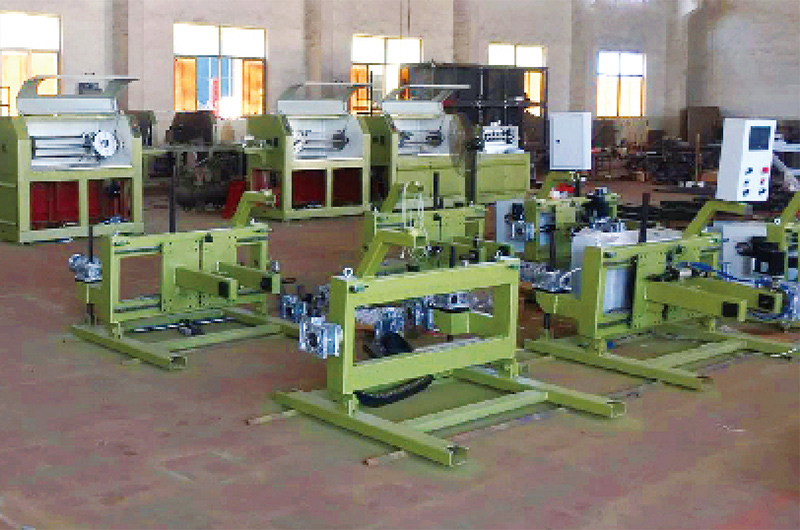

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Paper covered Wire: Producing paper-insulated copper/aluminum wires for transformers.
Rectangular wire: Wrapping rectangular conductors which offer better space factors in windings than round wires.
Multi-layer Insulation: Capable of applying 3, 6, or more layers of paper depending on the number of taping heads configured.
Reactor Windings: Suitable for producing wires used in electrical reactors.
Technical Specifications
Technical data for the Customized planetary stranding machine models.
| Production range (mm²) | 5-80 |
|---|---|
| Conductor dimension (mm) | Thickness: 0.8-6.0, Width: 3.0-25.0 |
| Layers of taping paper | Customer's requirement |
| Taping pitch (mm) | 6-30 (Stepless adjustable) |
| Production line speed (m/min) | 1-15 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
