Mica Tape Wrapping Machine
Copper wire and cable surface central taping. Such as: Mica tape, cotton paper, transparent tape, fire-resistant tape, aluminum foil, pull tape and etc.This machine is essential for manufacturers producing safety-critical cables that must maintain circuit integrity during a fire.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
Copper wire and cable surface central taping. Such as: Mica tape, cotton paper, transparent tape, fire-resistant tape, aluminum foil, pull tape and etc.This machine is essential for manufacturers producing safety-critical cables that must maintain circuit integrity during a fire.
Structural Features And Configuration

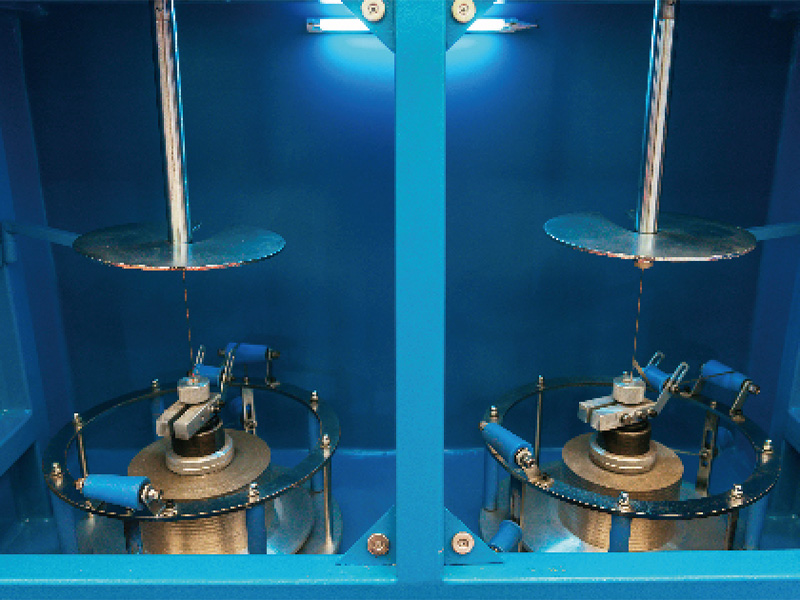

High speed vertical taping heads: Each taping head is driven by an independent 1.5kw motor. The vertical layout allows for high-speed rotation (2500rpm) with minimal vibration. The overlap is adjustable via a continuous variable transmission system, ensuring precision.
Multi-layer capability: You can choose the configuration based on your cable standard:
● 2-Layer; ● 3-Layer; ● 4-Layer

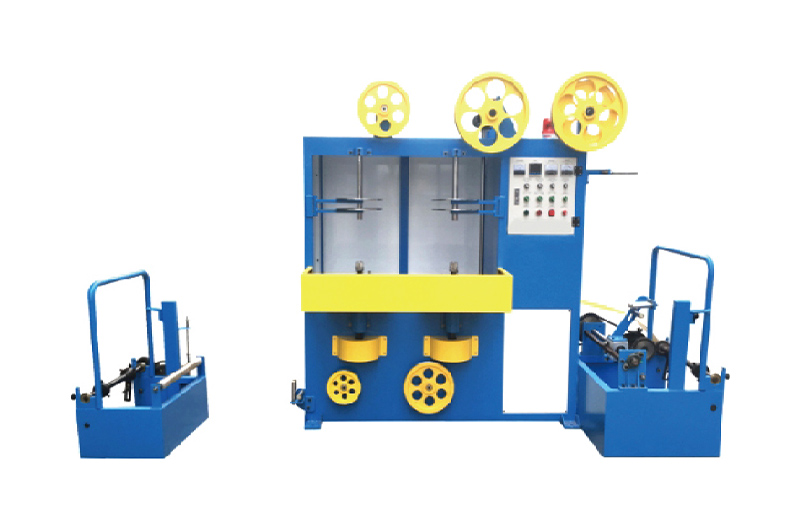

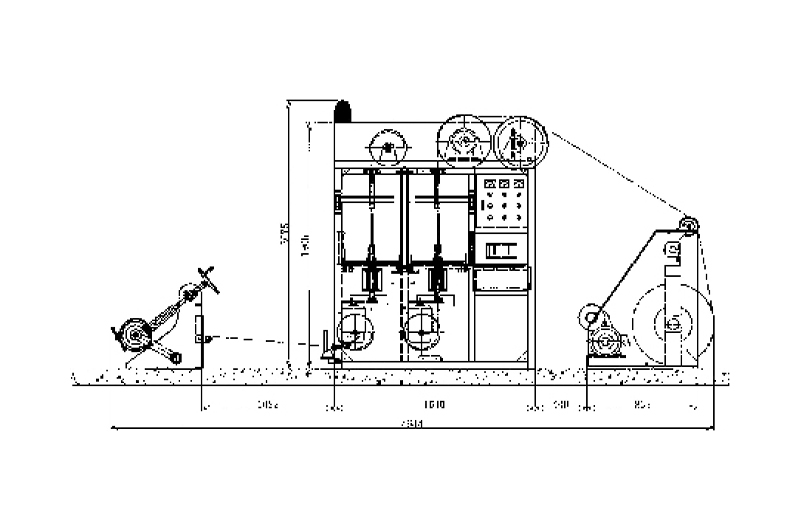

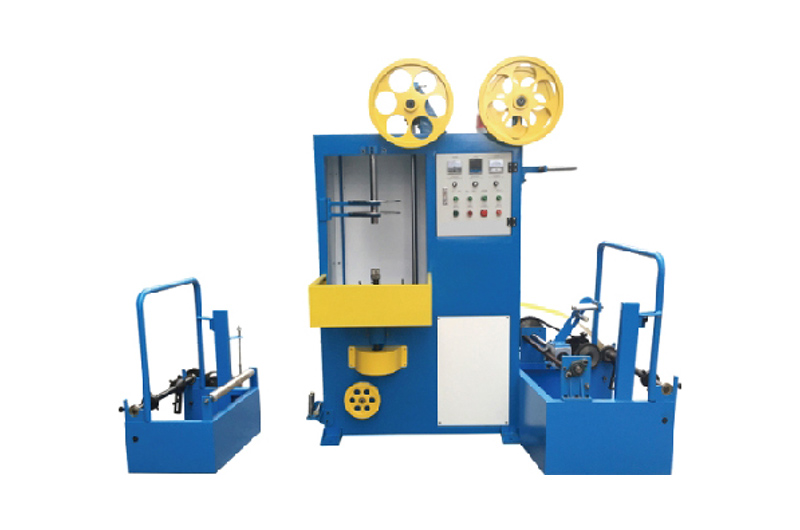

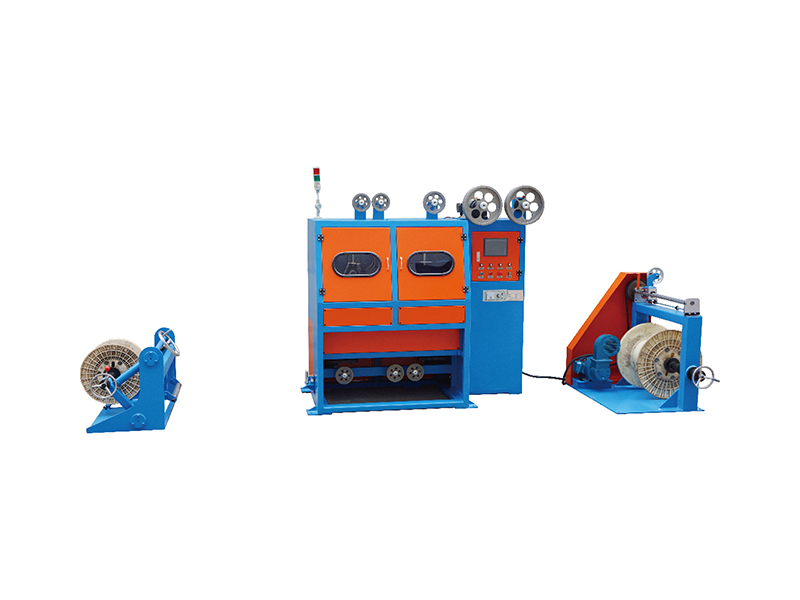

Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
Fire-resistant cables: Wrapping mica tapes around conductors.
Technical Specifications
Technical data for the Single layer, Double layers, Three layers, Four layers planetary stranding machine models.
| Model | Single layer | Double layers | Three layers | Four layers |
|---|---|---|---|---|
| Taping material | Mica tape, Cotton paper, zona pellucida, fire-proof paper, aluminum foil, drawing tape etc. | |||
| Taping pitch | Continuous variable transmission adjustment | |||
| Wire diameter | Ø0.6-Ø10 | |||
| Tape plate | Ø250-300, inner hole 56 or 76 | |||
| Motor power | 1.5kw motor for each layer taping machine | |||
| Taping speed | 2500 | |||
| Take up | Torque motor | |||
| Pay off and take up | It is depend on customer's requirement | |||
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 5, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
