Manual Centering Monolayer Square Crosshead (Inner Heating)

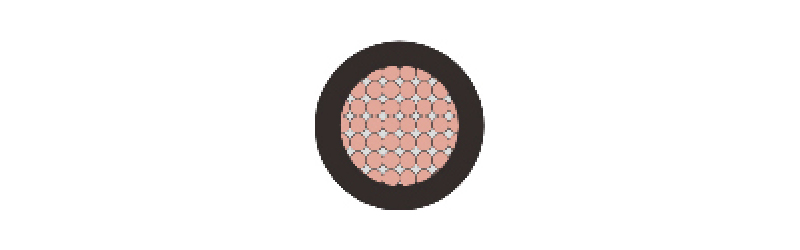

The device is used for extruding wire and cabling with set diameter.
- Product Details
- Applications
- Technical Parameters
- RFQ & FAQ
Product Overview
The device is used for extruding wire and cabling with set diameter.
Product Images And Drawings
Applications And Process Scope
Designed to support a wide range of wire and cable processing requirements with flexible drive and tension configurations.
PVC, PE wire and cable
XLPE, MDPE, HDPE wire and cable
HFFR wire and cable
Silicone rubber cable
Nylon wire
PV wire
Fluoroplastics wire
Technical Specifications
Technical data for the Customized planetary stranding machine models.
| Model | Cable dia. (mm) (after extrusion) |
|---|---|
| XX-1L-10 | Ø0.7-Ø10.0 |
| XX-1L-20 | Ø2.0-Ø20.0 |
| XX-1L-30 | Ø5.0-Ø30.0 |
| XX-1L-40 | Ø10.0-Ø40.0 |
| XX-1L-60 | Ø15.0-Ø60.0 |
| XX-1L-80 | Ø20.0-Ø80.0 |
| XX-1L-100 | Ø30.0-Ø100.0 |
| XX-1L-120 | Ø40.0-Ø120.0 |
| XX-1L-140 | Ø50.0-Ø140.0 |
| XX-1L-160 | Ø60.0-Ø160.0 |
| XX-1L-180 | Ø70.0-Ø180.0 |
Frequently Asked Questions
Find answers to common questions about product selection, configuration and technical requirements.
Information required for quotation?
Intended product; material and input/output diameter; wire quantity, finished diameter, and required pitch; required speed; electrical supply and floor space.
How should the correct model be selected?
Match the required parameters to Section 4, then confirm the final configuration in a product-specific technical agreement.
Are optional or customized configurations included?
Only changes and optional devices expressly listed in the final technical proposal and supply scope are included.
Which values govern the final purchase?
Catalog data are transcribed from the supplied source; the signed technical agreement governs the final scope and values.
