LSG Series Wires and Cables Laser Diameter Gauge
The device is for testing wire and cable diameter after insulating or sheathing.
- Product Details
- Technical Parameters
- RFQ & FAQ
Product Overview
The device is for testing wire and cable diameter after insulating or sheathing.

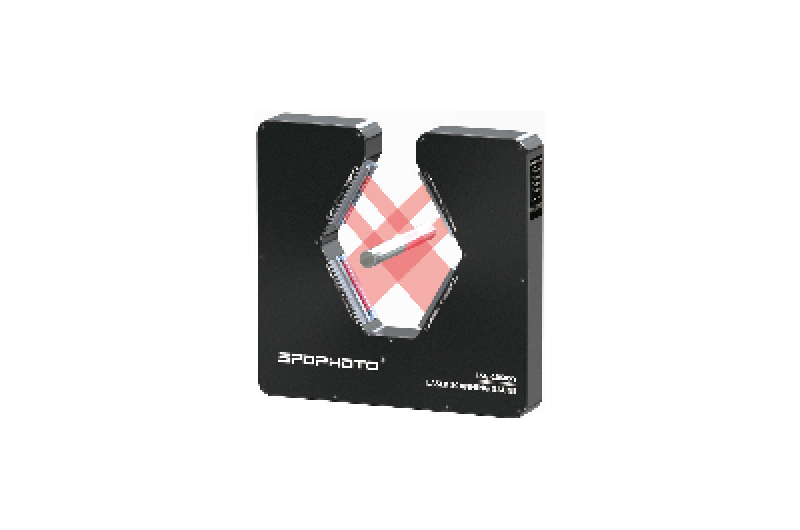

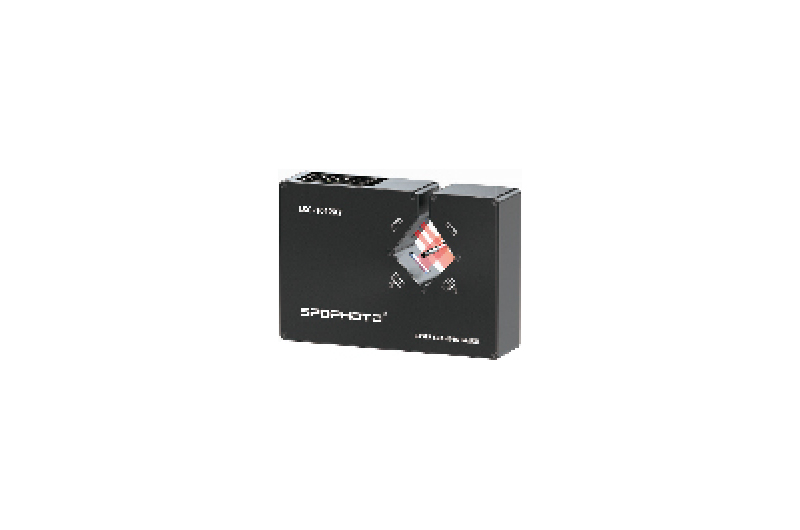

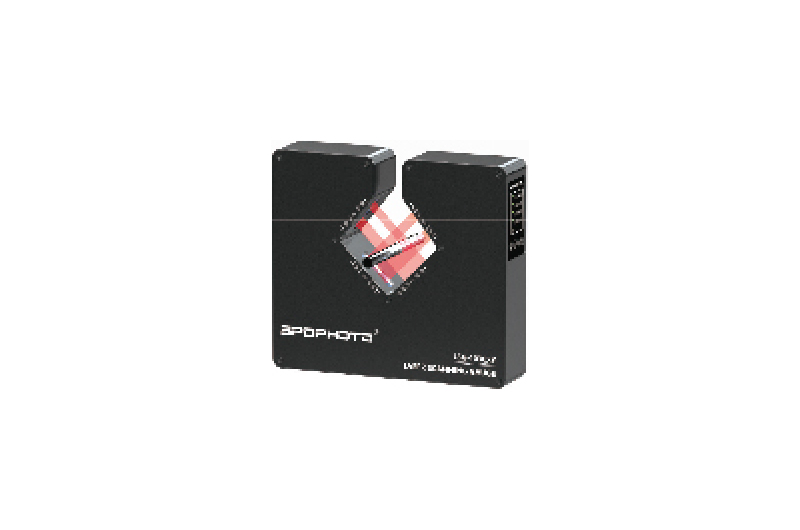

Product Images And Drawings
Technical Specifications
Technical data for the LSH-1012XY (F), LSG-1030XY (F), LSG-1060XY planetary stranding machine models.
| Model | LSH-1012XY (F) | LSG-1030XY (F) | LSG-1060XY |
|---|---|---|---|
| Number of axes | 2 | 2 | 2 |
| Measuring range | 0.1-12mm | 0.1-30mm | 0.5-65mm |
| Resolution | 0.01-100 μm (optional) | 0.01-100 μm (optional) | 0.01-100 μm (optional) |
| Accuracy | ±0.3 μm±0.01%*D | ±0.5 μm±0.01%*D | ±1 μm±0.01%*D |
| Repeatability | ±0.2 μm±0.005% D | ±0.3 μm±0.005%*D | ±0.3 μm±0.005%*D |
| Scanning frequency | 1600Hz (single axes: 800 Hz) (Optional high speed: 4800 Hz (Single axes: 2400 Hz) | ||
| Alarm output | 24V, 1A (Contact load) | ||
| Communication | RS-485/MODBUS | ||
| PI control | Optional | ||
| Power supply | DC 24V, 2A | ||
| Probe size | 230*159*55 (mm) | 260*232*55 (mm) | 385*374*56 (mm) |
